21

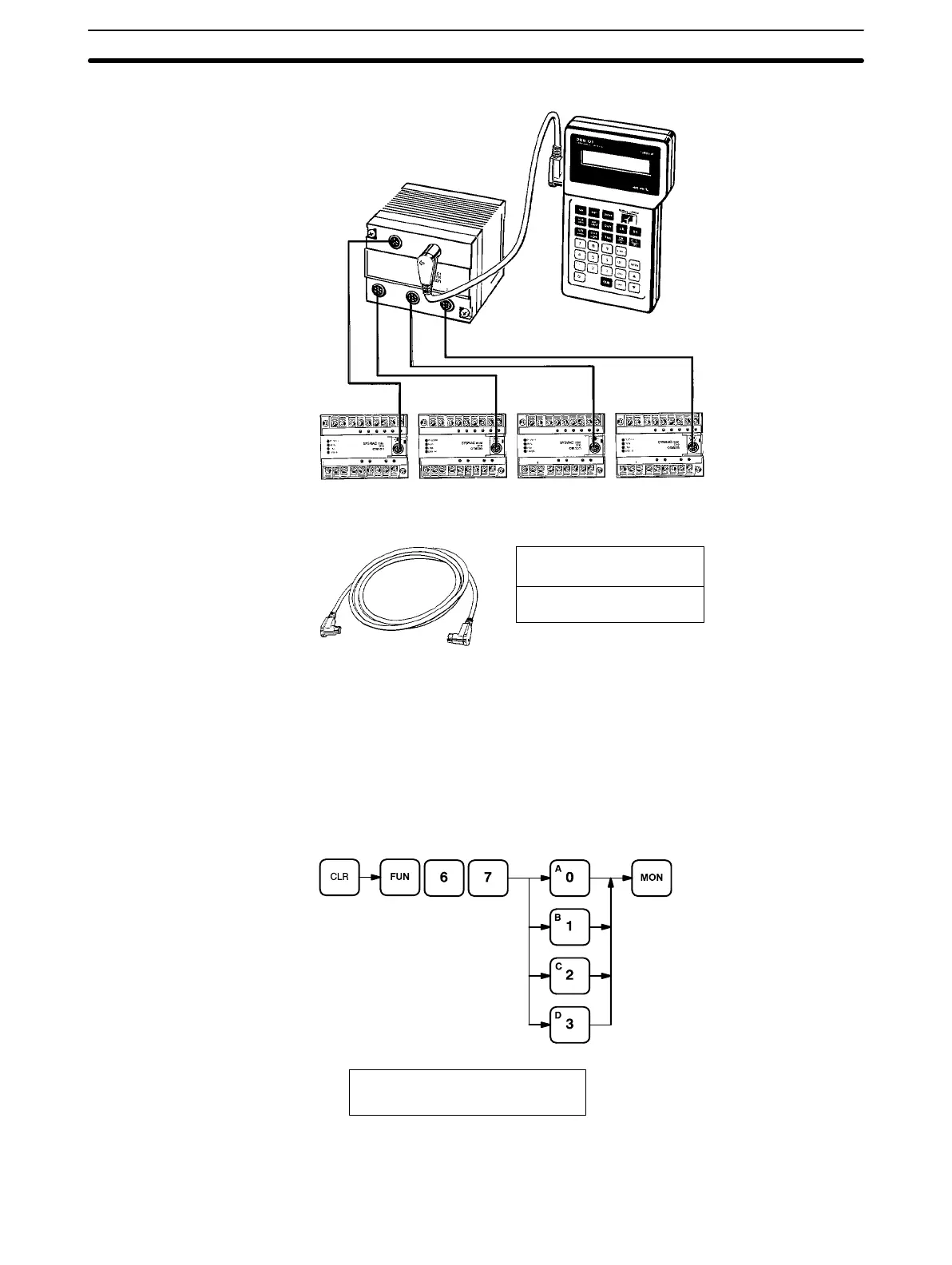

Connection to a Link Adaptor
SP10-AL001
Link Adaptor
SP10-CN__1 Connecting Cables
SP10-PRO01-V1
Programming
Console
SP__ #0 SP__ #1 SP__ #2 SP__ #3
Connecting Cable Use one of the following Connecting Cables to connect the Programming Console.
SP10-CN221 (2 m)
SP10-CN421 (4 m)
Note The sum of the cable lengths between Unit #0 and the Link Adapter and be-
tween the Link Adapter and the Programming Console must be 4.2 m maxi-
mum.
2-4-1 Designating the PC
Any of the PCs connected in a PC Link may be accessed through the Link
Adapter using the Programming Console. Use the following key sequence to
specify the number of the desired PC. The PC can be designated in either
PROGRAM or RUN mode.
AB
0 PC 0Ć3?
PC ?
A
The PC’s operation or operation mode is not affected by changing the PC
designation. When the mode switch of the Programming Console and the
Programming Console Section 2-4
