Whenever possible, use wiring conduit to hold the I/O wiring. Standard wiring
conduit should be used, and it should be long enough to completely contain
the I/O wiring and keep it separated from other cables.
2-2-4 Mounting Requirements
The system consists of from one to four CPUs and, if more than one CPU is
used, a Link Adapter. The Units may be mounted horizontally or vertically, as
desired. Do not mount a Unit on its side. The Unit should be mounted with
the printing on the front panel oriented as it would normally be read. The PC
can be mounted using DIN Track or mounted directly to any sturdy support
meeting the environmental specifications listed in Appendix B Specifications.
Track Mounting The PC may be mounted using DIN Track if desired. Use DIN Track 35 mm
wide. There is a groove on the back of the Unit that is used to attach it to the
DIN Track. When mounting to DIN Track, be sure to remove the mounting
screws.

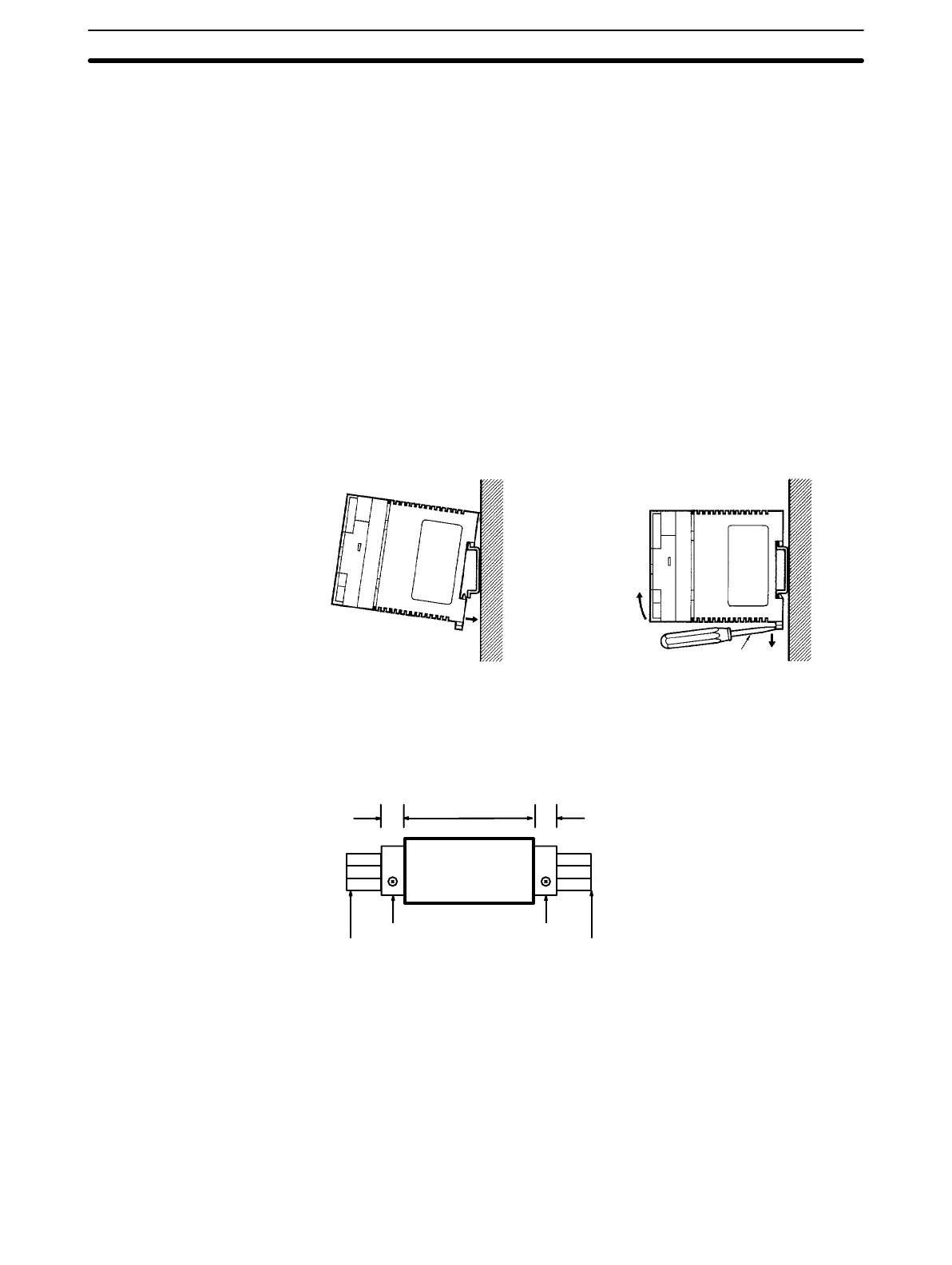

RemovalMounting
Screwdriver
Engage the top hook to the
track and push the PC in until
the bottom hook locks onto the
track.
Push down the bottom hook
with a screwdriver and push
the PC upward.
Attach an End Plate to the left and right sides of the Unit to hold it in place.
SP-series PC
1010
PFP-M End Plate
DIN Track DIN Track
PFP-M End Plate
DIN Track
PFP-100N (1 m)
PFP-50N (0.5m)
PFP-100N2 (1 m)
Note Remove the mounting screws when mounting on a track.
2-3 Wiring
Note Do not wire the terminal marked “NC.”
2-3-1 Power Supply
Use independent power sources for the inputs, the output loads, and the PC.
Voltage fluctuations caused by current surges to motors may affect operation
of the PC. When using more than one PC, use a separate power supply for
Wiring Section 2-3
