Omron SYSMAC NX series Startup Guide

21
3
Click the Transfer to Unit Button.
The settings are transferred from the Sysmac Studio to the NX Unit.

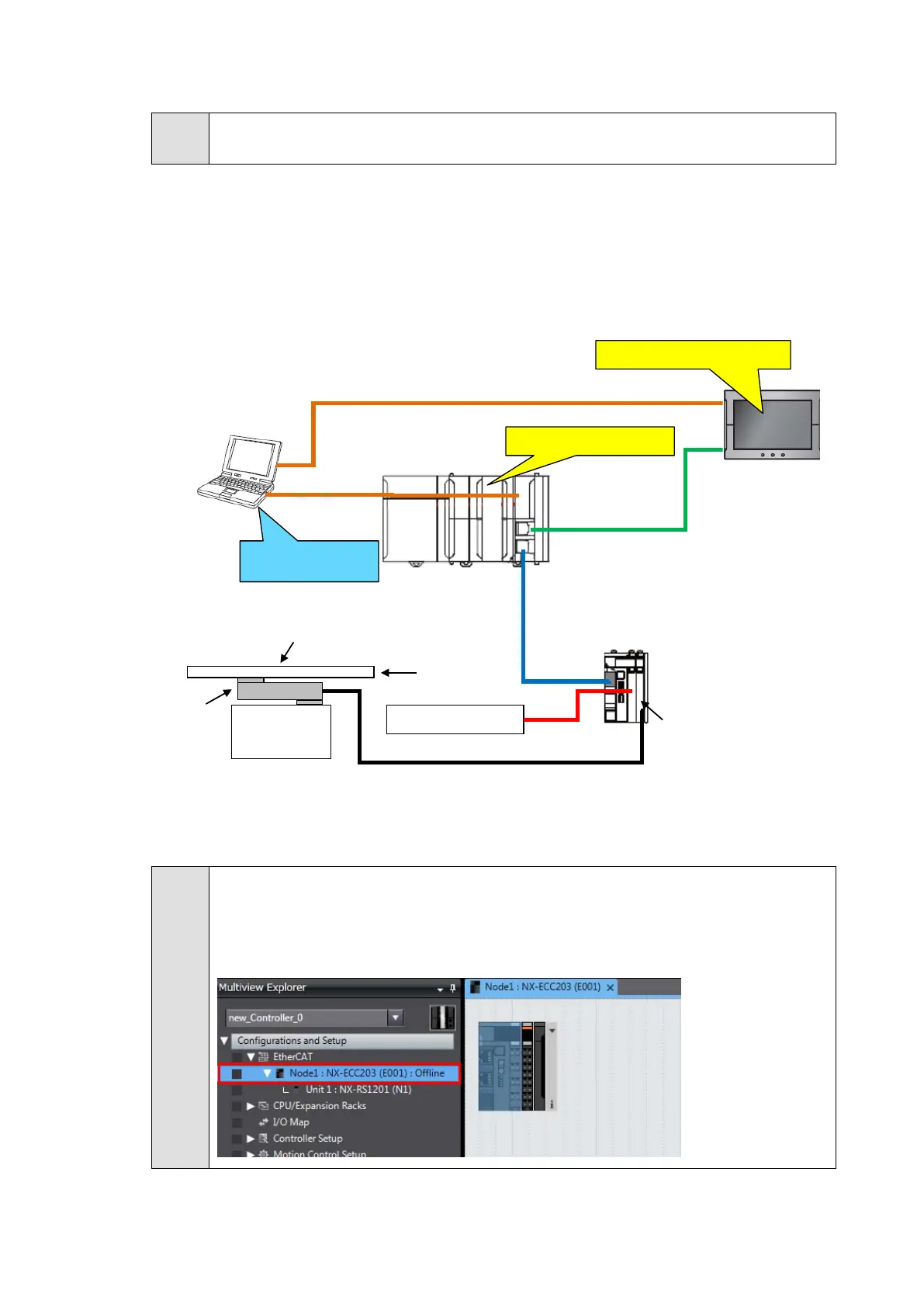

● Performing a Zero Calibration
This section describes how to perform zero calibration.
Before zero calibration, make a state where only a scale is placed on the load cell.
Performing zero calibration with only a scale placed on the load cell yields a gross weight
value of 0 for this state.
NX-series
Load Cell Input Unit
(NX-RS1201)
Shielded cable
Unit power supply
Personal computer
(Sysmac Studio
already installed）
Gross weight value = 0
Zero calibration !
Display value = 0 kg
Scale
Load cell
Only a scale is placed on the load
cell.
The steps to perform zero calibration with the Sysmac Studio are as follows.
1
With the Sysmac Studio and the CPU Unit being online, double-click the
Communications Coupler Unit to which your Load Cell Input Unit is connected in the
Multiview Explorer to open the Edit Slave Terminal Configuration Tab Page.
The following tab page is displayed.
