Medium & Heavy Payload Series-Hardware Installation Manual TM12/14 Series Hardware Version: 3.2 61

5.4.3 Connecting Tool End Digital Input

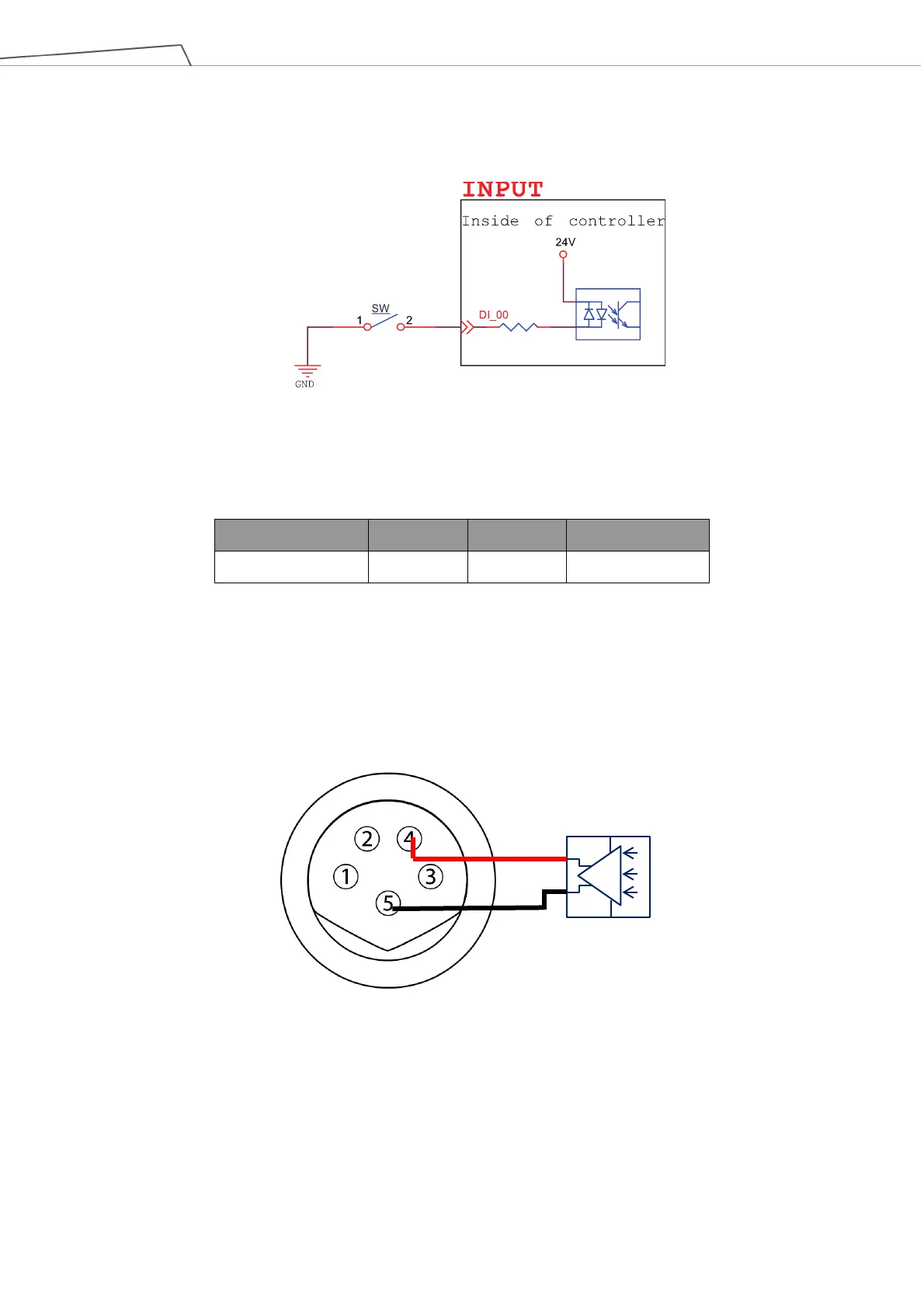

The following figure shows how to connect the tool end digital input:

NOTE: If sensors are connected directly then they should be NPN.

Figure 56: Connecting Tool End Digital Input

5.4.4 Connecting Tool End Analog Input

Range Resolution Accuracy Conversion Time

+10.00V~-10.00V 11bit ≤ 0.2% 1 ms

Table 16: Analog Input Range

The following figure shows how to connect the tool end Analog input:

(Because AIN_GND is connected to ground, when AIN is a dead contact, a pressure difference will occur,

which is a normal phenomenon.)

Figure 57: Connecting Tool End Analog Input
