No.17S010-01
22/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide

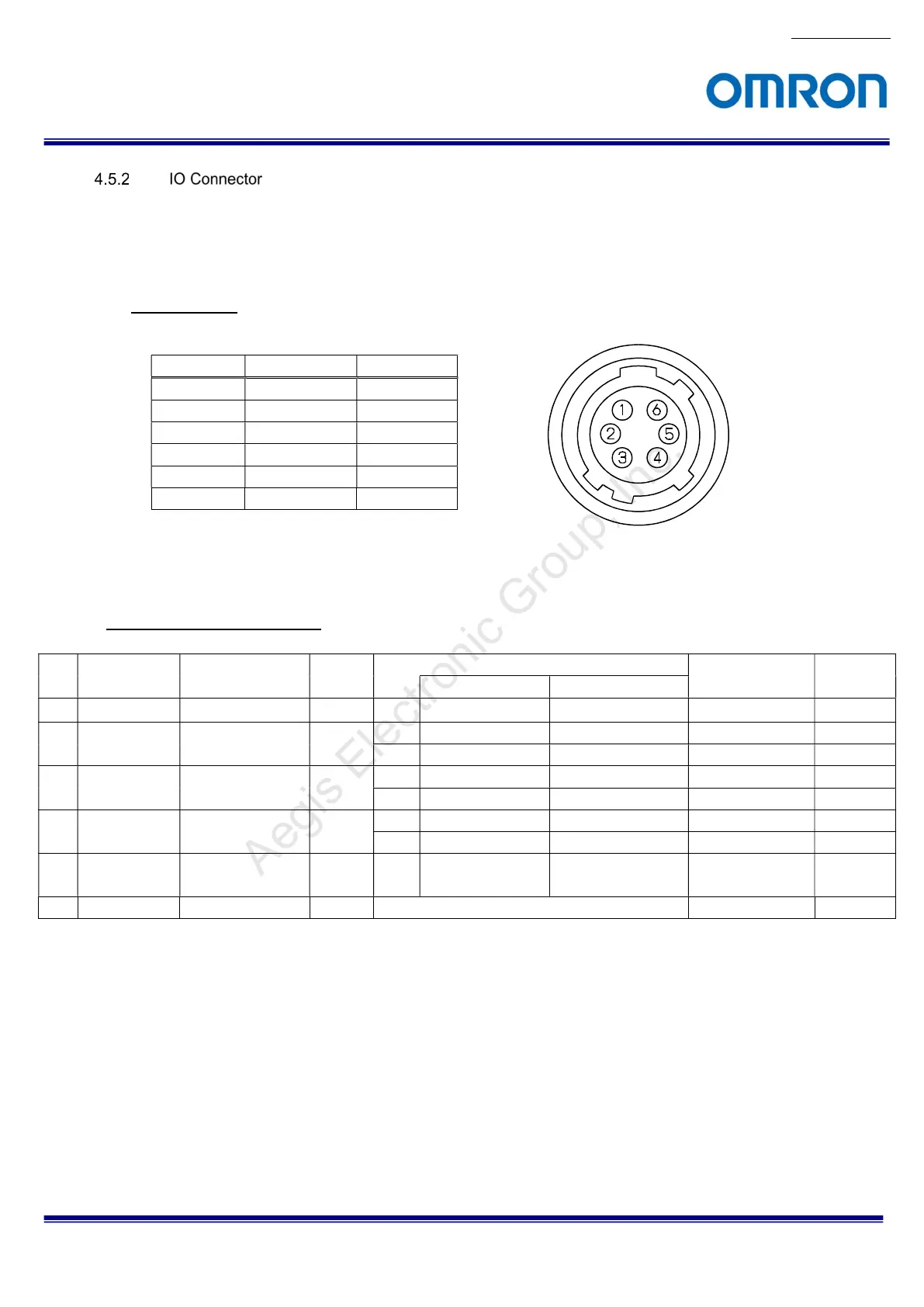

HR10A-7R-6PB (Hirose) or equivalent.
This connector is for input and output signals.
Please use HR10A-7P-6S (Hirose) or equivalent connector for cable.
Pin assignment
* Possible Maximum Rated Voltage is +24 V on CAM_RESET, GPIO0, GPIO1 and GPIO2.
* Please set “OPEN” electrically on N.C. (Pin 6).
Input Output DC characteristics
Pin
No.
Signal Name
Function IN/OUT
Voltage Current Reference
Low Voltage High Voltage
1 IO_GND GND - - -
2 GPIO2 General Purpose
Input Output
IN/OUT
IN Less than +1.00 V
+3.00 to +24 V 4 µA (typ.) (*4) 2
OUT
0 to +2.20V (*1) +3.00 to +24 V (*2)
15 mA (Max.) (*3)
3,4
3 GPIO1 General Purpose
Input Output
IN/OUT
IN Less than +1.00 V
+3.00 to +24 V 4 µA (typ.) (*4) 2
OUT
0 to +2.20 V (*1)
+3.00 to +24 V (*2)
15 mA (Max.) (*3)
3,4
4 GPIO0 General Purpose
Input Output
IN/OUT
IN Less than +1.00 V
+3.00 to +24 V 4 µA (typ.) (*4) 2
OUT
0 to +2.20 V (*1)
+3.00 to +24 V (*2)
15 mA (Max.) (*3)
3,4
5 CAM_RESET
Camera
Hardware Reset
IN IN Less than +0.80 V
+3.00 to +24 V 4 µA (typ.)(*4) 1
6 N.C. NC - - - -
(*1) The case that output low voltage on 15mA load. The output voltage could be higher voltage due to the generate
voltage by the internal resister when the power consumption is large with low voltage output. Please evaluate
carefully with the actual system.
(*2) The maximum voltage can be applied to connecting IO port as output IO port when external circuits connecting to IO
port. This is equivalent to VCCext on Reference 4.
(*3) When external IO port is connected, control the currency less than 15mA on IO port. Please do not apply more than
15 mA to connecting IO port as output IO port when external circuits connecting to IO port.
(*4) The typical current value when high voltage input into Input port.
Pin No. Signal Name
IN/OUT
1 GPIO_GND -
2 GPIO2 IN/OUT
3 GPIO1 IN/OUT
4 GPIO0 IN/OUT
5 CAM_RESET
IN
6 N.C. -
