No.17S010-01
23/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide
Default Setting of Input / Output

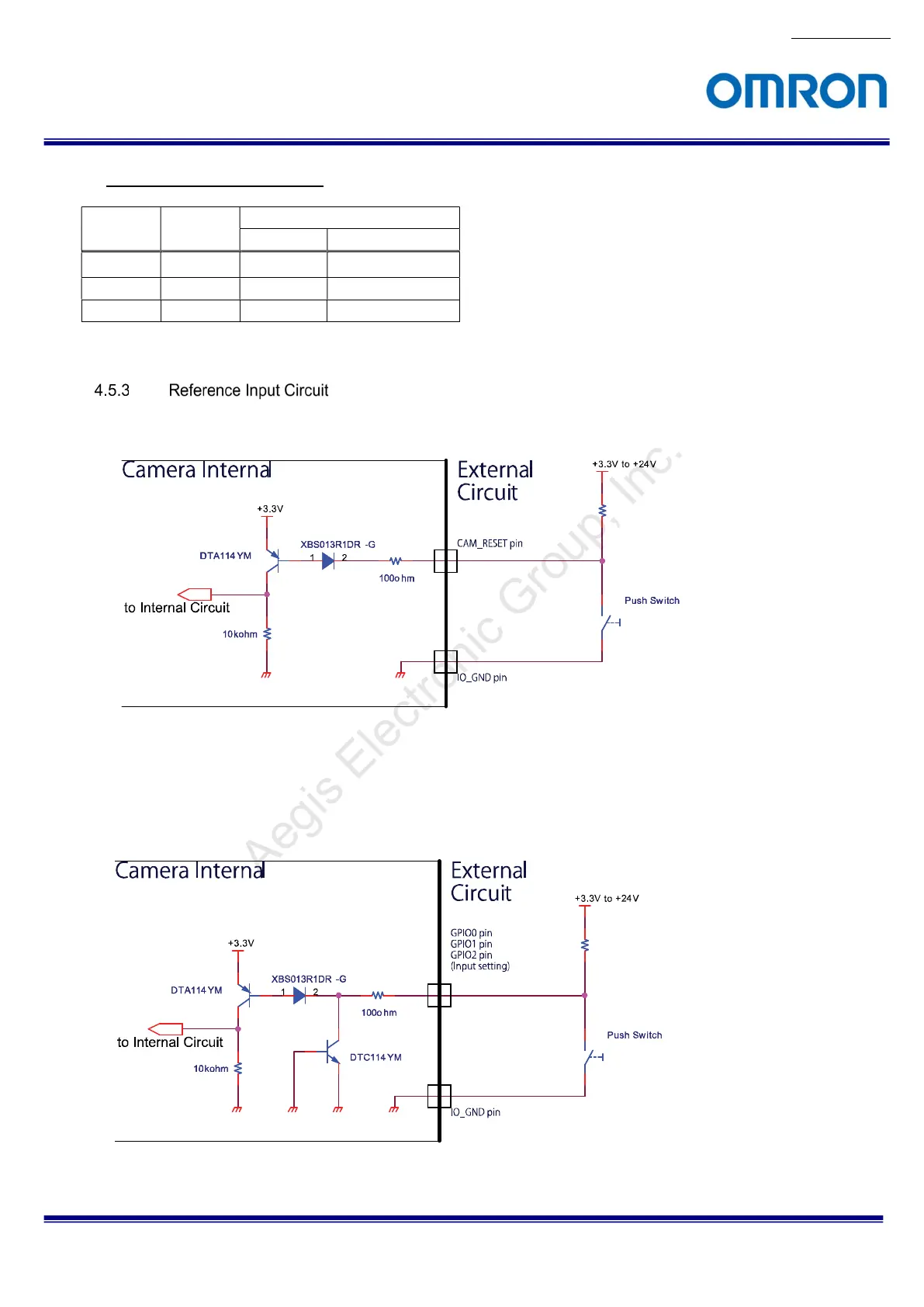

CAM_RESET (Reference 1)
The camera resets while “CAM_REST pin” connecting to GND 5 seconds in this circuit.
The default camera setting is disable for this reset function. It is necessary to turn ON.
General Purpose Input (Reference 2)
Pin No.
Signal
Name
Default
IN/OUT Setting
2 GPIO2 IN Disable
3 GPIO1 IN Disable
4 GPIO0 IN Disable
