STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide
Input Response Characteristics

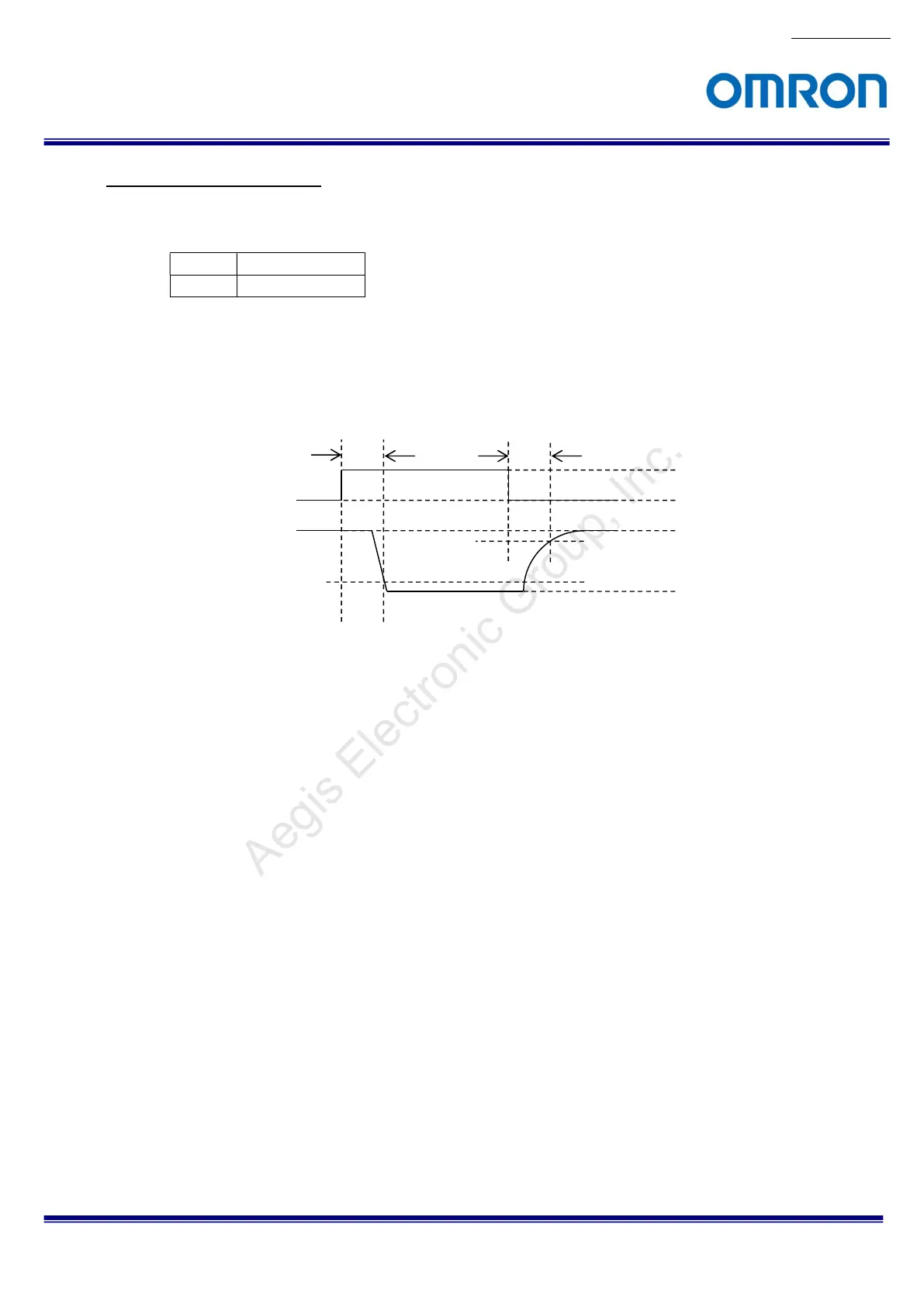

The response characteristics of CAM_RESET (Reference1), General Purpose Input (Reference 2) are shown in
the following diagrams
The capable input trigger’s pulse width is
Positive Trigger: More than tIPDLH
Negative Trigger: More than tIPDHL
USER INPUT
カメラ内部
tIPDLH
tIPDHL
入力電圧 High
0V
内部電圧
IO_GND
10%
90%
0.13 µseconds
tIPDLH
6.54 µseconds
Internal Voltage (+3.3V)
0V
Internal Voltage
IO_GND
USER_INPUT
Camera internal
