No.17S010-01
31/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide

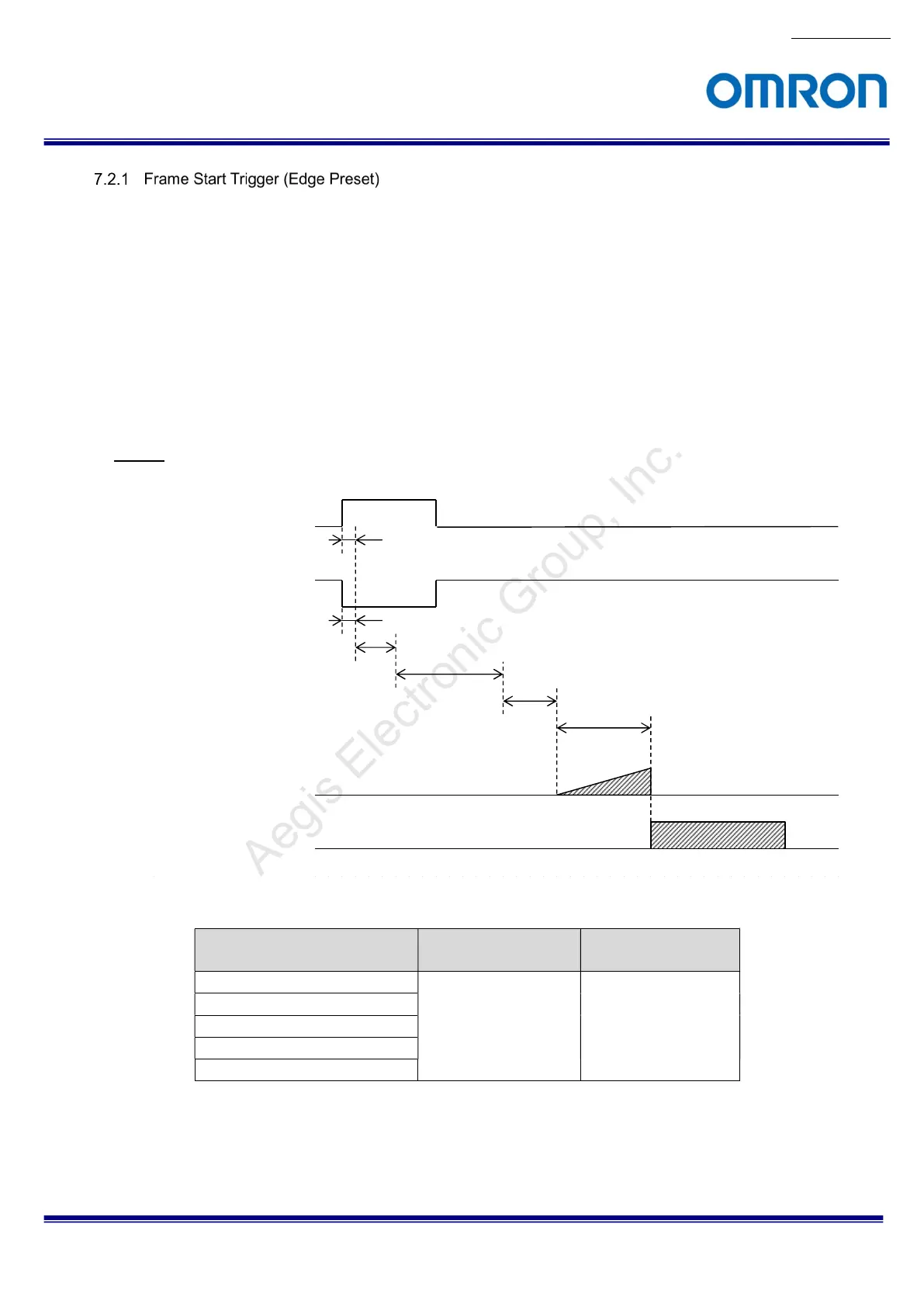

The exposure synchronizes trigger signal.
The value on Exposure Time is actual exposure time.
When the polarity on Line Inverter is positive (false), the Exposure starts on the rising edge of trigger.
When the polarity on Line Inverter is negative (true), the Exposure starts on the falling edge of trigger.
To work the camera under this mode, as following setting have to be set.
・Exposure Mode: Timed
・Trigger Selector: Frame Start
・Trigger Mode: On
(*) On Trigger Mode except Frame Start should be set Off.
Timing
Delay time on exposure start timing in the sensor Jitter (unit: μseconds)
Video Output Format
STC-MBS43U3V
STC-MCS43U3V
STC-MBS163U3V
STC-MCS163U3V
8bits 0 to 13.4 0 to 11.4
10bits
10bits Packed
12bits
12bits Packed
トリガー入力(正極性)
露光
映像出力
I/O遅延(tIPDLH)
トリガー入力(負極性)
I/O遅延(tIPDHL)
LineDebounceTime
TriggerDelay
ExposureTime
センサー内部の露光開始遅延
Exposure
VideoOut
Trigger Input
(Positive)
Trigger Input
(Negative)
I/O Delay (tIPDLH)
I/O Delay (tIPDHL)
Exposure Start Duration inside of sensor
