No.17S010-01
26/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide

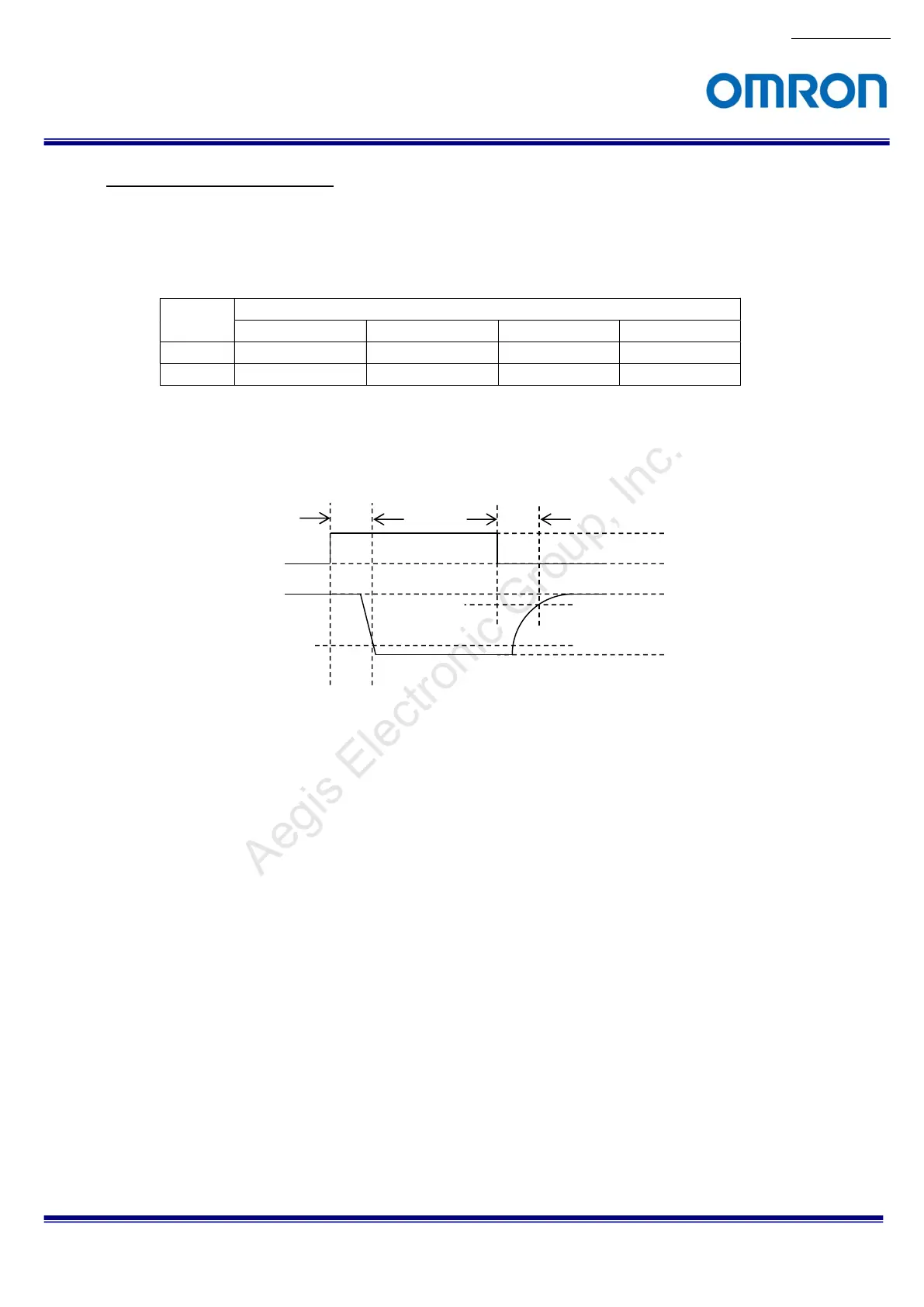

Output Response Characteristics
The response characteristics of the General Purpose output (Reference 3), and General Purpose output
(Reference 4) are shown in the diagram below. Pulse width is configurable through software.
Please refer to the following response timing table.
(*1) Measured on +3.3 V internal Voltage at “Reference 4”.
(*2) Measured at “Reference 3”.
カメラ内部
USER OUTPUT
tOPDHL
tOPDLH
内部電圧
0V
3.3VまたはVCCext
IO_GND
10%
90%
VCCext
OPEN (*1) 5 V (*2) 12 V (*2) 24 V (*2)
tOPDHL
0.21 µseconds 0.25 µseconds 0.37 µseconds
0.51 µseconds
tOPDLH
10.40 µseconds 2.69 µseconds 2.68 µseconds
2.61 µseconds
Camera internal
USER_OUTPUT
Internal Voltage
0V
+3.3V or VCCext
IO_GND
