Omron USB3 Vision Series User Manual

No.17S010-01
37/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide

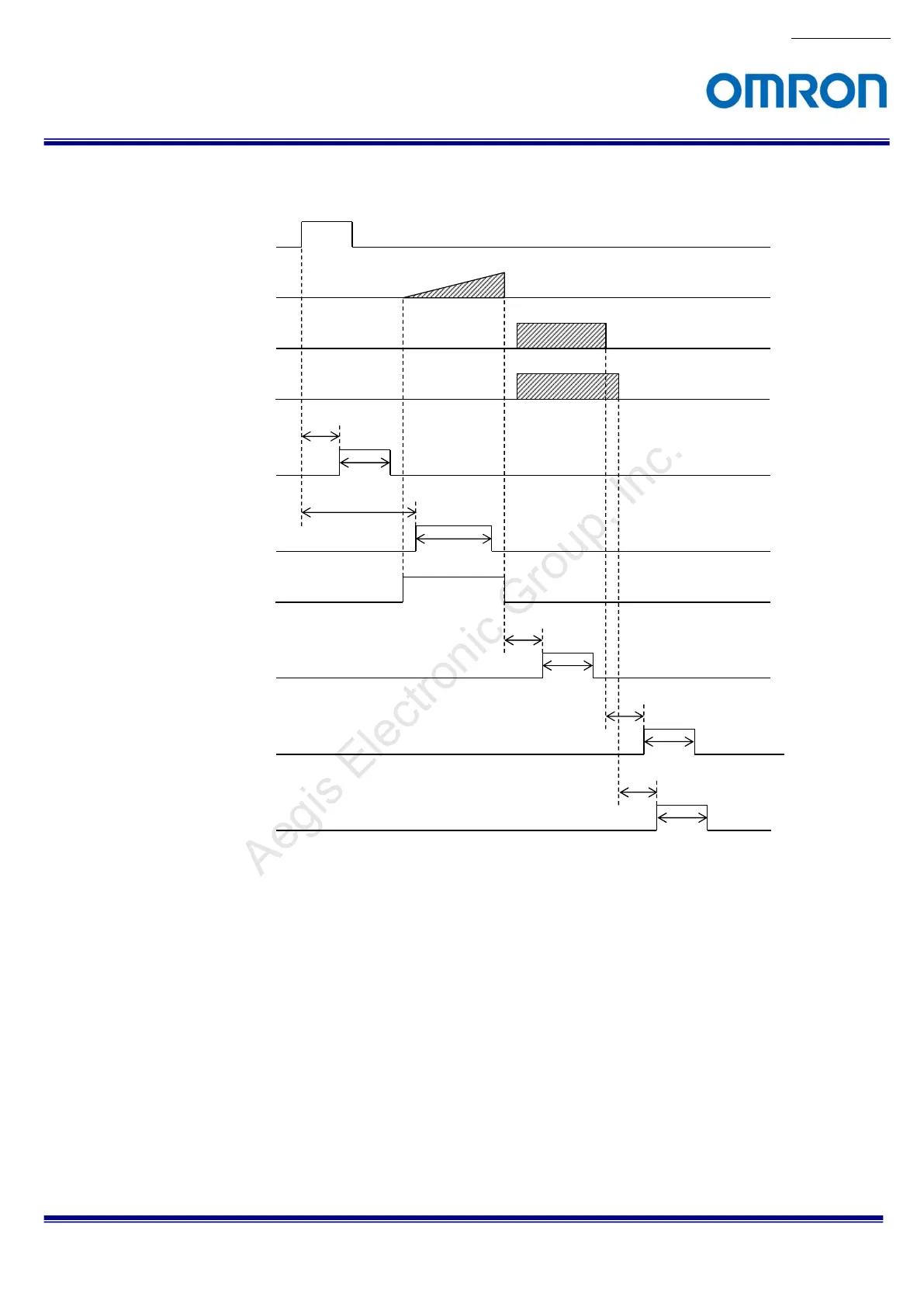

Line Source Timing
(*) This timing chart does not include the delay of the IO circuit
(*) The trigger port in this chart describes Frame Start trigger as an example
(*) Trigger Out and Strobe Out do not output from the camera for Exposure Start trigger and Exposure End
trigger
トリガー入力
露光
リードアウト
(センサー to FPGA)
映像出力
Trigger Out出力
Strobe Out
出力
Exposure Active
出力
Exposure End Out
出力
Frame End Out
出力
Transfer End Out
出力
TriggerOutDelay
TriggerOutOnTime
StrobeOutDelay
StrobeOutOnTime
TriggerOutDelay
TriggerOutOnTime
TriggerOutDelay
TriggerOutOnTime
TriggerOutDelay
TriggerOutOnTime
Trigger Input
Exposure
ReadOut (Sensor to FPGA)
VideoOut
Trigger Out Output
Strobe Out Output
Exposure Active Output
Exposure End Out Output
Frame End Out Output
Transfer End Out Output
