Omron V680-CA5D01-V2 User Manual

60
SECTION 3
Switch Settings
RFID System
User’s Manual
SECTION 3
Preparations for Communications
 Controller Number Switch Settings (SW1, SW2)
 Controller Numbers
If more than one Controller is connected to a single host device, the host device must be able to distin-
guish them. For this reason, a different Controller number must be set for each Controller.
Controller numbers are included in 1:N protocol commands and responses. Communications are not
possible if the Controller numbers are not set correctly.
SW1 and SW2 are enabled only when the DIP switch is enabled (i.e., when pin 1 on SW3 is OFF). If the internal set-
tings are enabled (i.e., if pin 1 on SW3 is ON), the values specified by the PARAMETER SET (SP) command will be
enabled.
p. 230

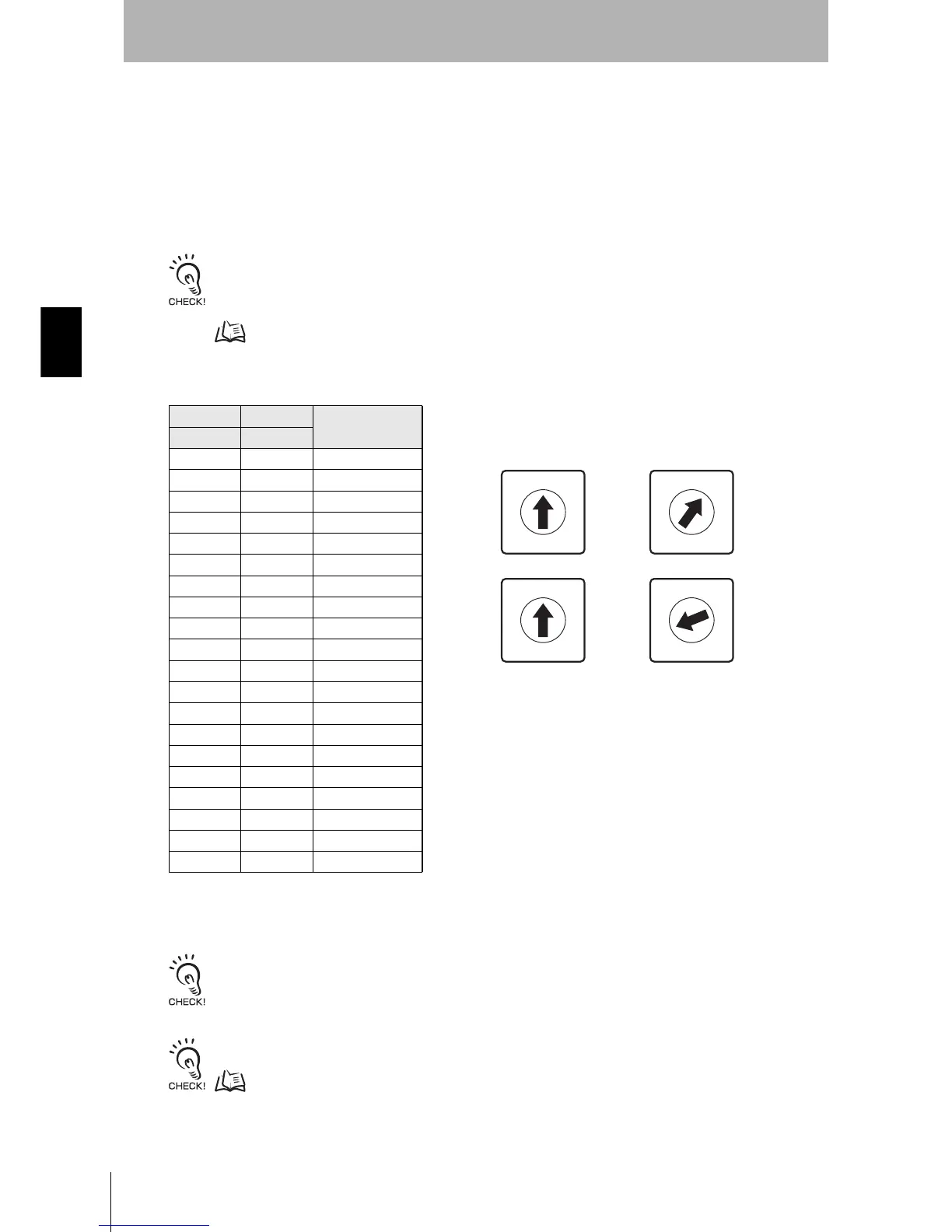

 Setting Controller Numbers
The Controller number switch is factory-set to 00.
Do not set the Controller number switch to between 32 and 99.
When rotary switch SW1 is set to 8, the ID Controller will be in Host Communications Trigger Send Mode. If the mode
switch is turned OFF in this mode, a response frame will be sent to the host device.
p. 74
SW1 SW2
Controller No.
Upper digit Lower digit
00 0
01 1
02 2
03 3
04 4
05 5
06 6
07 7
08 8
09 9
10 10
11 11
:: :
29 29
30 30
31 31
3 2 Setting prohibited
3 3 Setting prohibited
:: :
9 9 Setting prohibited
Controller No. 0
Controller No. 17
SW1
0
9
8
7
6
5
3
2
1
4
SW1
0
9
8
7
6
5
3
2
1
4
SW2
0
9
8
7
6
5
3
2
1
4
SW2
0
9
8
7
6
5
3
2
1
4
Setting Examples
