Omron V680-HS63 - Page 105

RFID System
User's Manual
SECTION 7
Specifications and Dimensions
SECTION 7
Appendices
103
Communications Range Specifications
 V680-D1KP52MT
When embedding the V680-D1KP52MT into a metal surface, use the V680-HS51/-HS52 Antenna.
Transmission will not be possible if the V680-HS63 Antenna is used.

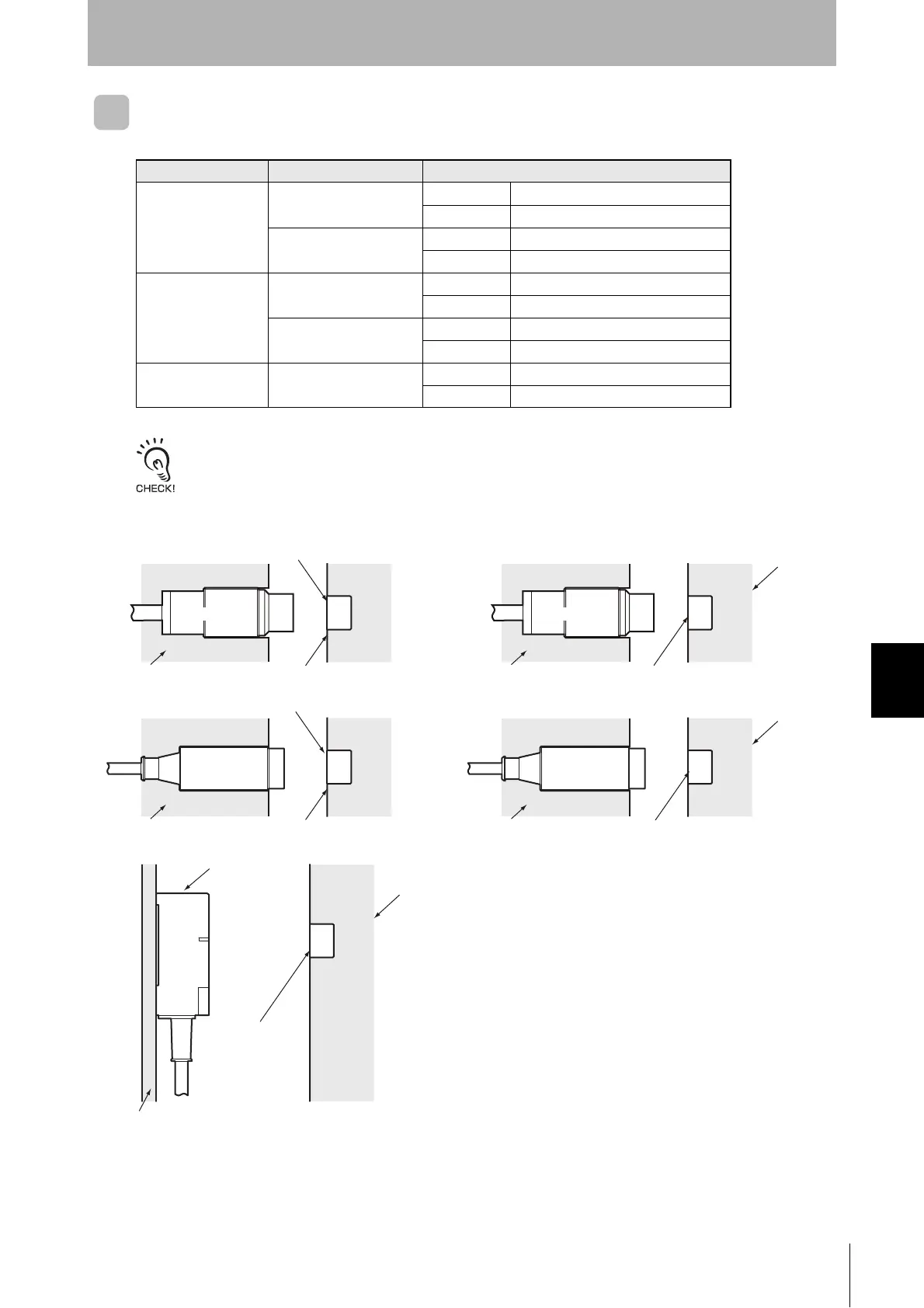

 Measurement Conditions
Antenna RF Tag Communications range
V680-HS51
V680-D1KP52MT
Read 0.5 to 6.5 mm (Axis offset: 2)
Write 0.5 to 6.0 mm (Axis offset: 2)
V680-D1KP52MT
embedded in metal (steel)
Read 0.5 to 3.5 mm (Axis offset: 2)
Write 0.5 to 3.0 mm (Axis offset: 2)
V680-HS52
V680-D1KP52MT
Read 0.5 to 9.0 mm (Axis offset: 2)
Write 0.5 to 8.5 mm (Axis offset: 2)
V680-D1KP52MT
embedded in metal (steel)
Read 0.5 to 4.5 mm (Axis offset: 2)
Write 0.5 to 4.0 mm (Axis offset: 2)
V680-HS63 V680-D1KP52MT
Read 0.5 to 12.0 mm (Axis offset: 2)
Write 0.5 to 9.5 mm (Axis offset: 2)
V680-D1KP52MT
V680-HS51
V680-HS51
V680-D1KP52MT
V680-D1KP52MT
V680-D1KP52MT
V680-D1KP52MT
V680-HS63
Non-metallic material
Non-metallic material
Non-metallic material
Metallic material
Metallic material
Metallic
material
Metallic
material
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
V680-HS52
V680-HS52
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
