V680-D1KP53M
When embedding the V680-D1KP53M into a metal surface, use the V680-HS51/-HS52 Antenna.
Transmission will not be possible if the V680-HS63 Antenna is used.

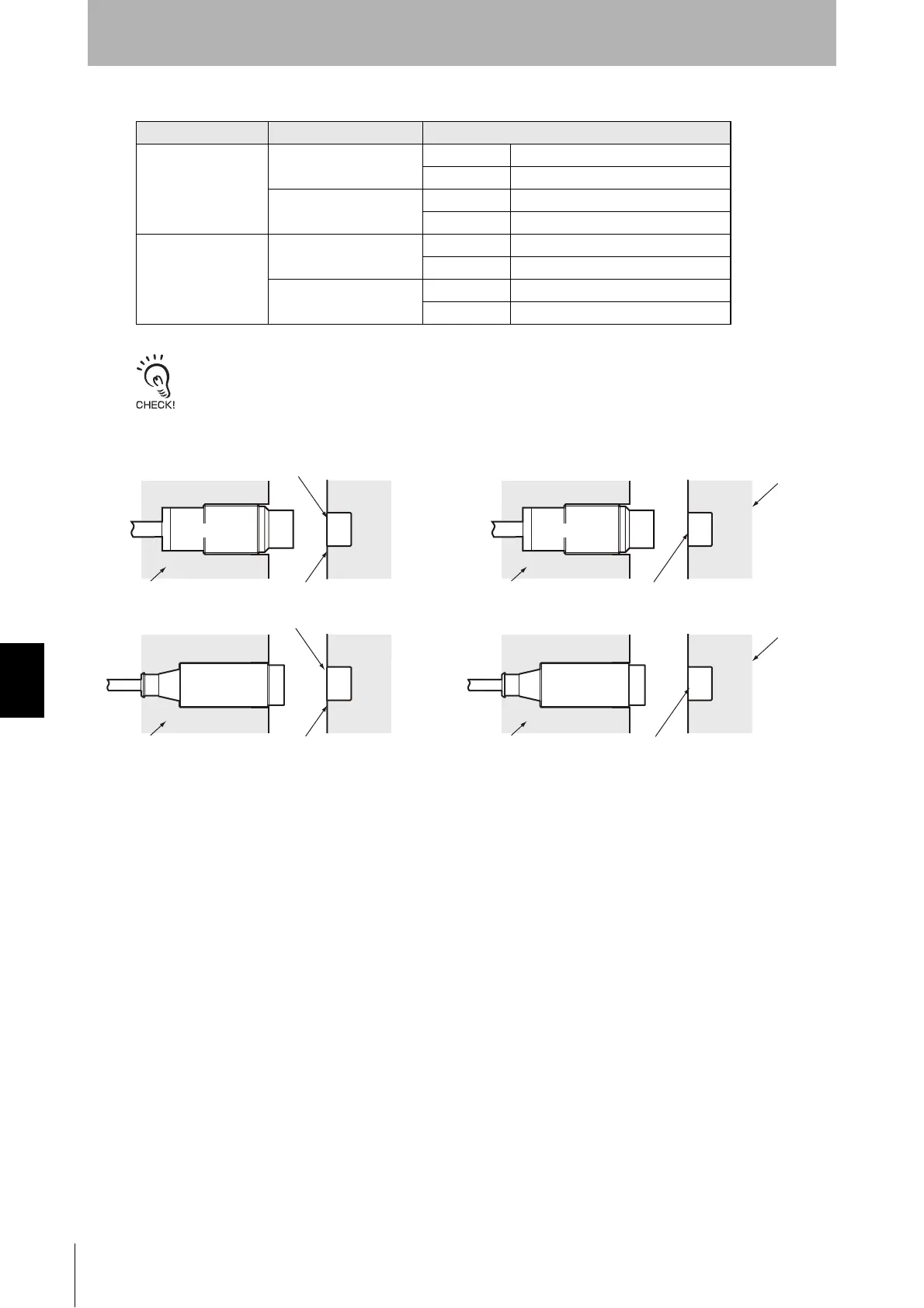

Measurement Conditions
Antenna RF Tag Communications range
V680-HS51
V680-D1KP53M
Read 0.5 to 6.5 mm (Axis offset: 2)
Write 0.5 to 6.0 mm (Axis offset: 2)
V680-D1KP53M
embedded in metal (steel)
Read 0.5 to 3.5 mm (Axis offset: 2)
Write 0.5 to 3.0 mm (Axis offset: 2)
V680-HS52
V680-D1KP53M
Read 0.5 to 9.0 mm (Axis offset: 2)
Write 0.5 to 8.5 mm (Axis offset: 2)
V680-D1KP53M
embedded in metal (steel)
Read 0.5 to 4.5 mm (Axis offset: 2)
Write 0.5 to 4.0 mm (Axis offset: 2)
V680-D1KP53M
V680-HS51
V680-HS51
V680-D1KP53M
V680-D1KP53M
V680-D1KP53M
Non-metallic material
Non-metallic material
Metallic material
Metallic material
Metallic
material
Metallic
material
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
V680-HS52
V680-HS52
