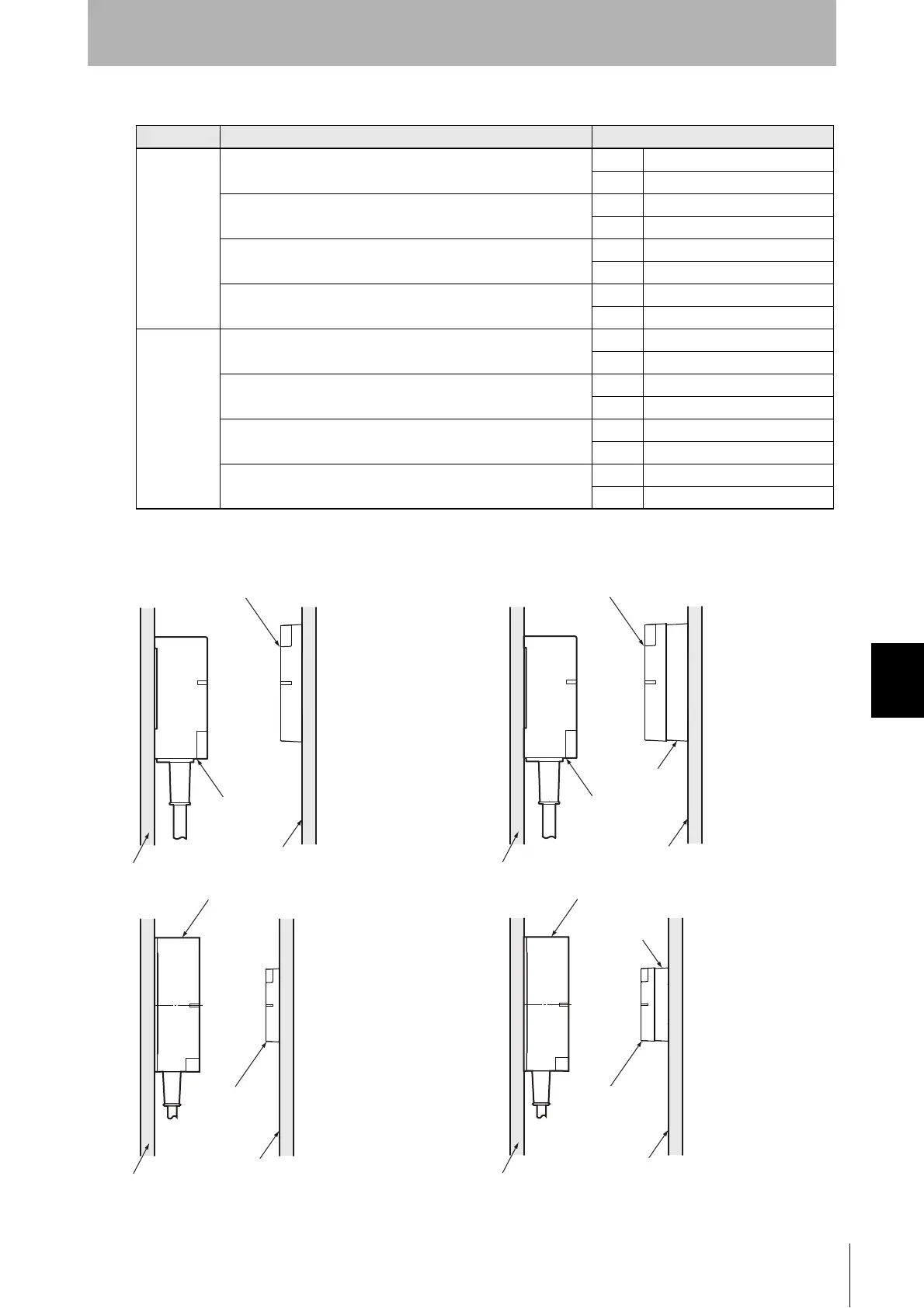

 V680-D8KF68/-D32KF68
 Measurement Conditions
Antenna RF Tag Communications range
V680-HS63
V680-D8KF68
Read 5.0 to 45.0 mm (Axis offset: 10)
Write 5.0 to 45.0 mm (Axis offset: 10)
V680-D8KF68
(with V680-A81 Attachment, V680-A81) with metal on back (steel)
Read 5.0 to 35.0 mm (Axis offset: 10)
Write 5.0 to 35.0 mm (Axis offset: 10)
V680-D32KF68
Read 5.0 to 45.0 mm (Axis offset: 10)
Write 5.0 to 45.0 mm (Axis offset: 10)
V680-D32KF68
(with Attachment, V680-A81) with metal on back (steel)
Read 5.0 to 35.0 mm (Axis offset: 10)
Write 5.0 to 35.0 mm (Axis offset: 10)
V680-HS65
V680-D8KF68
Read 5.0 to 75.0 mm (Axis offset: 10)
Write 5.0 to 75.0 mm (Axis offset: 10)
V680-D8KF68
(with Attachment, V680-A81) with metal on back (steel)
Read 5.0 to 55.0 mm (Axis offset: 10)
Write 5.0 to 55.0 mm (Axis offset: 10)
V680-D32KF68
Read 5.0 to 75.0 mm (Axis offset: 10)
Write 5.0 to 75.0 mm (Axis offset: 10)
V680-D32KF68
(with Attachment, V680-A81) with metal on back (steel)
Read 5.0 to 55.0 mm (Axis offset: 10)
Write 5.0 to 55.0 mm (Axis offset: 10)
V680-D8KF68/-D32KF68
Metallic material
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
V680-HS65
Metallic material
Metallic material
Metallic material
Metallic material
Non-metallic material
(Examples: Resin, plastic, wood, etc.)
Metallic material
V680-D8KF68/-D32KF68
V680-HS65
V680-D8KF68
V680-D32KF68
V680-D8KF68
V680-D32KF68
V680-A81
(Attachment)
V680-A81
(Attachment)
V680-HS63
V680-HS63
