Characteristics According to Operating Conditions
RFID System
User's Manual
SECTION 7
Appendices
 V680-D1KP66T
The interrogation zone given here are for reference only. For information on communications ranges, refer to
Communications Range Specifications in this section. The interrogation zone depends on the type of RF Tags used, the
ambient temperature, surrounding metals, and noise. Be sure to check carefully when installing the system.
p.105
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X

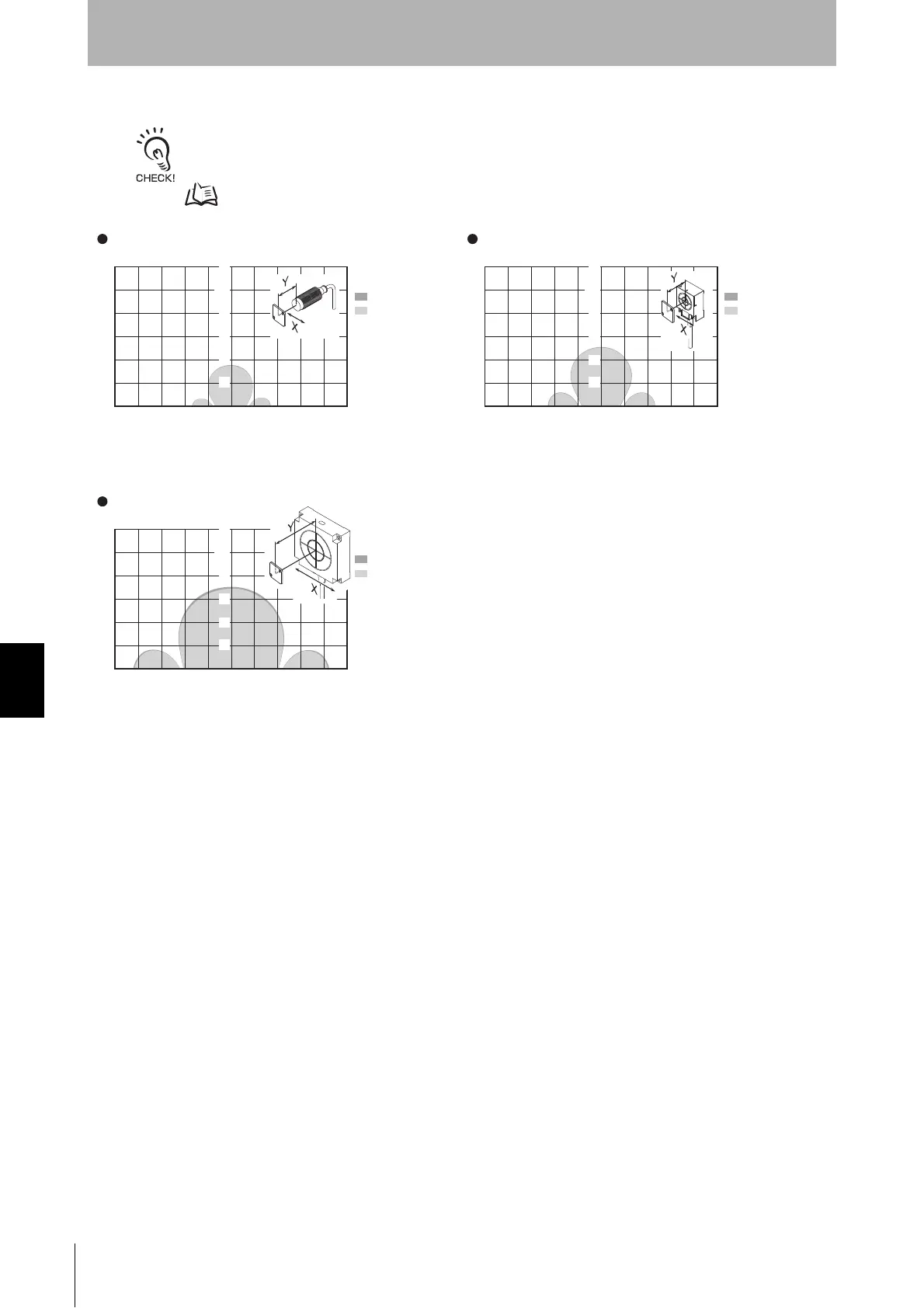

V680-HS52䋨Embedded in Non-Metal䋩 and V680-D1KP66T V680-HS63䋨with Non-Metal on Back Surface䋩 and V680-D1KP66T
V680-HS65䋨with Metal on Back Surface䋩 and V680-D1KP66T
Read
Write
Read
Write
Read
Write
