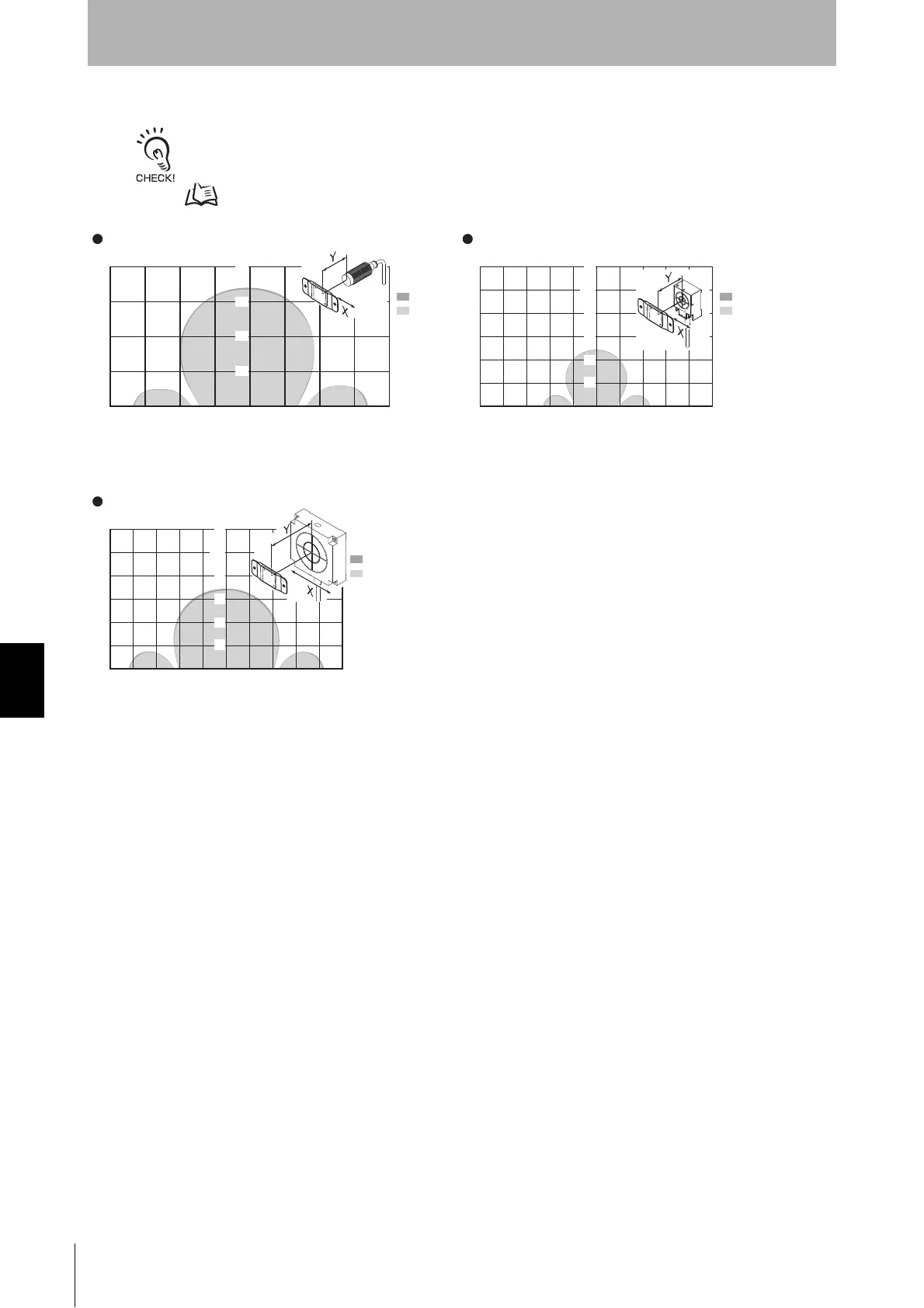

 V680-D1KP66T-SP
The interrogation zone given here are for reference only. For information on communications ranges, refer to
Communications Range Specifications in this section. The interrogation zone depends on the type of RF Tags used, the
ambient temperature, surrounding metals, and noise. Be sure to check carefully when installing the system.
p.107
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
V680-HS52䋨Embedded in Non-Metal䋩 and V680-D1KP66T-SP V680-HS63䋨with Non-Metal on Back Surface䋩 and V680-D1KP66T-S
V680-HS65䋨with Metal on Back Surface䋩 and V680-D1KP66T-SP
Read
Write
Read
Write
Read
Write
20
30
10
Y
-40 -30 -20 -10 10 20 30 X0
