Omron V680-HS63 - Page 128

126
SECTION 7
Characteristics According to Operating Conditions
RFID System
User's Manual
SECTION 7
Appendices

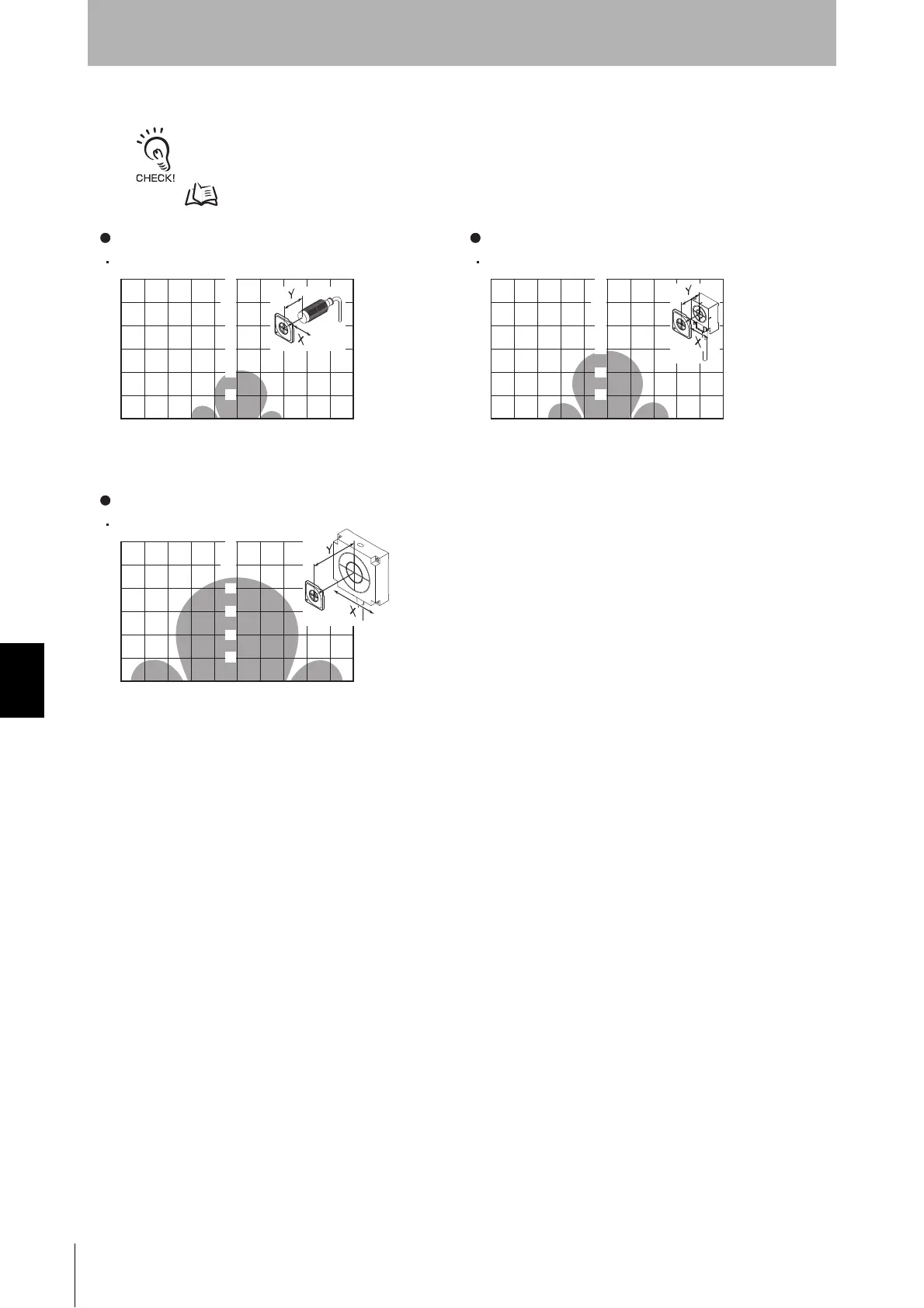

 V680-D8KF67
The interrogation zone given here are for reference only. For information on communications ranges, refer to
Communications Range Specifications in this section. The interrogation zone depends on the type of RF Tags used, the
ambient temperature, surrounding metals, and noise. Be sure to check carefully when installing the system.
p.109
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
Read/Write
V680-HS52䋨Embedded in Non-Metal䋩 and V680-D8KF67
Read/Write
Read/Write
V680-HS63䋨with Non-Metal on Back Surface䋩 and V680-D8KF67
V680-HS65䋨with Metal on Back Surface䋩 and V680-D8KF67
