 V680-D1KP66T
 Effect of Metal on Back of RF Tags (Reference)
The V680-D1KP66T communications range is reduced if there is any metal on the back of the RF Tag.
If the RF Tag is to be mounted to metallic material, then either use a V600-A86 Attachment (sold
separately) or insert a non-metal spacer (such as plastic or resin). The relationship between the
distance from the RF Tag to the metal surface and the communications range is shown below.
The Attachment is 10 mm thick, and more than one Attachment can be stacked.

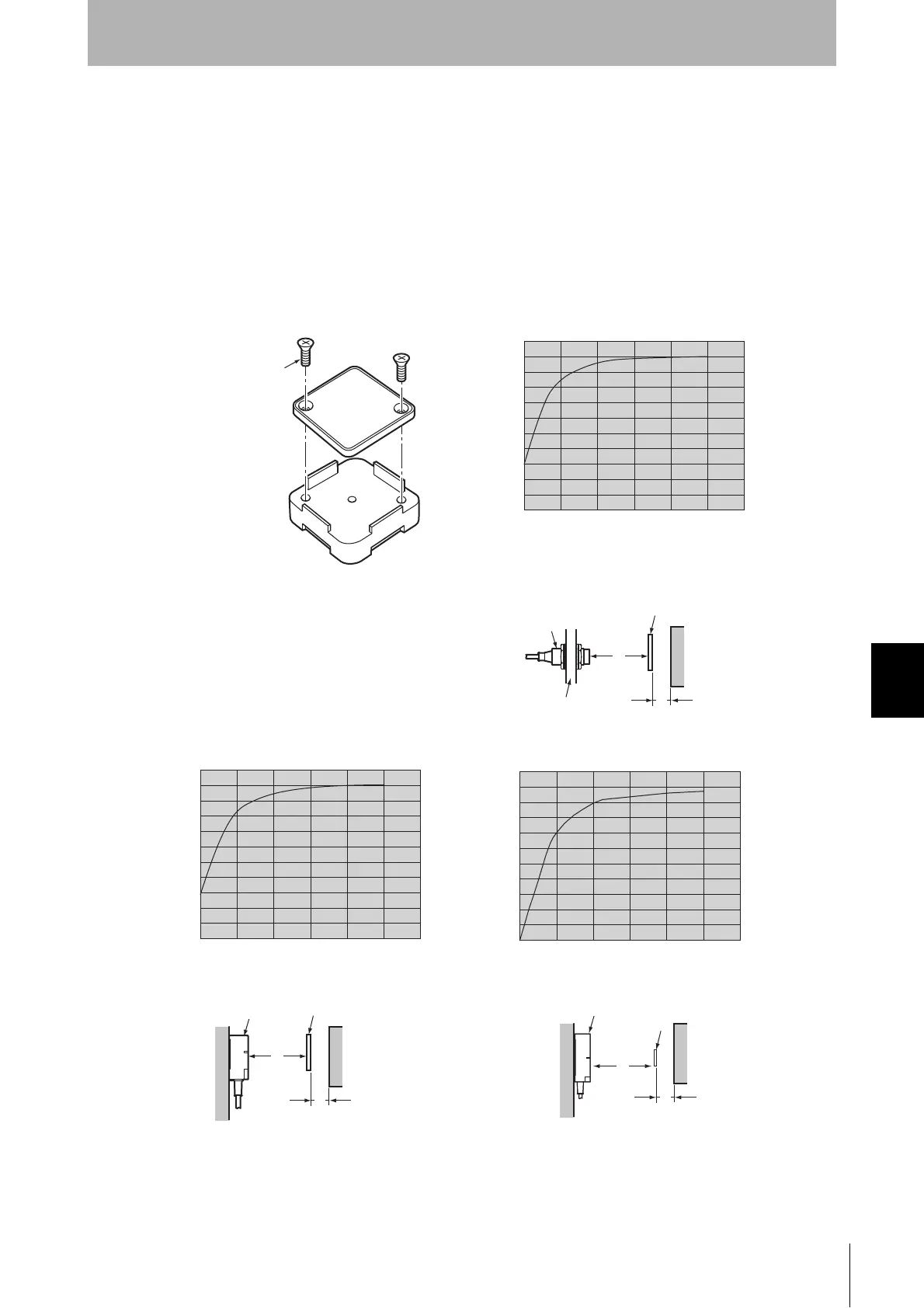

V600-A86 Attachment Installation ● V680-HS52 and V680-D1KP66T
Note: Install so that the mounting holes are aligned.
● V680-HS63 and V680-D1KP66T ● V680-HS65 and V680-D1KP66T
M3 countersunk screw
Distance to metal (x)
10
20
30
40
50
60
70
80
90
100
(%)
Communications range (Distance without metal is 100%.)
0 10 20 30 40
(mm)
50
Antenna
RF Tag
Metallic material
X
Y
Metal on back
Communica-
tions
range
Distance to metal
(
x
)
10
20
30
40
50
60
70
80
90
100
(
%
)
Communications range (Distance without metal is 100%.)
0 10 20 30 40
(mm)
50
Distance to metal (x)
10
20
30
40
50
60
70
80
90
100
(%)
Communications range (Distance without metal is 100%.)
0 10 20 30 40
(mm)
50
Antenna
RF Tag
Metallic
material
X
Metal on back
Communica-
tions
range
Y
Antenna
RF Tag
Metallic
material
X
Metal on back
Communica-
tions
range
Y
