SECTION 7
Reference Data
RFID System
User's Manual
SECTION 7
Appendices

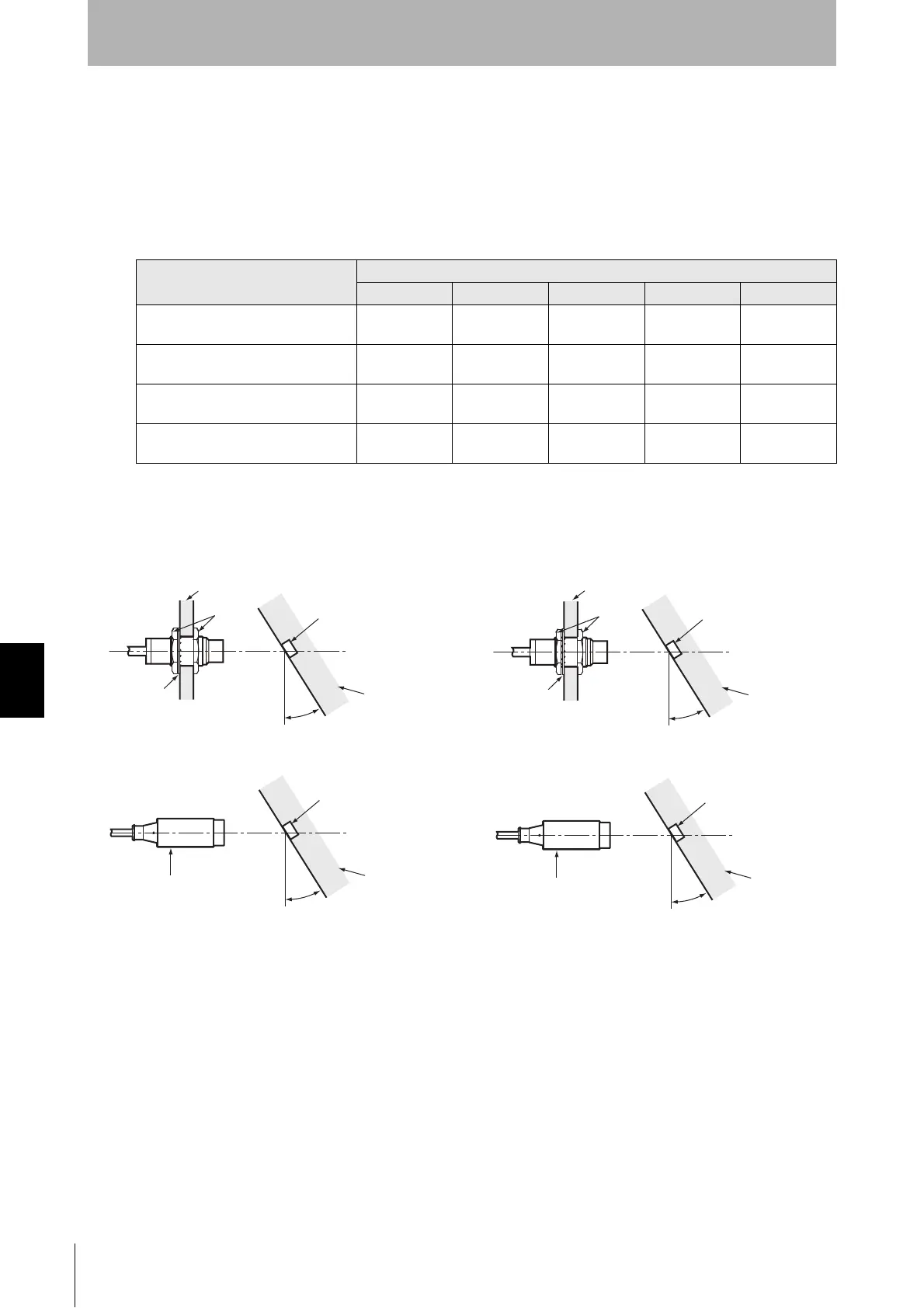

Influence of RF Tag Angle (Reference)
Install Antennas and RF Tags as close to parallel to each other as possible.
Communications are possible even when an Antenna and an RF Tag are mounted at an angle, but the
communications range will be shortened. The relation between the angle and the communications
range is shown below.
Percentage of Change in Communications Range for 680-D1KP53M Angle
Measurement Conditions
RF Tag angle ()
0 10 20 30 40
V680-HS51 and V680-D1KP53M
0% 1% 5% 10% 15%
V680-HS51 and V680-D1KP53M
(Metal on back: Steel)
0% 0% 0% 4% 28%
V680-HS52 and V680-D1KP53M
0% 0% 0% 2% 6%
V680-HS52 and V680-D1KP53M
(Metal on back: Steel)
0% 6% 13% 25% ---
---: Measurement is not possible because Antenna and RF Tag would strike each other.
V680-HS51 and V680-D1KP53M V680-HS51 and V680-D1KP53M
(Metal on back: Steel)
V680-HS52 and V680-D1KP53M V680-HS52 and V680-D1KP53M
(Metal on back: Steel)
RF Tag
Non-metallic
material
Antenna
Steel
Nuts
Toothed
washer
θ
RF Tag
Non-metallic
material
Antenna
Steel
Nuts
Toothed
washer
θ
RF Tag
Non-metallic
material
Antenna
θ
RF Tag
Steel
Antenna
θ
