SECTION 2
FL Remote ID
RFID System
User's Manual
SECTION 2
Installation, Connections, and Wiring
Connection and Wiring
■ FL Remote Connector
Installation

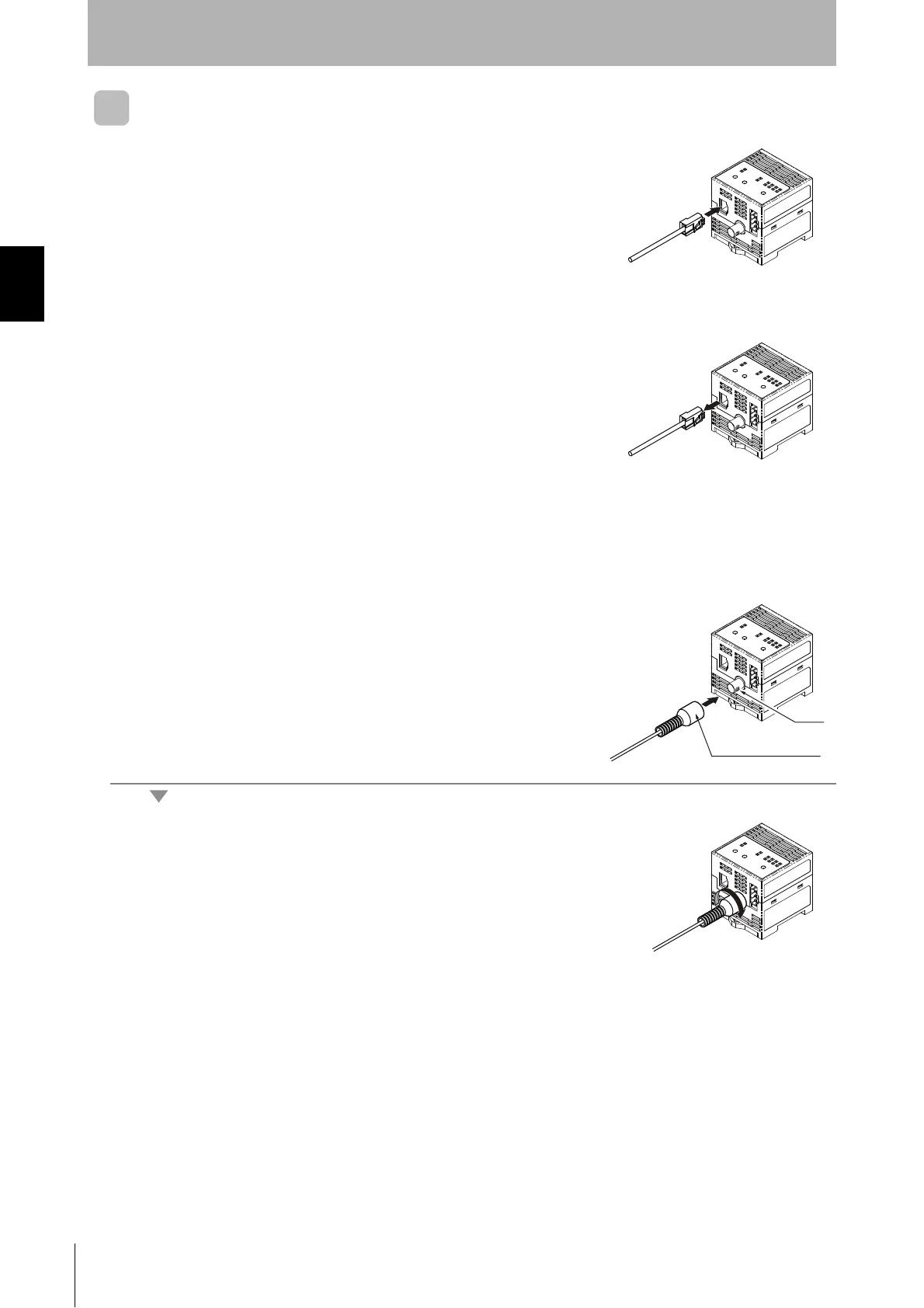

Hold the connector part of the cable and insert it into the FL
Remote Port.
Removal
Unlock the connector and pull it out.
■ Antenna Connector
Mounting the Antenna
1. Hold the connector part of the Antenna and insert it into the
Antenna port while matching the key on the Unit with the groove
on the connector.
2. Turn the connector clockwise to lock it in place.
To Next Page
