RFID System
User's Manual
SECTION 2
Installing RF Tags
SECTION 2
Installation, Connections, and Wiring
V680-D1KP66T-SP

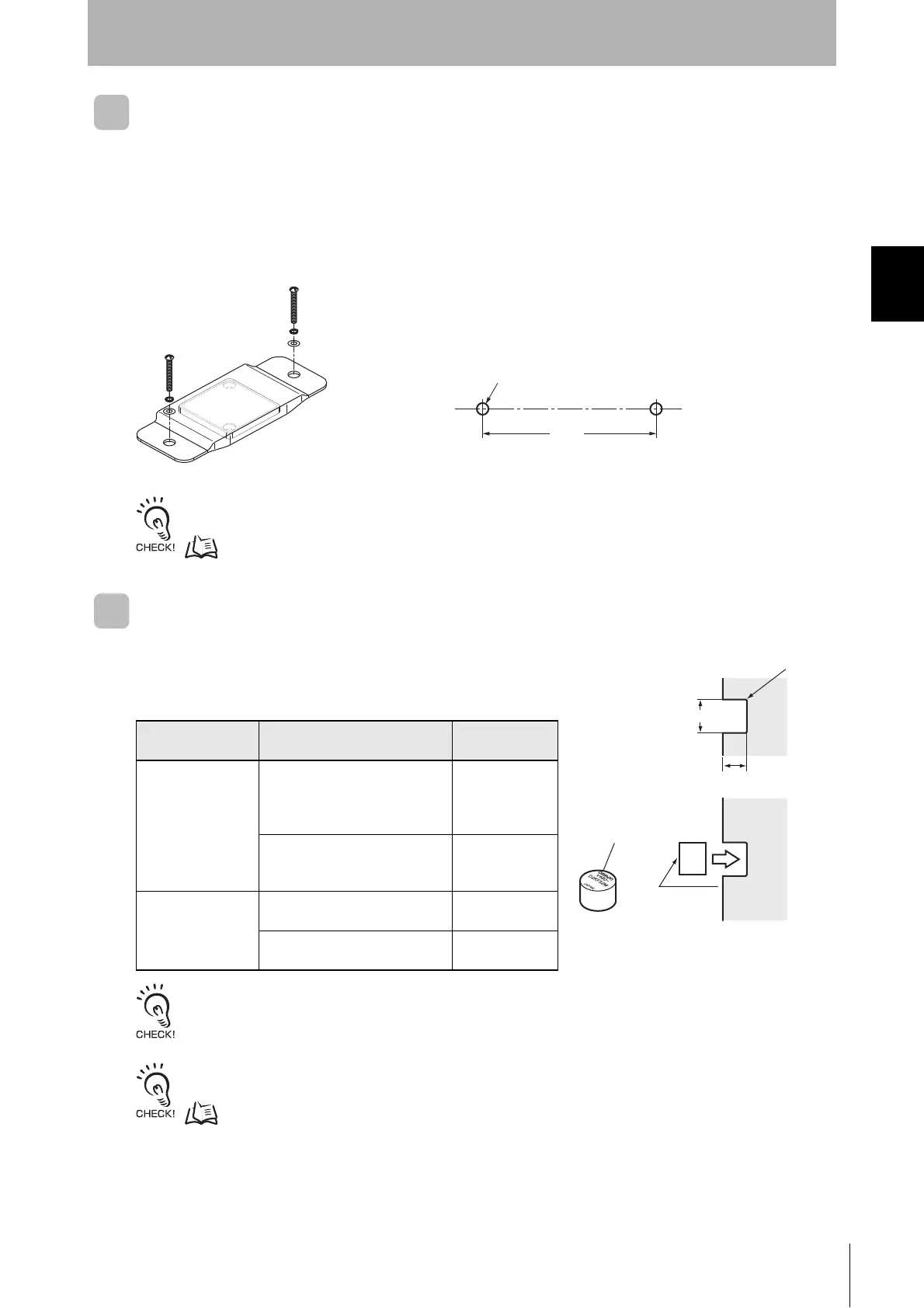

RF Tag Installation
Mount the RF Tags with M5 screws and washers.
Tightening torque: 1.2 N·m.
There are no restrictions to the mounting direction of the RF Tags or the direction of movement for
Antennas.
Refer to Effect of Metal on Back of RF Tags (Reference) in Section 7 Appendices for information on the effect of metal
behind the V680-D1KP66T-SP.
p.151
V680-D2KF52M
RF Tag Installation
Mount RF Tags as shown in the diagram on the right.
The epoxy adhesives listed in the following table are
recommended for the given temperature ranges.
When embedding the V680-D2KF52M into a metal surface, use the V680-HS51/-HS52 Antenna.
Communications will not be possible if the V680-HS63 Antenna is used.
Refer to Differences in Surrounding Metals in Section 7 Appendices for information on the effect of metal behind the
V680-D2KF52M.
p.154
Ambient operating
temperature
Product name Manufacturer
40 to 70C
Two-part Epoxy-compound
Resin:
TB2001 (main agent)/TB2105C
(curing agent)
Three Bond Co.,
Ltd.
One-part Moisture-curing Elastic
Adhesive
TB1530
Three Bond Co.,
Ltd.
40 to 85C
One-part Epoxy Resin: TB2285 Three Bond Co.,
Ltd.
Two-part Epoxy Resin: TB2087 Three Bond Co.,
Ltd.
Mounting hole dimensions
Two, M5
80±0.2
R0.2 max.
Marked side
Marked side
8.1
+0.1
0
dia.
5
+0.1
0
