Omron V680-HS63 - Page 81

RFID System
User's Manual
SECTION 7
Specifications and Dimensions
SECTION 7
Appendices
79
 Dimensions

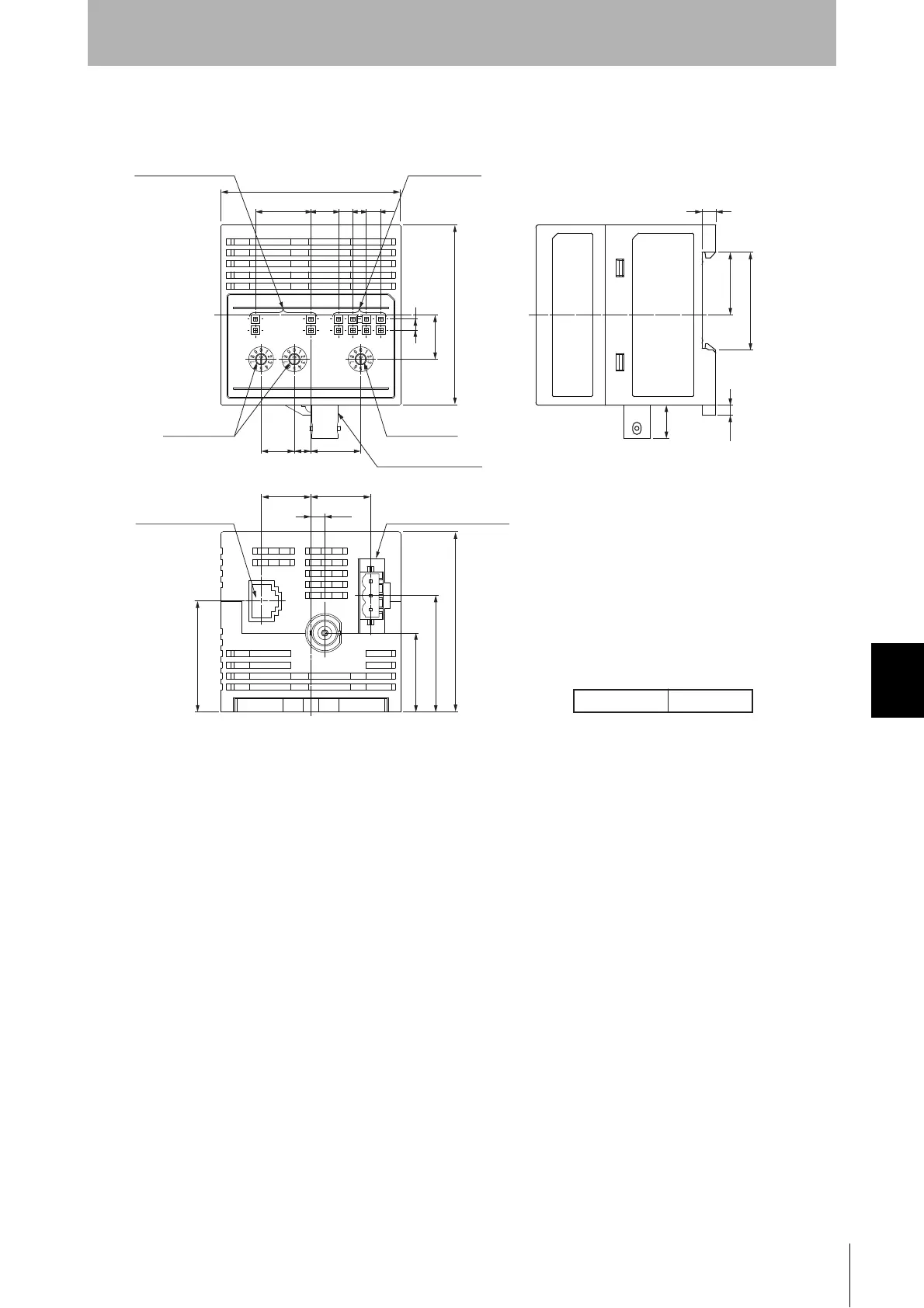

V680-HAM42-FRT
Antenna connector port
Power supply terminals
Ethernet connector
Mode switch
Operation indicator Data indicator
Node address
switches
65
20 10 555
12 6 18
65
16
4 1.5
65
41.8
28.5
40
17.8
21.5
5.06
22.6
35.2
(3.7)
12
5
PC + ABSCase material
(Unit: mm)
