SECTION 7
Specifications and Dimensions
RFID System
User's Manual
SECTION 7
Appendices
Antenna
V680-HS51
General Specifications

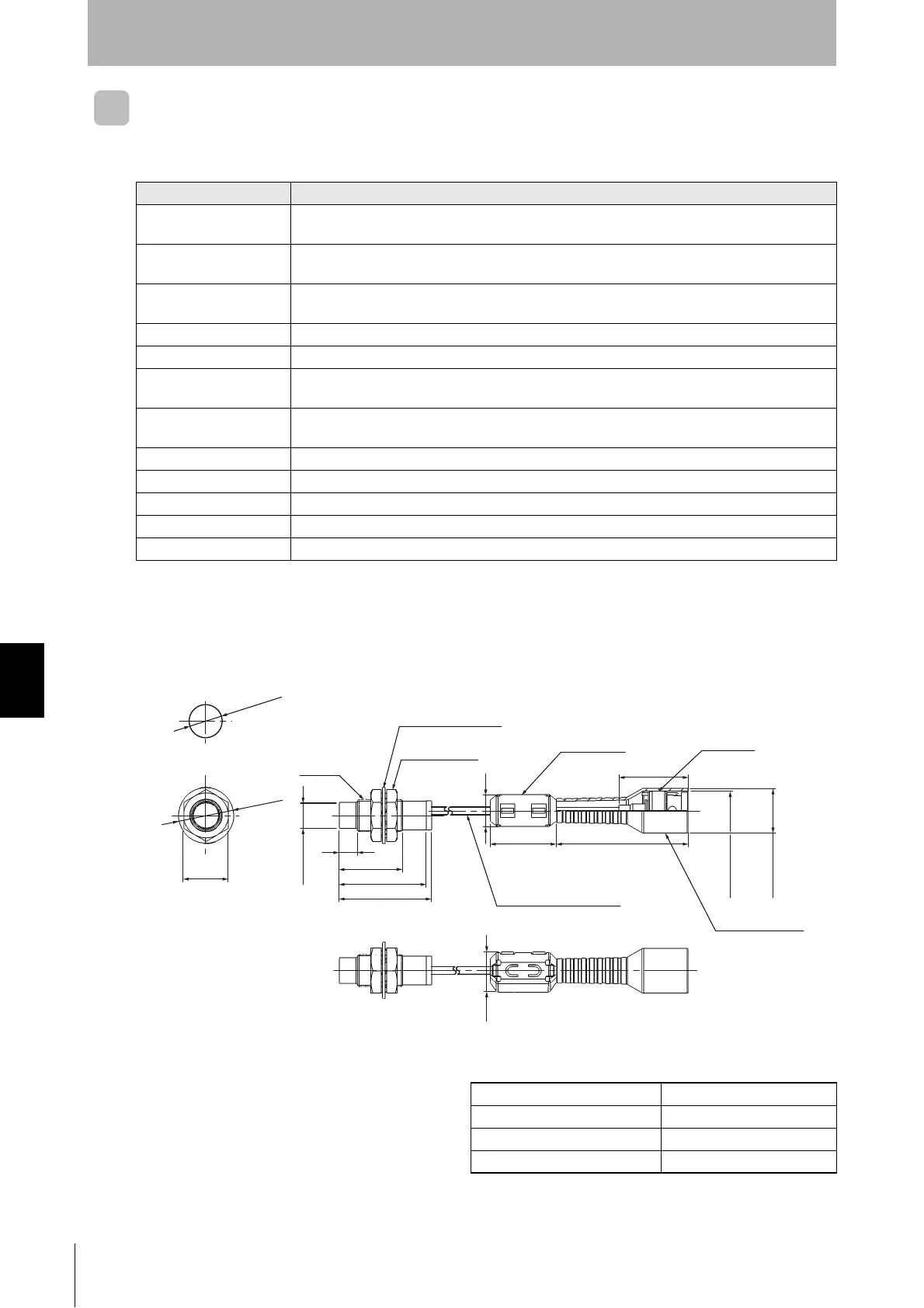

Dimensions
Item Model V680-HS51
Ambient operating
temperature
10 to 60C (with no icing)
Ambient storage
temperature
25 to 75C (with no icing)
Ambient operating
humidity
35% to 95% (with no condensation)
Insulation resistance 20 M min. (at 500 VDC) between cable terminals and case
Dielectric strength 1,000 VAC, 50/60Hz for 1 min between cable terminals and case
Degree of protection IP67 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1)
(Antenna portion)
See Note1.
Vibration resistance 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/s
2
, 10 sweeps in each of
3 directions (up/down, left/right, and forward/backward) for 15 minutes each
Shock resistance 1,000 m/s
2
, 3 times each in 6 directions (Total: 18 times)
Dimensions M12 35 mm
Material ABS, brass, and epoxy resin filling
Weight Approx. 55 g
Cable length Standard length of 2 m
Note.1 The Connector is not waterproof. Oil resistance has been tested using a specific oil as defined in the OMRON test
method.
Case material Brass
Communications surface ABS resin
Fill resin Epoxy resin
Cable PVC (black)
(16.8 dia.)
(Unit: mm)
(14.5 dia.)
12
9.6 dia.
Connector
Ferrite core
50
25
Two toothed washers
Two lock nuts
Coaxial cable, 2.9 dia.,
standard length: 2 m
15
35
33
24
7
M12 x 1
21 dia.
12.5 dia.
17
Mounting Hole Dimensions
Insulation cover
