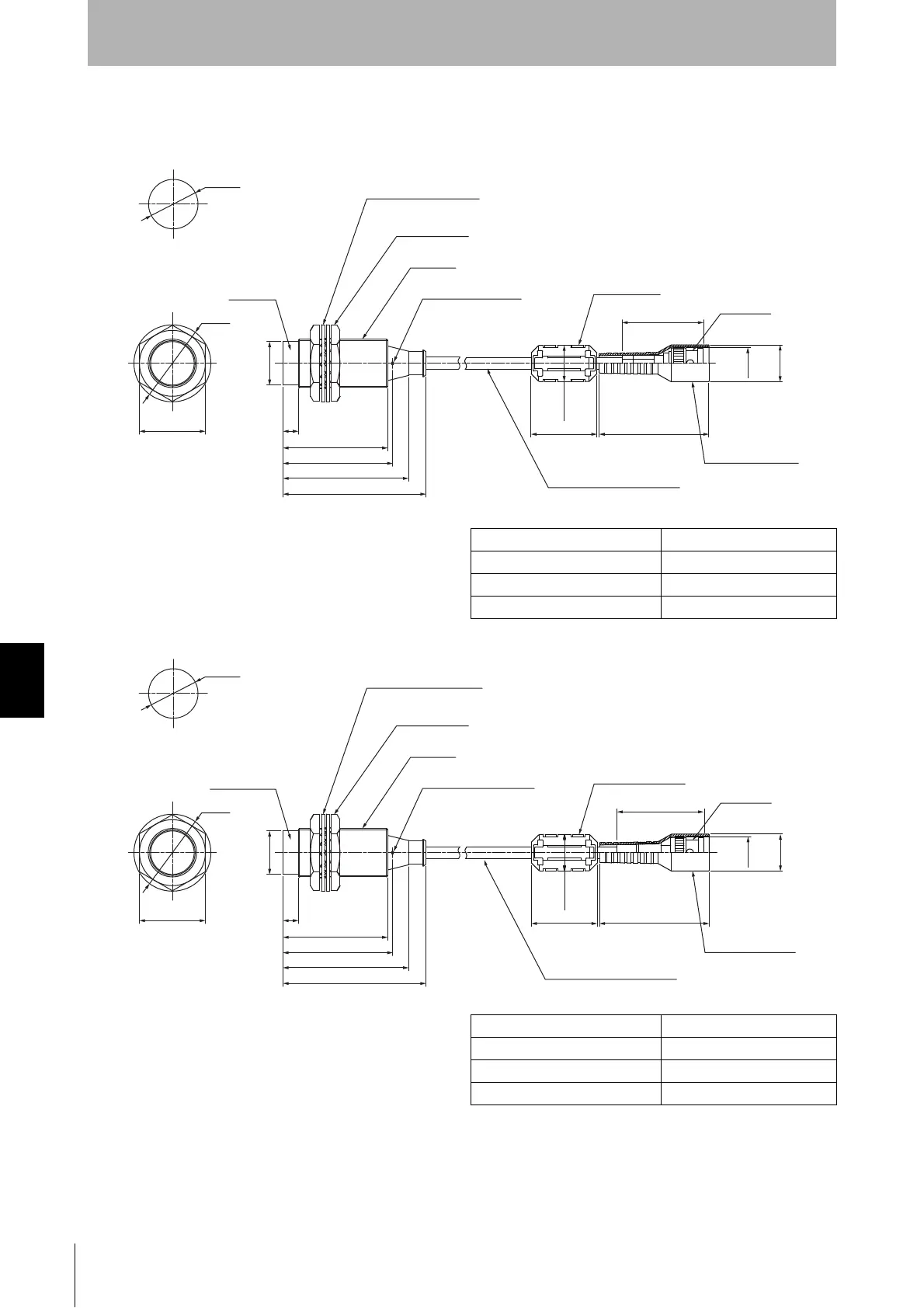

 Dimensions
V680-HS52-W
V680-HS52-R
Case material Brass
Communications surface ABS resin
Fill resin Epoxy resin
Cable PVC (gray)
Case material Brass
Communications surface ABS resin
Fill resin Epoxy resin
Cable PVC (black)
16.8 dia.
(Unit: mm)
14.5 dia.
Connector
Ferrite core
Insulation cover
37
50
30
16.5 dia.
Two toothed washers
Two lock nuts
M22 × 1
Operation indicator
Coaxial cable, 5.5 dia.,
standard length: 2 m
65
57
50
47.8
7
35 dia.
Antenna
22.5 dia.
Mounting Hole Dimensions
30
19.8 dia.
16.8 dia.
(Unit: mm)
14.5 dia.
Connector
Ferrite core
Insulation cover
(39.5)
50
30
16.5 dia.
Two toothed washers
Two lock nuts
M22 × 1
Operation indicator
Coaxial cable, 5.3 dia.,
standard length: 2 m
47.6
7
35 dia.
Antenna
22.5 dia.
Mounting Hole Dimensions
30
50
57
65
