Omron V680-HS63 - Page 87

RFID System
User's Manual
SECTION 7
Specifications and Dimensions
SECTION 7
Appendices
85

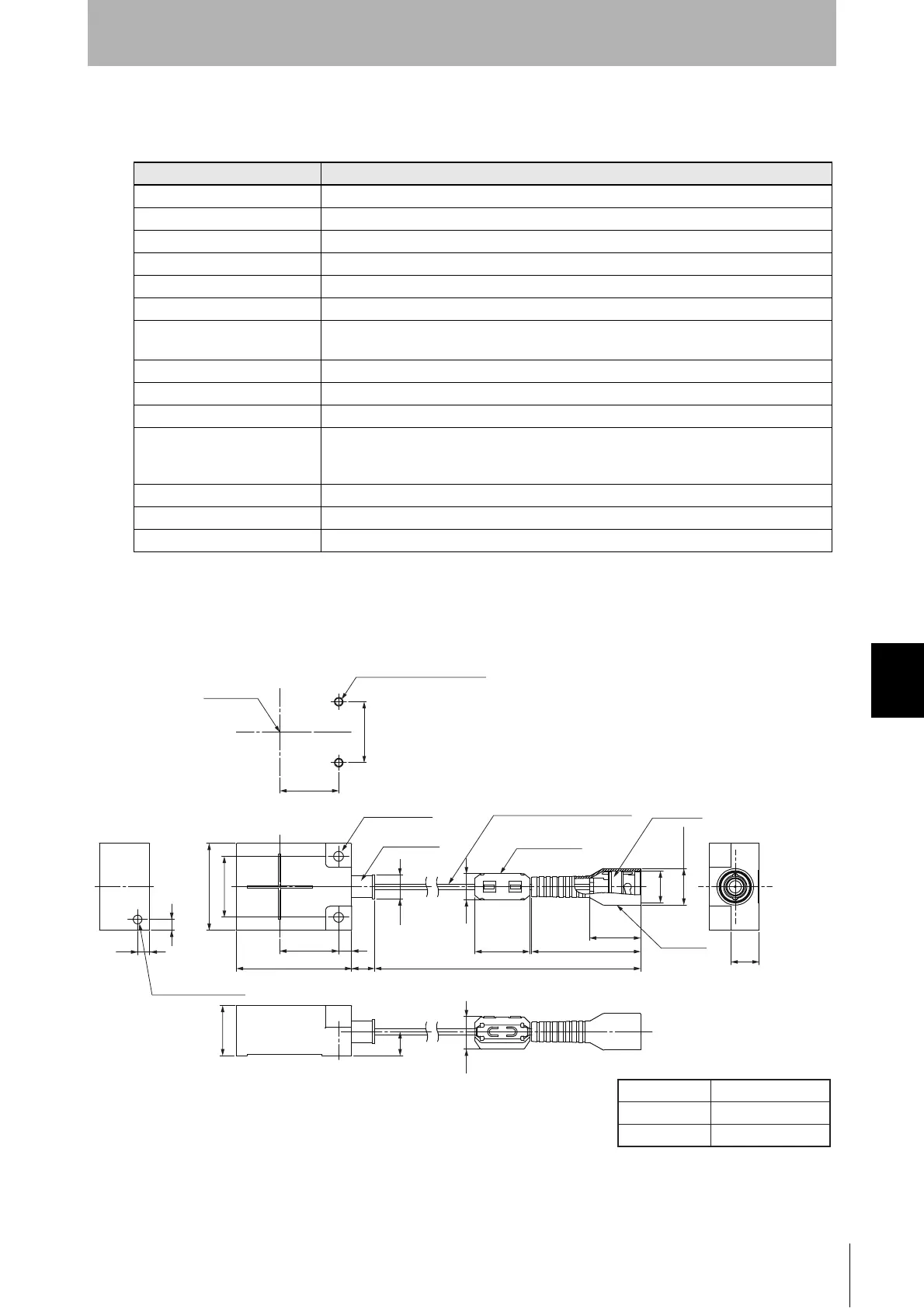

 V680-HS63-SP
 General Specifications
 Dimensions
Item Specifications
Ambient operating temperature 10 to 60C (with no icing)
Ambient operating humidity 35% to 95% (with no condensation)
Ambient storage temperature 25 to 75C (with no icing)
Ambient storage humidity 35% to 95% (with no condensation)
Insulation resistance 20 M min. (at 500 VDC) between power supply terminals and casing
Dielectric strength 1,000 VAC, 50/60Hz for 1 min between cable terminals and case
Vibration resistance 10 to 500 Hz, 1.5-mm double amplitude at 100 m/s
2
in X, Y, and Z directions ten sweeps
each for 11 minutes
Shock resistance 500 m/s
2
, 3 times each in 6 directions (Total: 18 times)
Dimensions 40  53  23 (W H D) mm (excluding protruding parts)
Degree of protection IP67 (excluding connector section)
Material Case: Fluororesin (PTFE)
Fill resin: Epoxy resin
Cable: Fluororesin (FEP)
Cable length 10 m
Weight Approx. 270 g
Mounting method Two M4 screws
5
5.5
Operation indicator
23
11
13
40
28±0.2
53 10.5
27 6
11 dia.
Nameplate
Insulation
cover
Ferrite core
TFE insulated coaxial cable, 2.6 dia.
Standard length: 10 m
Connector
12
10000
+200
−50
25 50
23.5
(16.8 dia.)
14.5 dia.
27±0.2
28±0.2
Coil center
Two, M4 or 4.5 dia. holes
Case material
Epoxy resin
Fill resin
Cable
PTFE (fluororesin)
FEP (fluororesin)
Mounting Hole Dimensions
Two, M4 or
4.5 dia. holes
(Unit: mm)
