24
Section 1 Application Flowchart
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview

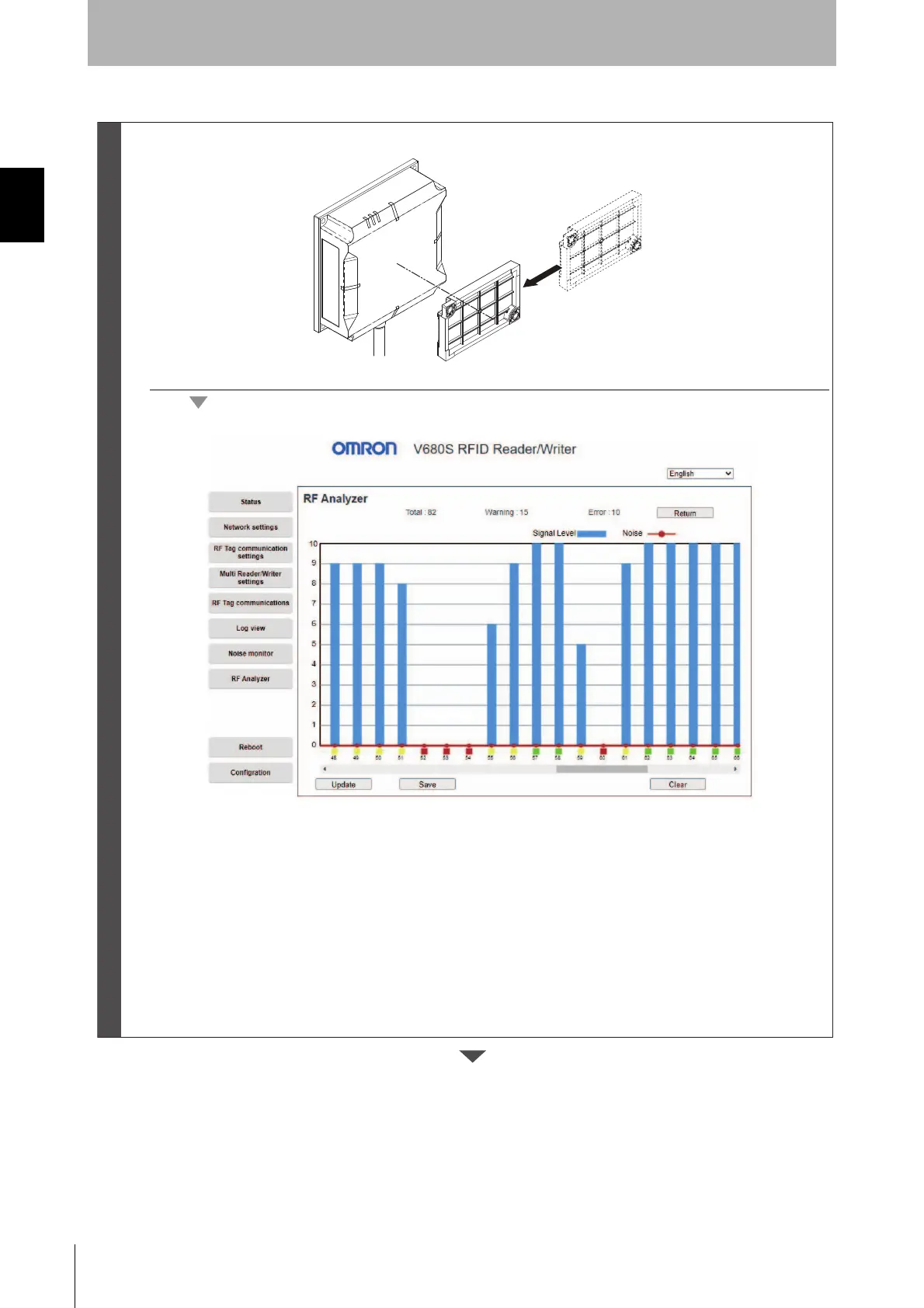

3. In this example, the position of the Tag is corrected according to the guidance.
4. You can check the graph display to check quantitative information on the degree of instability.
When you are finished, perform the step to communicate with the RF Tag again and check to see if
stable communications have been achieved.
Trial Operation
