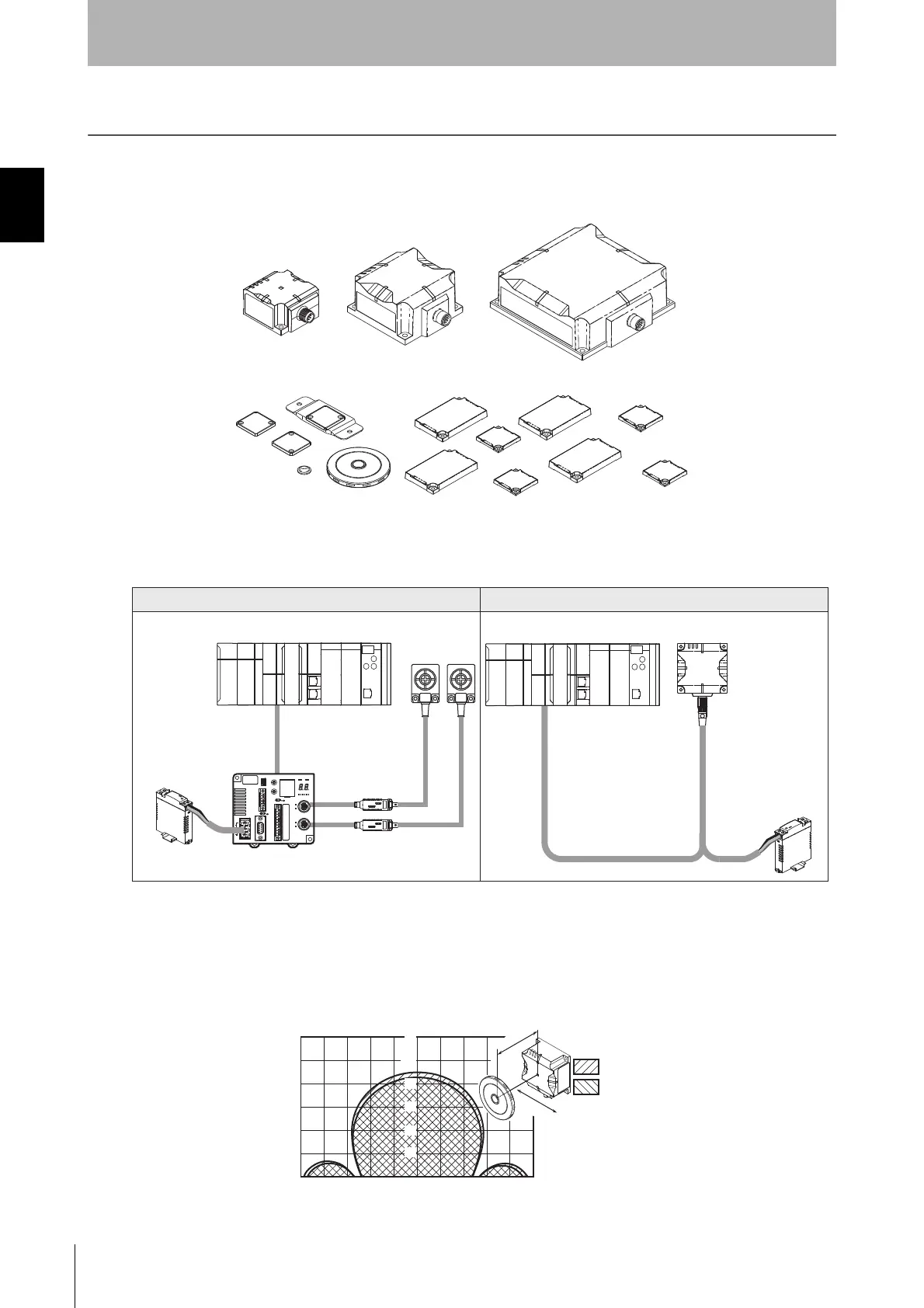

Section 1 Features
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview
Features
The integrated V680S-series Reader/Writers (V680S-HMD6@-ETN) perform communications with RF Tags
according to query from a host device.
 Integrated Structure
The controller, amplifier, and antenna are integrated into the Reader/Writer for a simple structure.
 Simple Installation
The Reader/Writer is automatically set to the best parameters according to the RF Tags to achieve
stable communications with more consistent communications and less omissions of RF Tags in the
communications field.
PLC
Antenna
PLC
Amplifier
ID Controller
Previous OMRON Models
V680S Integrated Reader/Writer
24-VDC
power supply
24-VDC
power supply
Reader/Writer
40
60
80
20
100
Y
-100 -80 -60 -40 -20 0 20 40 60 80X
Y
X
Read
Write
