Omron V680 Series User Manual

RFID System
User's Manual
(Modbus TCP)
Section 1 Product Specifications
Section 1
Product Overview
33

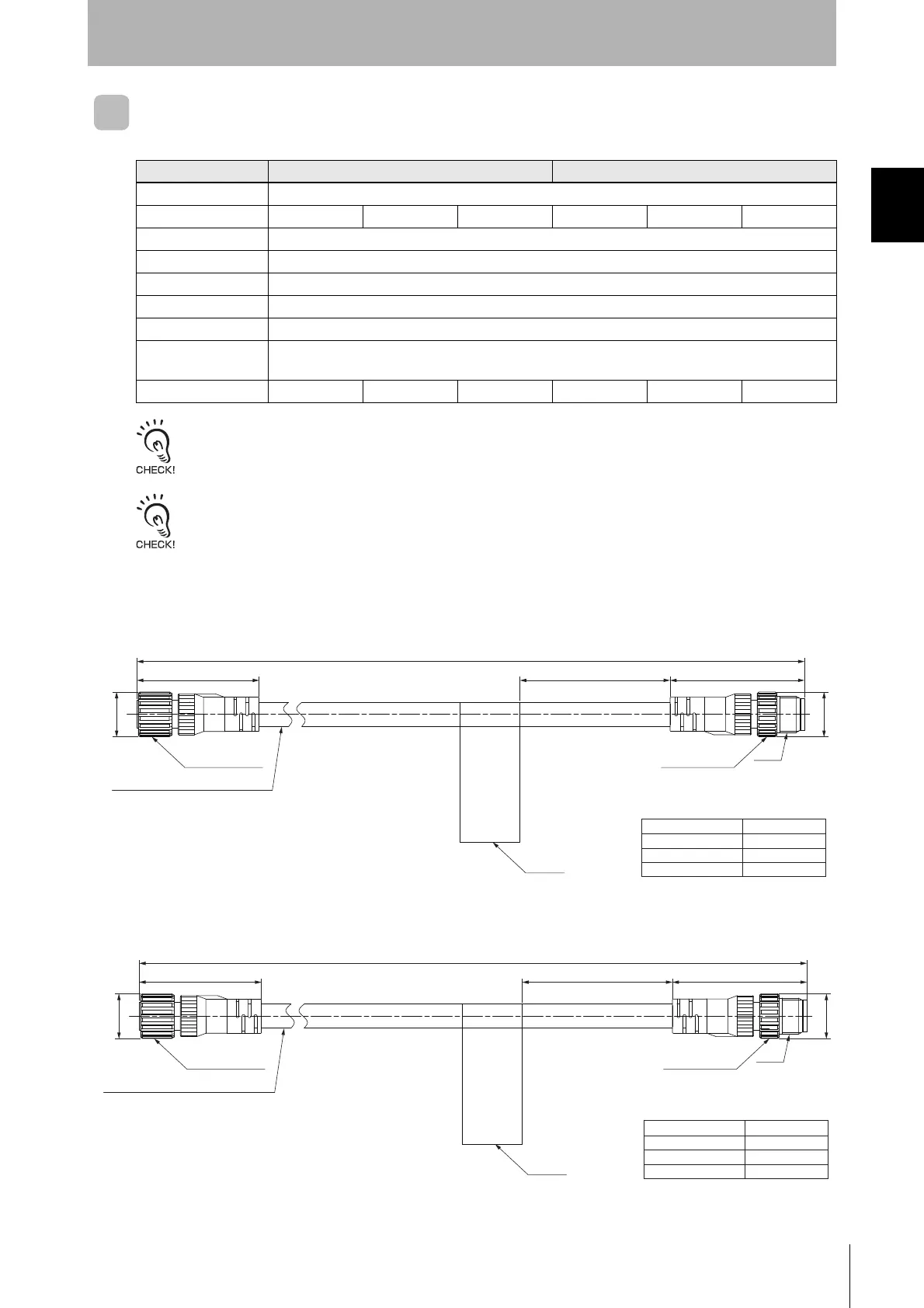

Extension Cable
 General Specifications
The maximum extendable cable length using the cable and extension cable is 60 m.
Only one extension cable can be used.
V680S-A4 is a standard cable. The wire color is gray.
V680S-A5 is a robot instrumentation cable. The wire color is black.
 Dimensions
 V680S-A40@M
 V680S-A50@M
Item Model V680S-A40@M V680S-A50@M
Type Special connector--Special connector
Length 10 m 20 m 50 m 2 m 10 m 20 m
Cable diameter 8 (number of conductors: 7)
Insulation resistance 20 MΩ min. (at 500 VDC) between cable terminals and sheath
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between cable terminals and sheath
Standards UL standards
Degree of protection IP67
Maximum extension
length
60 m
Mass Approx. 0.9 kg Approx. 1.8 kg Approx. 4.4 kg Approx. 0.2 kg Approx. 1.0 kg Approx. 2.0 kg
14.9 dia.
L
40.7
44.7(50)
M12
14.9 dia
CONNECTOR
LABEL
CONNECTOR
VINYL INSULATED ROUND CODE 8 dia.
TYPE
V680S-A40 10M
V680S-A40 20M
V680S-A40 50M
10,000
20,000
50,000
L LENGTH
+1000
0
+2000
0
+5000
0
(Unit: mm)
14.9 dia.
L
40.7
44.7(50)
M12
14.9 dia
CONNECTOR
LABEL
CONNECTOR
ROBOT INSTRUMENTATION CABLE 8 dia.
TYPE
V680S-A50 10M
V680S-A50 20M
V680S-A50 50M
2,000
10,000
20,000
L LENGTH
+150
0
+1000
0
+2000
0
(Unit: mm)
