66
Section 3 Component Names
RFID System
User's Manual
(Modbus TCP)
Section 3
Component Names

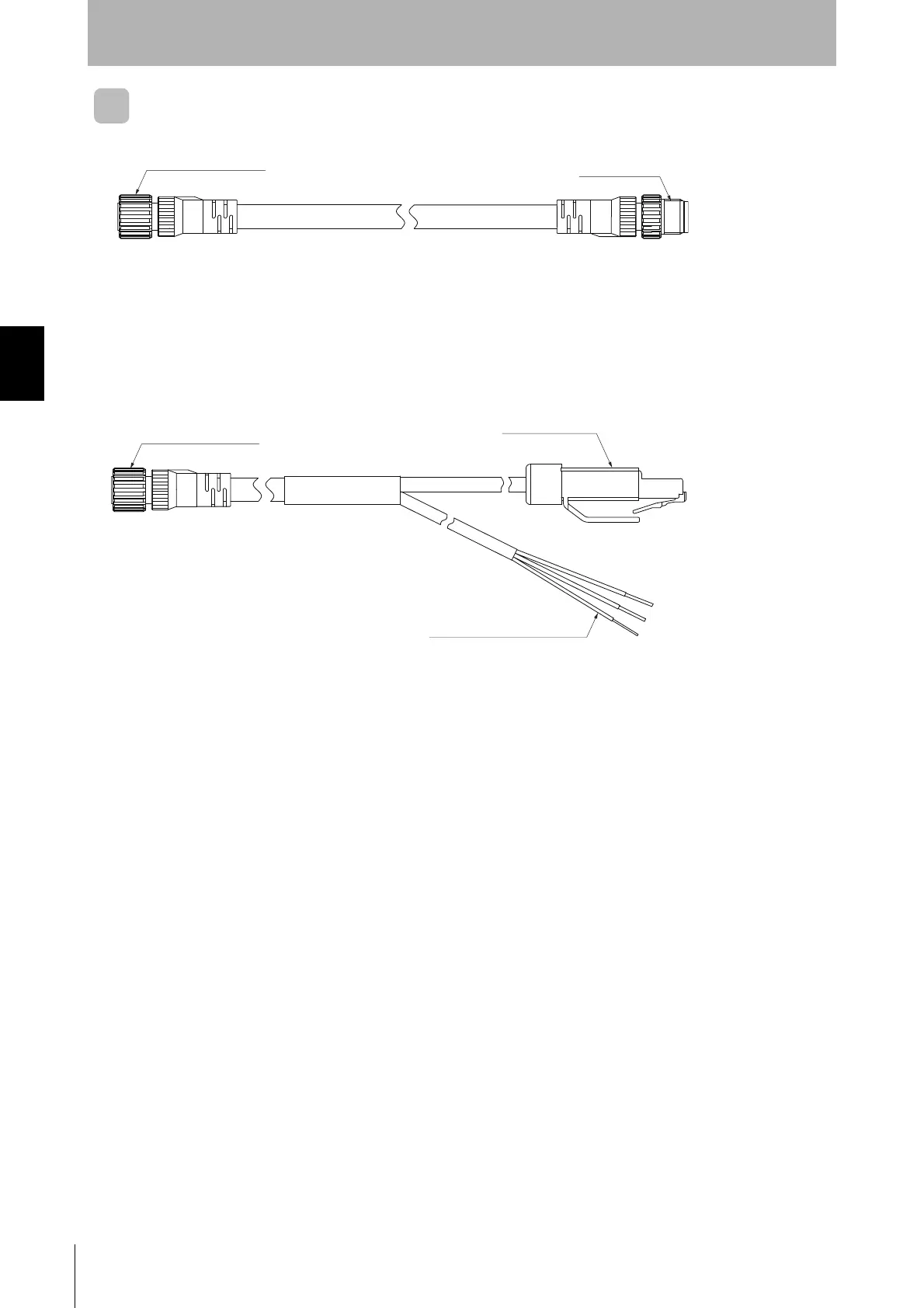

Cables
 V680S-A40 @M / -A50 @M
 Reader/Writer connector
This connector connects to the connector on the Reader/Writer.
 Cable Connector
This connector connects to the Reader/Writer connector on the V680S-A41@M / -A42@M / -A51@M
Cable.
 V680S-A41 @M / -A51 @M
 Reader/Writer connector
This connector connects to the connector on the Reader/Writer or to the V680S-A40 @M / -A50 @M
Extension Cable.
 Ethernet Connector
This connector connects to the Switching Hub.
 Power Supply and Signal Lines
These lines supply power and the control signal to the Reader/Writer.
Reader/Writer connector
Cable connector
Reader/Writer connector
Ethernet connector
Power supply lines and signal line
