RF Tag Installation Precautions
Section 11
RFID System
User's Manual
(Modbus TCP)
Section 11
Appendices
V680-D1KP66T-SP

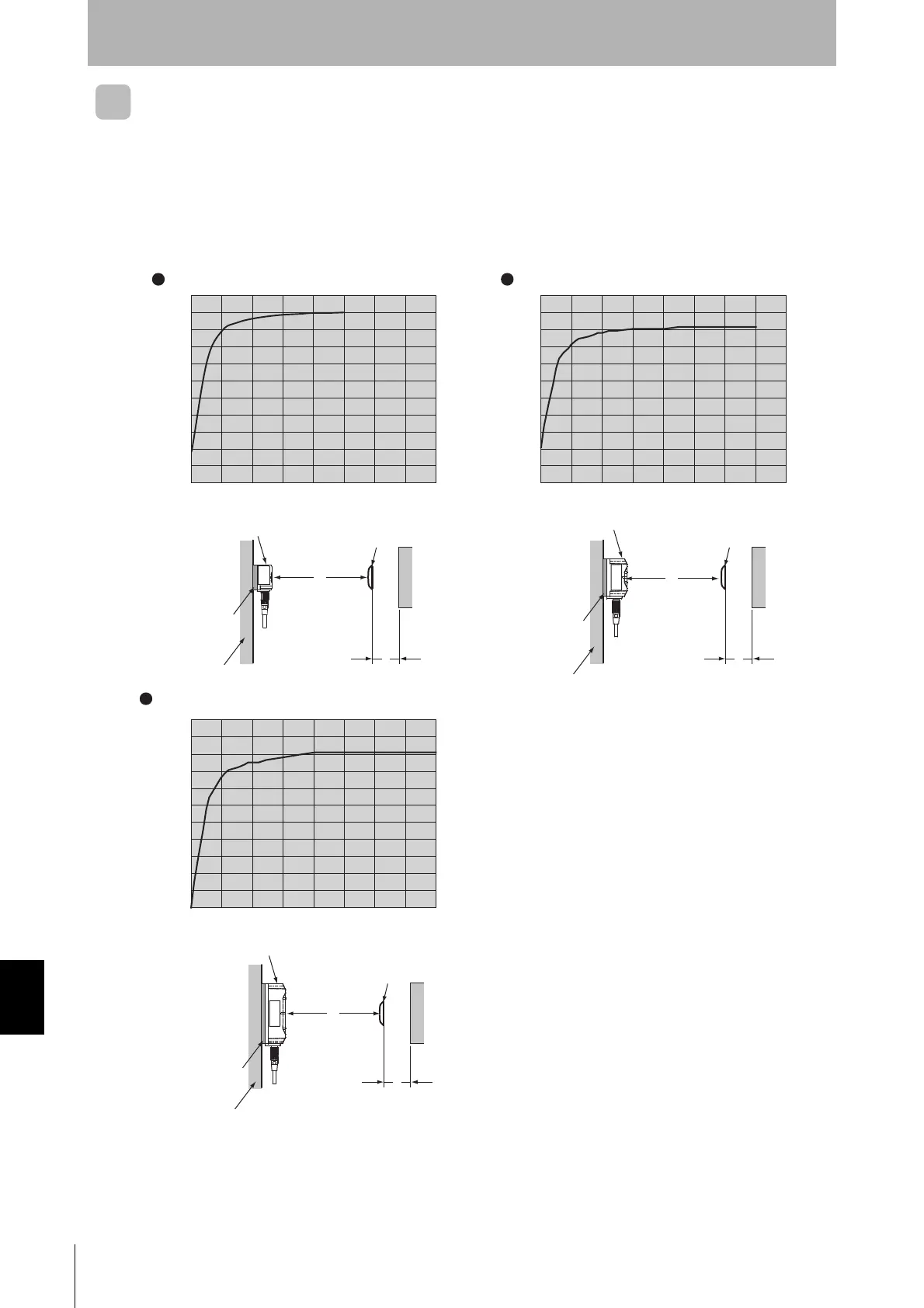

 Influence of Metal at Back Surface
The communications range will decrease if there is metal at the back of the V680-D1KP66T-SP RF
Tag. If the RF Tag is mounted on metallic material, use a non-metallic spacer (e.g., plastic or resin).
The following graphs show the relationship between the distance from the RF Tag to the metallic
surface and the communications range.
Y
Reader/Writer
RF Tag
Metal
Metal on back
Communications
range
V680S-HMD64-ETN and V680-D1KP66T-SP
V680S-HMD66-ETN and V680-D1KP66T-SP
X
0
10
20
30
40
50
60
70
80
90
100
(mm)
(%)
20
40
100 14060 80 120
X
X
0
10
20
30
40
50
60
70
80
90
100
(mm)
(%)
20
40
100 14060 80 120
0
10
20
30
40
50
60
70
80
90
100
(mm)
(%)
20
40
100 14060 80 120
V680S-HMD63-ETN and V680-D1KP66T-SP
Non-metallic material
Y
Reader/Writer
RF Tag
Metal
Metal on bac
Non-metallic material
Communications
range
Y
Reader/Writer
RF Tag
Metal
Metal on back
Non-metallic material
Communications
range
Distance (x) from surrounding metal
Communications range (range with metal at back surface = 100%)
Distance (x) from surrounding metal
Communications range (range with metal at back surface = 100%)
Distance (x) from surrounding metal
Communications range (range with metal at back surface = 100%)
