Section 6 Using Field Extension Mode
RFID System
User's Manual
(Modbus TCP)
Section 6
Functions
Using Field Extension Mode
Using Field Extension Mode

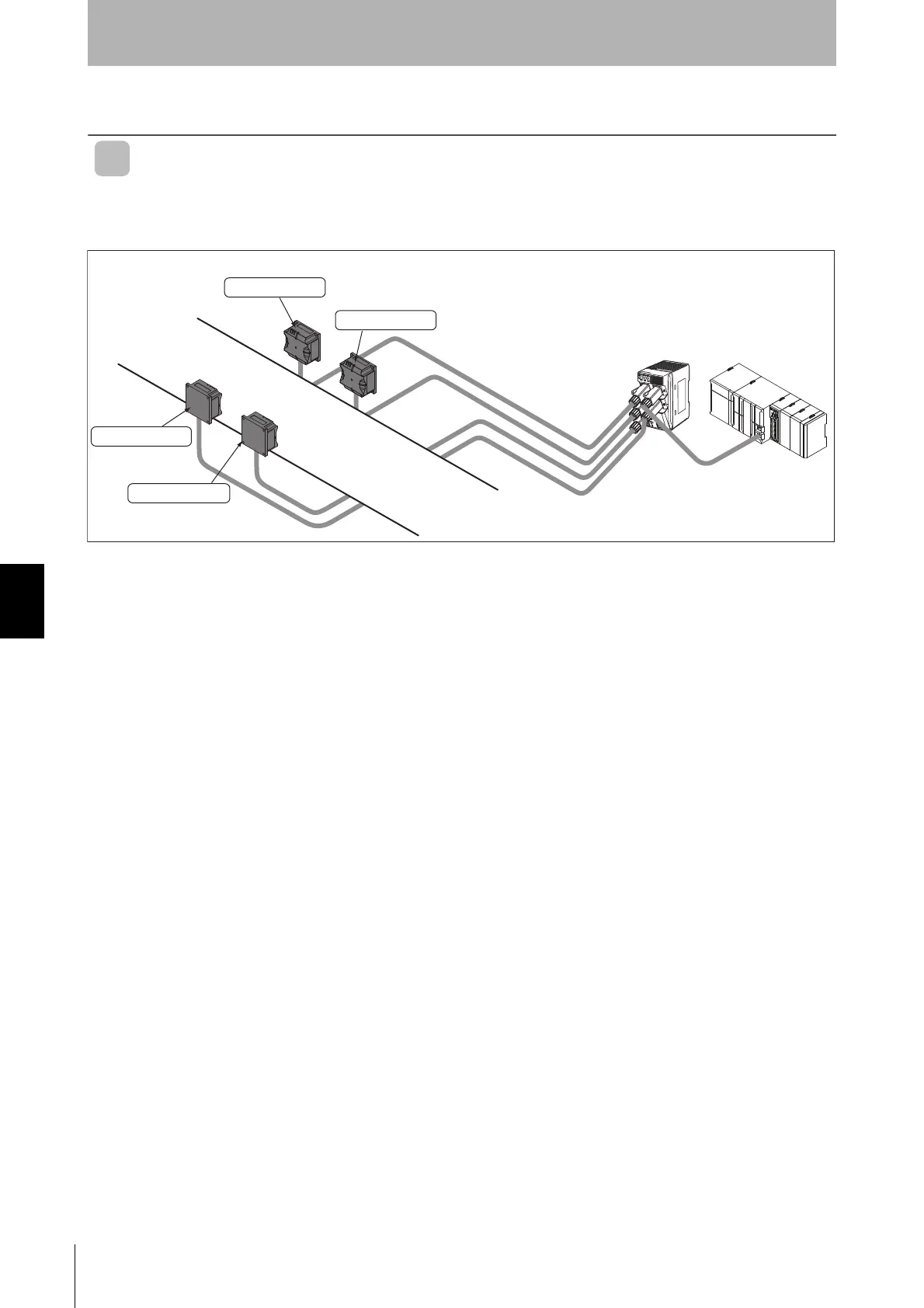

Use the following procedure for operation in Field Extension Mode. The following figure shows an
example in which four Reader/Writers are installed.
PLC
Switching Hub
Master Reader/Writer
Slave
Reader/Writer No. 1
IP:192.168.1.200
IP:192.168.1.201
IP:192.168.1.202
Slave
Reader/Writer No. 2
IP:192.168.1.203
Slave
Reader/Writer No. 3
