Omron V680 Series User Manual

Reader/Writer Installation Precautions
Section 11
Section 11
Appendices
279
RFID System
User's Manual
(Modbus TCP)
V680S-HMD64-ETN

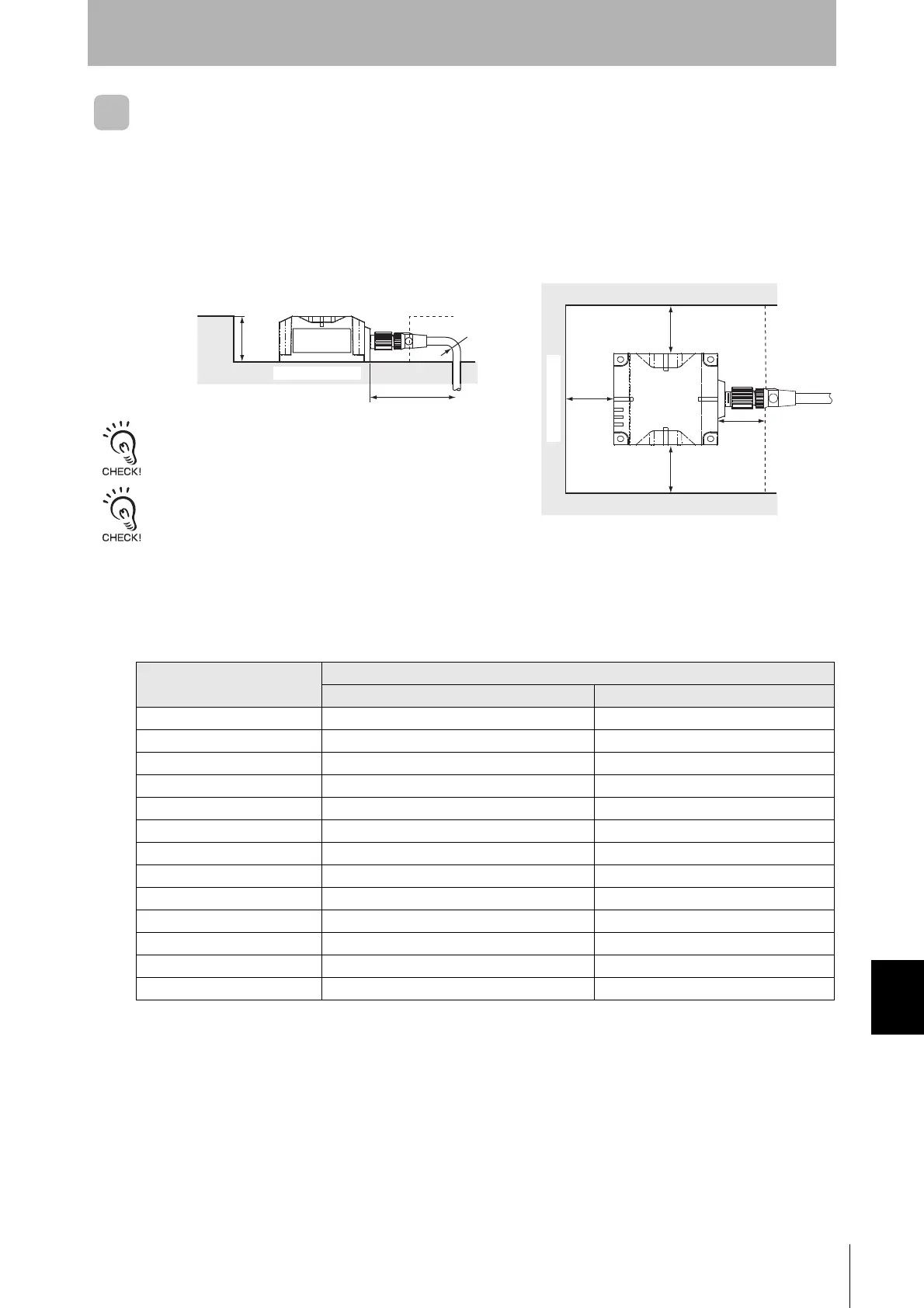

 Influence of Surrounding Metal on Reader/Writer (for Reference Only)
The Reader/Writer can be surface-mounted or it can be embedded in metal to protect it from collisions.
If you embed the Reader/Writer in metal, separate it at least 100 mm from any metallic surface to
prevent malfunctions. If the distance between surrounding metal and the Reader/Writer is less than
100 mm, the Reader/Writer communications range will be greatly reduced.
Do not allow the height of the metal to exceed the height of the Reader/Writer.
 Mutual Interference of Reader/Writers (for Reference Only)
To prevent malfunctioning due to mutual interference when using more than one Reader/Writer, leave
sufficient space between them as shown in the following diagrams.
If the distance between the Reader/Writers is too short, read / write distance will be reduced.
RF Tag Model
Mounting distance
Installing the Reader/Writer facing each other Installing the Reader/Writer in parallel
V680-D1KP54T 250 mm 125 mm
V680-D1KP66T 350 mm 150 mm
V680-D1KP66MT 250 mm 150 mm
V680-D1KP66T-SP 350 mm 150 mm
V680-D1KP58HTN 450 mm 125 mm
V680S-D2KF67 460 mm 170 mm
V680S-D2KF67M 220 mm 160 mm
V680S-D8KF67 400 mm 170 mm
V680S-D8KF67M 180 mm 160 mm
V680S-D2KF68 600 mm 180 mm
V680S-D2KF68M 380 mm 160 mm
V680S-D8KF68 600 mm 180 mm
V680S-D8KF68M 260 mm 160 mm
40 mm
max.
Metallic material
Radius:
40 mm min.
90 mm min.
100 mm min.
100 mm
min.
100 mm min.
100 mm
min.
Metallic material
Do not bend the cable into a curve tighter than 40 mm
in radius.
The communications range will be reduced signifi-
cantly if the Reader/Writer is installed closer than 100
mm to metal surfaces.
