32
Section 1 Product Specifications
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview

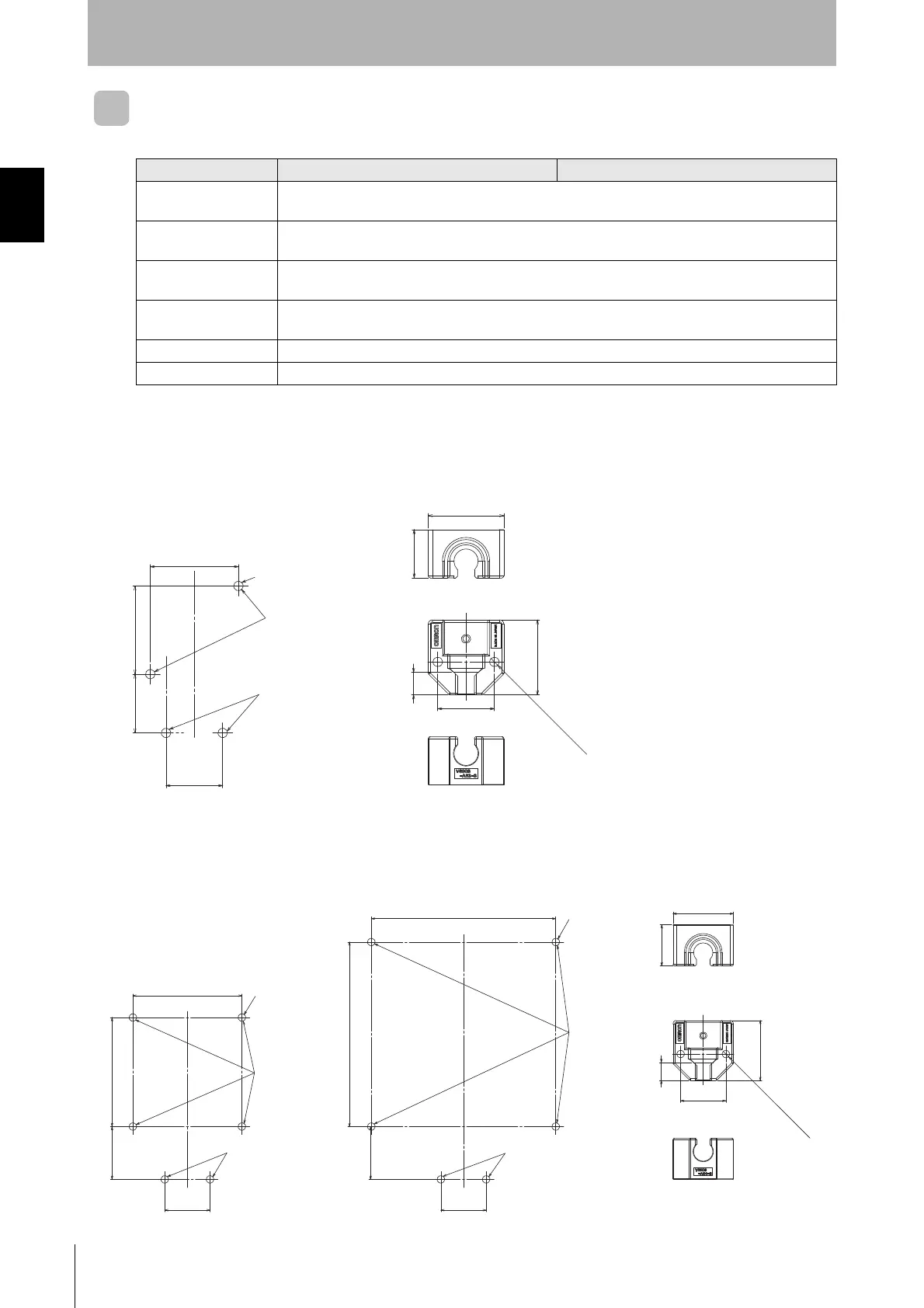

Connector Cover (Slim Type)
General Specifications
Dimensions
V680S-A63-S
V680S-A64
Item Model V680S-A63-S V680S-A64-S
Ambient operating
temperature
-10 to 55°C (with no icing)
Ambient operating
humidity
25% to 85% (with no condensation)
Ambient storage
temperature
-25 to 70°C (with no icing)
Ambient storage
humidity
25% to 85% (with no condensation)
Materials PBT resin
Installation method Fixing screws in two locations
*1
*1. In addition to the reader/writer mounting holes, two mounting holes are required for the connector cover.
42 ±0.2
27±0.2
28 ±0.2
42 ±0.2
4-M4
Mount Hole Dimensions
Reader/Writer
Mounting hole
Connector Cover
Mounting hole
27
Two, 4.5-dia.
10.7
35.7
23
36
(Unit: mm)
110 ±0.2
65 ±0.2
65 ±0.2
27 ±0.2
110 ±0.2
27 ±0.2
31.5 ±0.2
31.5 ±0.2
6-M4
Mounting Hole Dimensions
(V680S-HMD64-ETN)
6-M4
Connector Cover
Mounting hole
Reader/Writer
Mounting hole
Reader/Writer
Mounting hole
Mounting Hole Dimensions
(V680S-HMD66-ETN)
Connector Cover
Mounting hole
27
Two, 4.5-dia.
10.7
35.7
36
24.5
(Unit: mm)
