RF Tag Installation Precautions
Section 11
Section 11
Appendices
319
RFID System
User's Manual
(Modbus TCP)
V680S-D8KF68M

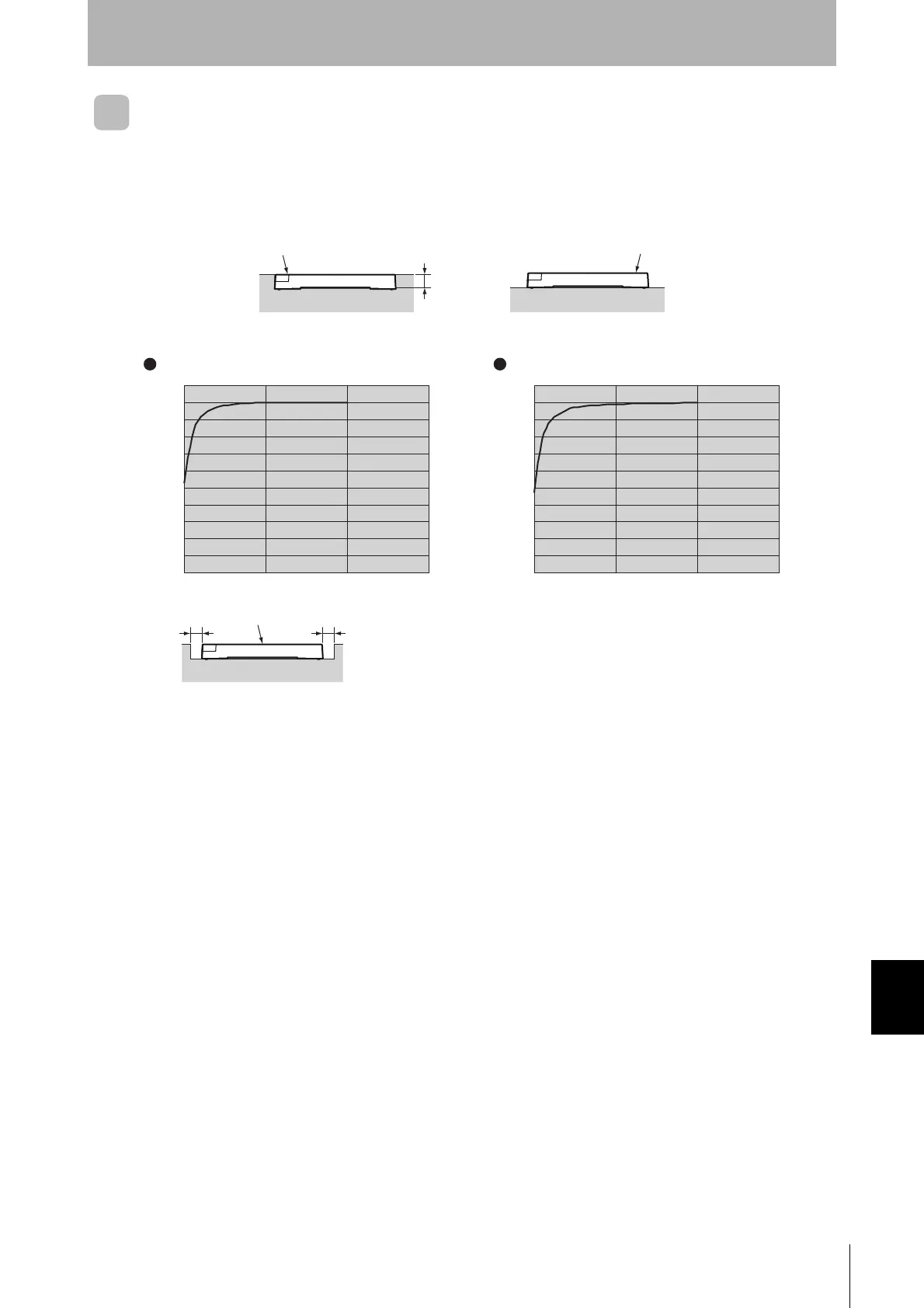

Influence of Surrounding Metal
The V680S-D8KF68M can be surface-mounted or it can be embedded in metal. However, do not allow
the height of the metal to exceed the height of the V680S-D8KF68M.
Embedded
RF Tag
Surface-mounted
Metallic material
Metallic material
10 mm max.
RF Tag
0
10
20
30
40
50
60
70
80
90
100
50 100 (mm)
(%)
Distance (x) from surrounding metal
0
10
20
30
40
50
60
70
80
90
100
50 100 (mm)
(%)
Distance (x) from surrounding metal
Communications range (range with
metal at back surface = 100%)
V680S-HMD64-ETN and V680S-D8KF68M
Communications range (range with
metal at back surface = 100%)
V680S-HMD66-ETN and V680S-D8KF68M
Metallic material
RF Tag
XX
To Next Page
