Section 4 Connections and Wiring
Section 4
Installation and Connections
RFID System
User's Manual
(Modbus TCP)
91
Extending the Cable
Connecting Method

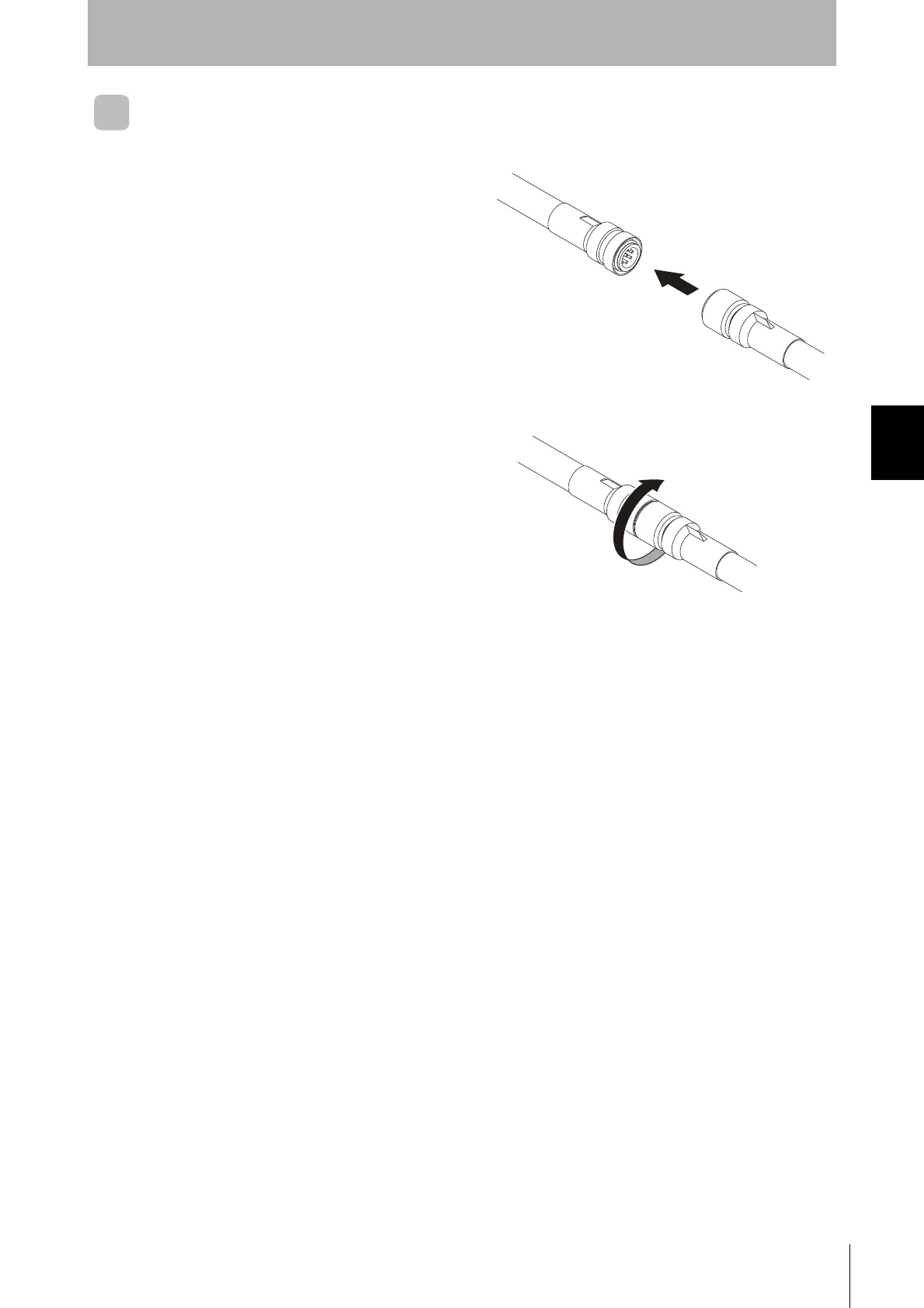

1. Insert the connector on the V680S-A41@M/-
A51@M Cable into the connector on the V680S-
A40@M/-A50@M Extension Cable.
2. Turn the connector on the V680S-A41@M/-
A51@M Cable clockwise to lock it in place.
Recommended tightening torque: 0.39 to 0.49 N·m
