RF Tag Installation Precautions
Section 11
Section 11
Appendices
295
RFID System
User's Manual
(Modbus TCP)
 Influence of Inclination
Install the Reader/Writer and RF Tags so that the Reader/Writer and RF Tags are as parallel to each
other as possible.
Communications will be possible even if the Reader/Writer and RF Tags are not parallel to each other;
however, the communications range is affected by the inclination between them as shown in the
following graphs.

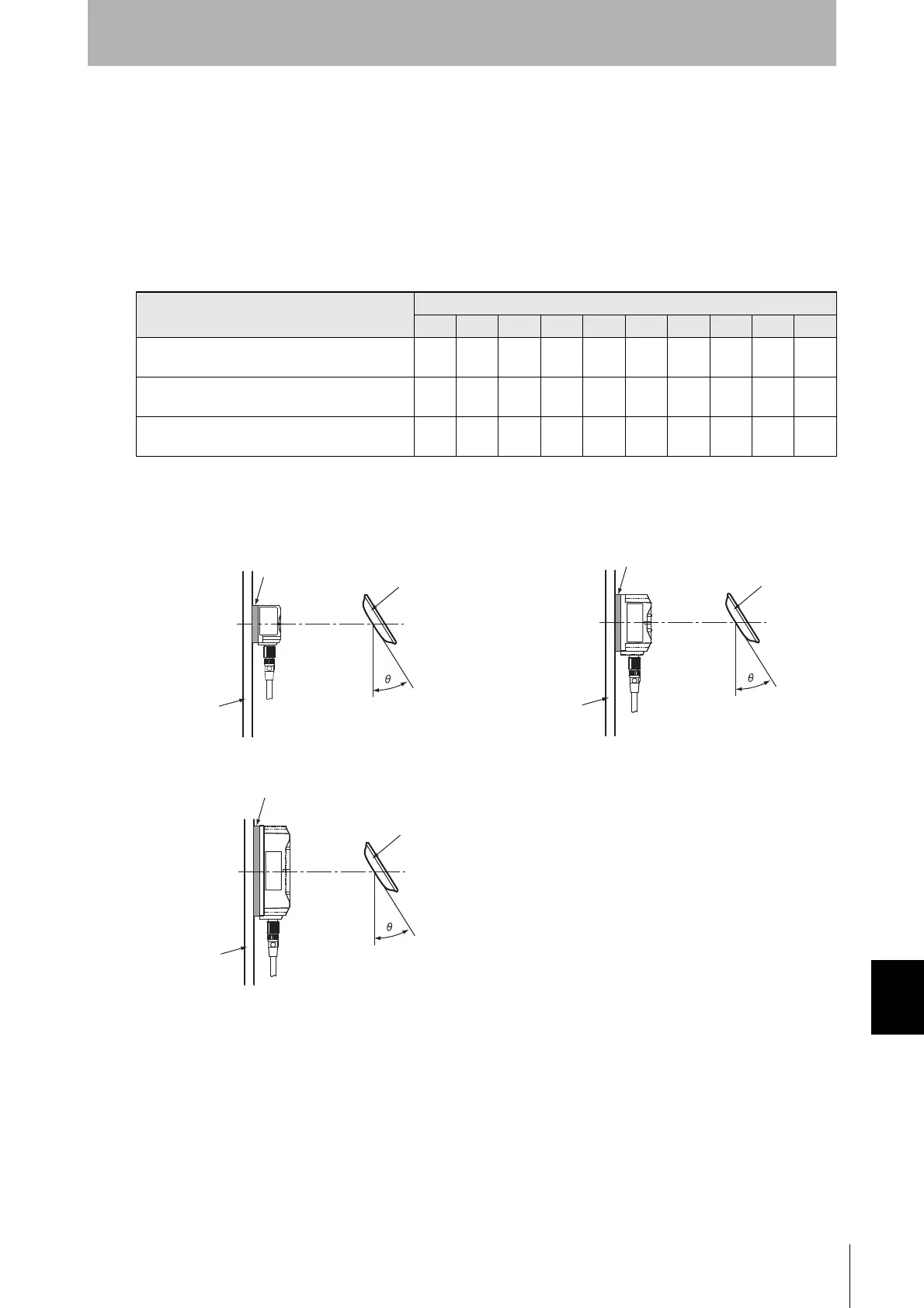

 Rates of Change in Communications Range for Inclination of V680-D1KP66T-SP
 Measurement Conditions
RF Tag inclination (θ°)
0 10 20 30 40 50 60 70 80 90
V680S-HMD63-ETN and V680-D1KP66T-SP
0% -1% -2% -4% -8% -13% -19% -29% -44% ---
V680S-HMD64-ETN and V680-D1KP66T-SP
0% -1% -3% -5% -9% -14% -21% -32% -48% ---
V680S-HMD66-ETN and V680-D1KP66T-SP
0% -1% -3% -6% -10% -17% -27% -41% -62% ---
• V680S-HMD63-ETN and V680-D1KP66T-SP • V680S-HMD64-ETN and V680-D1KP66T-SP
• V680S-HMD66-ETN and V680-D1KP66T-SP
Non-metallic
material
Reader/Writer
RF Tag
Metallic material
RF Tag
Metallic material
Reader/Writer
Non-metallic material
RF Tag
Metallic material
Reader/Writer
Non-metallic material
