Section 1 Product Specifications
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview

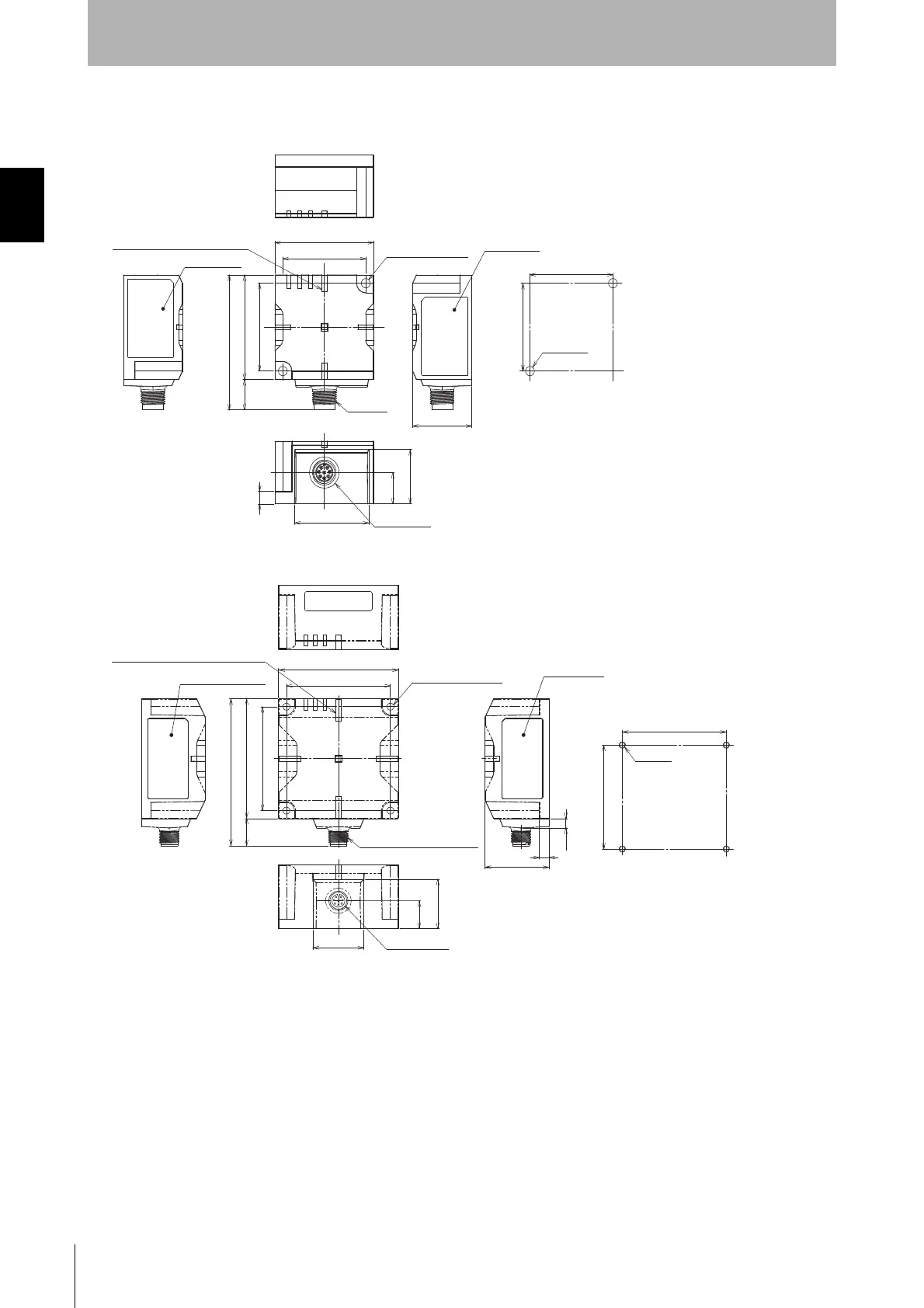

 Dimensions
 V680S-HMD63-ETN
 V680S-HMD64-ETN
42 50
42
50
(14.5)
Two, 4.5-dia.
mounting holes
64.5
M12×1
30
37.5
Seven, operation indicators
Standards label
Nameplate
26
15
Connector
6
Two,
M4 holes
Mount Hole Dimensions
42±0.2
42±0.2
(Unit: mm)
65 75(17)
92
65
75
32
31
17.5
5.9
6
40
Connector
Seven, Operation Indicators
Four, 4.5-dia.
mounting holes
65±0.2
65±0.2
4-M4
Mounting Hole Dimensions
Standards label
M12 threaded section
Nameplate
(Unit: mm)
