RF Tag Installation Precautions
Section 11
RFID System
User's Manual
(Modbus TCP)
Section 11
Appendices

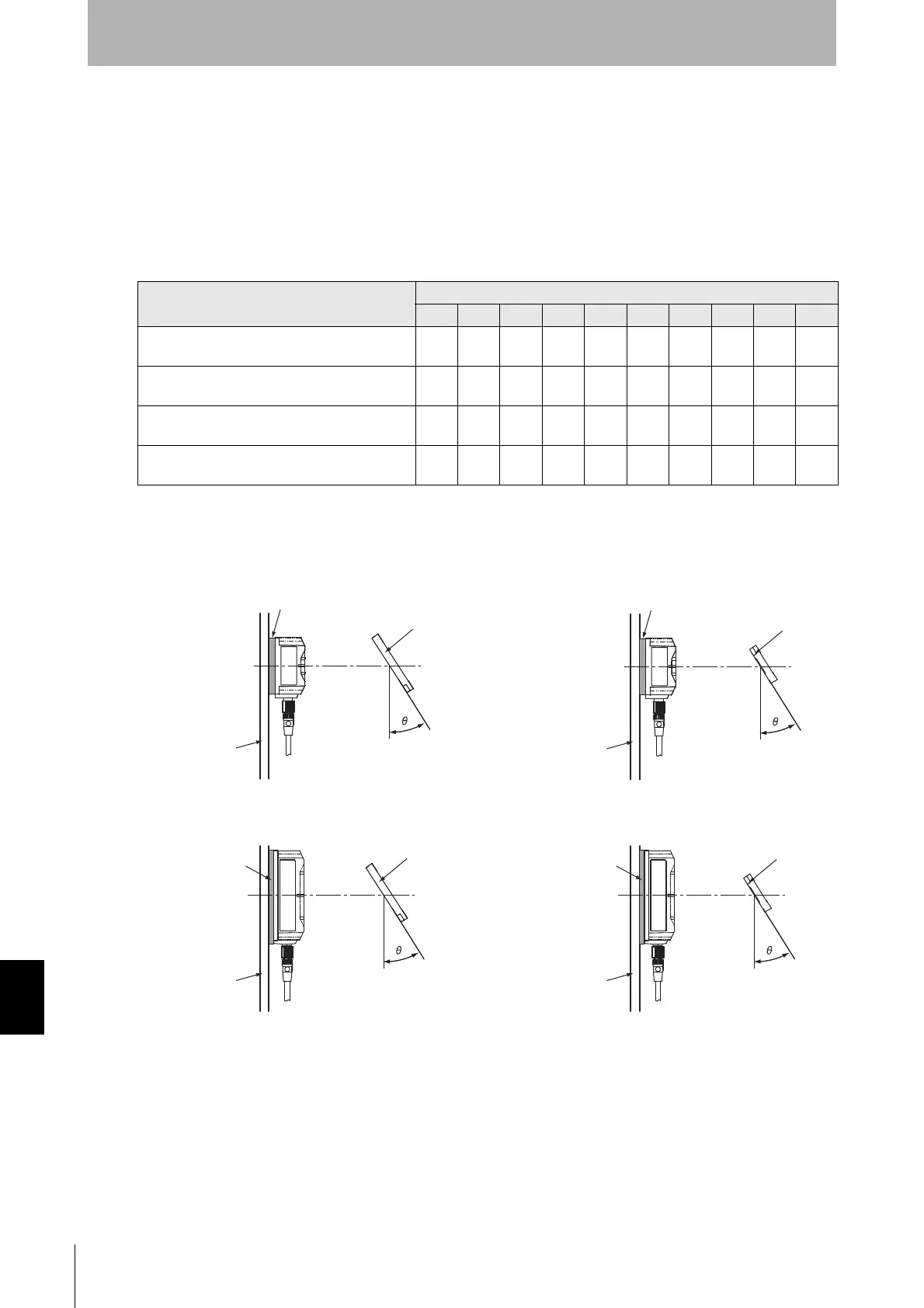

 Influence of Inclination
Install the Reader/Writer and RF Tags so that the Reader/Writer and RF Tags are as parallel to each
other as possible.
Communications will be possible even if the Reader/Writer and RF Tags are not parallel to each other;
however, the communications range is affected by the inclination between them as shown in the
following graphs.
 Rates of Change in Communications Range for Inclination of V680S-D2KF68
 Measurement Conditions
RF Tag inclination (θ°)
0 10 20 30 40 50 60 70 80 90
V680S-HMD64-ETN and V680S-D2KF68
horizontally
-0% -1% -2% -3% -6% -9% -14% -21% -33% -59%
V680S-HMD64-ETN and V680S-D2KF68
vertically
-0% -1% -3% -5% -8% -13% -20% -28% -41% -66%
V680S-HMD66-ETN and V680S-D2KF68
horizontally
-0% -1% -2% -3% -6% -11% -16% -25% -39% -65%
V680S-HMD66-ETN and V680S-D2KF68
vertically
-0% -1% -2% -5% -8% -13% -20% -29% -42% -68%
• V680S-HMD64-ETN and V680S-D2KF68
Horizontally
• V680S-HMD64-ETN and V680S-D2KF68
Vertically
• V680S-HMD66-ETN and V680S-D2KF68
Horizontally
• V680S-HMD66-ETN and V680S-D2KF68
Vertically
Non-metallic material
Reader/Writer
RF Tag
Metallic material
Non-metallic material
Reader/Writer
RF Tag
Metallic material
Non-metallic material
Reader/Writer
Metallic material
RF Tag
Non-metallic material
Reader/Writer
Metallic material
RF Tag
