Section 1 Product Specifications
RFID System
User's Manual
(Modbus TCP)
Section 1
Product Overview
V680S-D2KF67/-D2KF67M/-D8KF67/-D8KF67M

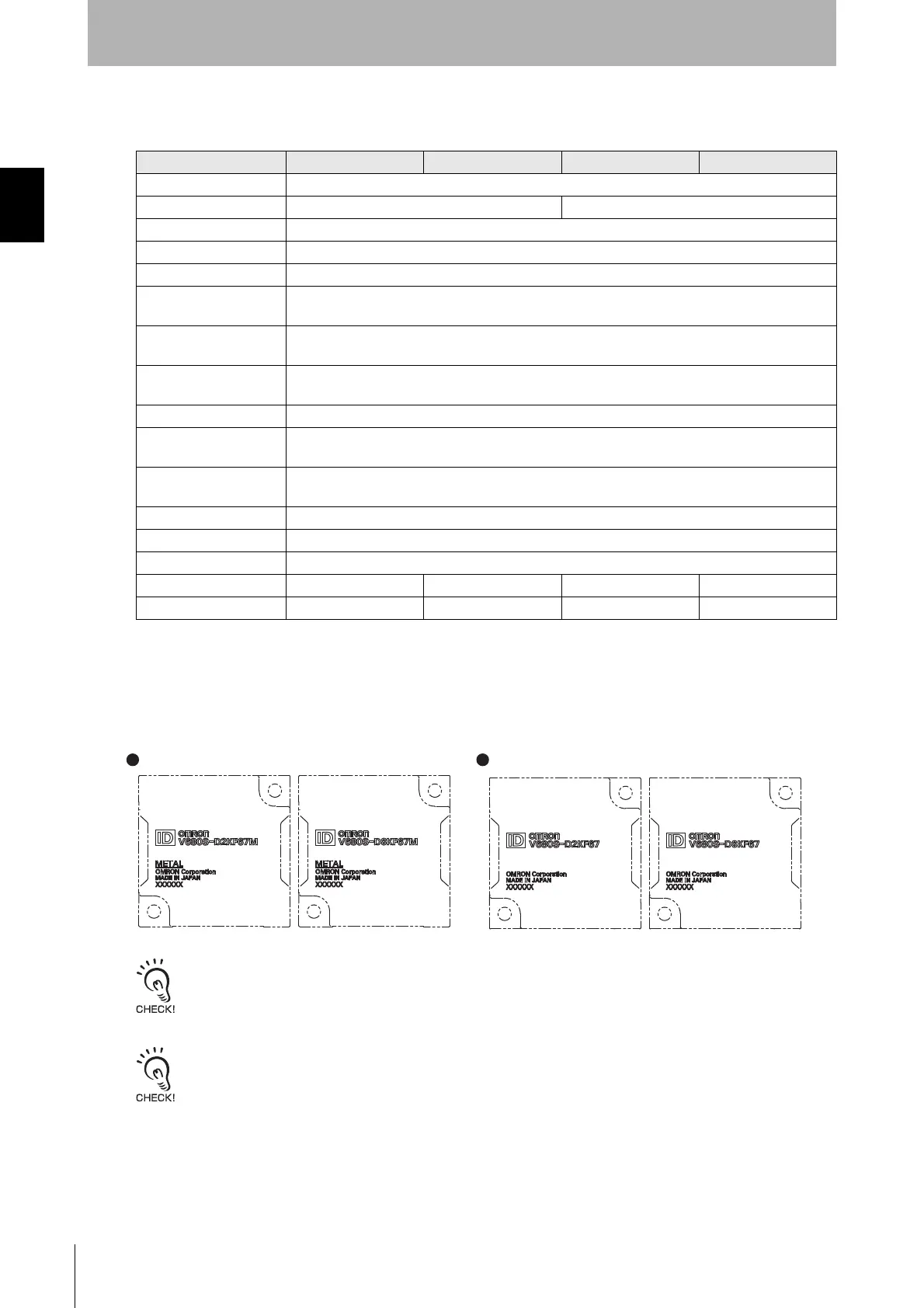

General Specifications
The V680S-D2KF67M/-D8KF67M must be mounted on a metallic surface. The markings on the V680-
D2KF67/-D8KF67 and V680-D2KF67M/-D8KF67M are shown below.
The marked surface is the communications surface. When mounting the RF Tag, face the marked surface toward the
Reader/Writer.
You can use the V680S-D8KF67@ with Reader/Writers with firmware version 2.00 or higher.
Item Model V680S-D2KF67 V680S-D2KF67M V680S-D8KF67 V680S-D8KF67M
Compliance standards ISO/IEC 18000-3 (15693)
Memory capacity 2,000 bytes (user area) 8,192 bytes (user area)
Memory type FRAM
Data retention 10 years after writing (85°C or less)
Write Endurance One trillion times per block (85°C or less), Access frequency
See Note 1.
: One trillion times
Ambient operating
temperature
-20 to 85°C (with no icing)
Ambient operating
humidity
35% to 85%
Ambient storage
temperature
-40 to 125°C (with no icing)
Ambient storage humidity 35% to 85%
Degree of protection IP68 (IEC 60529:2001), Oil resistance equivalent to IP67G (JIS C 0920:2003, Appendix 1)
See Note 2.
IPX9K (DIN 40 050)
Vibration resistance No abnormality after application of 10 to 2,000 Hz, 1.5-mm double amplitude, acceleration: 150 m/
s
2
, 10 sweeps each in X, Y, and Z directions for 15 minutes each
Shock resistance No abnormality after application of 500 m/s
2
, 3 times each in X, Y, and Z directions (Total: 18 times)
Dimensions 40 × 40 × 5 mm (W × H × D)
Materials PPS resin
Weight Approx. 11.5 g Approx. 12 g Approx. 11.5 g Approx. 12 g
Metal countermeasures None Provided None Provided
Note 1. The number of accesses is the total number of reads and writes.
2. Oil resistance has been tested using a specific oil as defined in the OMRON test method.
V680S-D2KF67M/-D8KF67M V680S-D2KF67/-D8KF67
