Section 4 Installation
Section 4
Installation and Connections
RFID System
User's Manual
(Modbus TCP)
73
V680S-HMD64-ETN

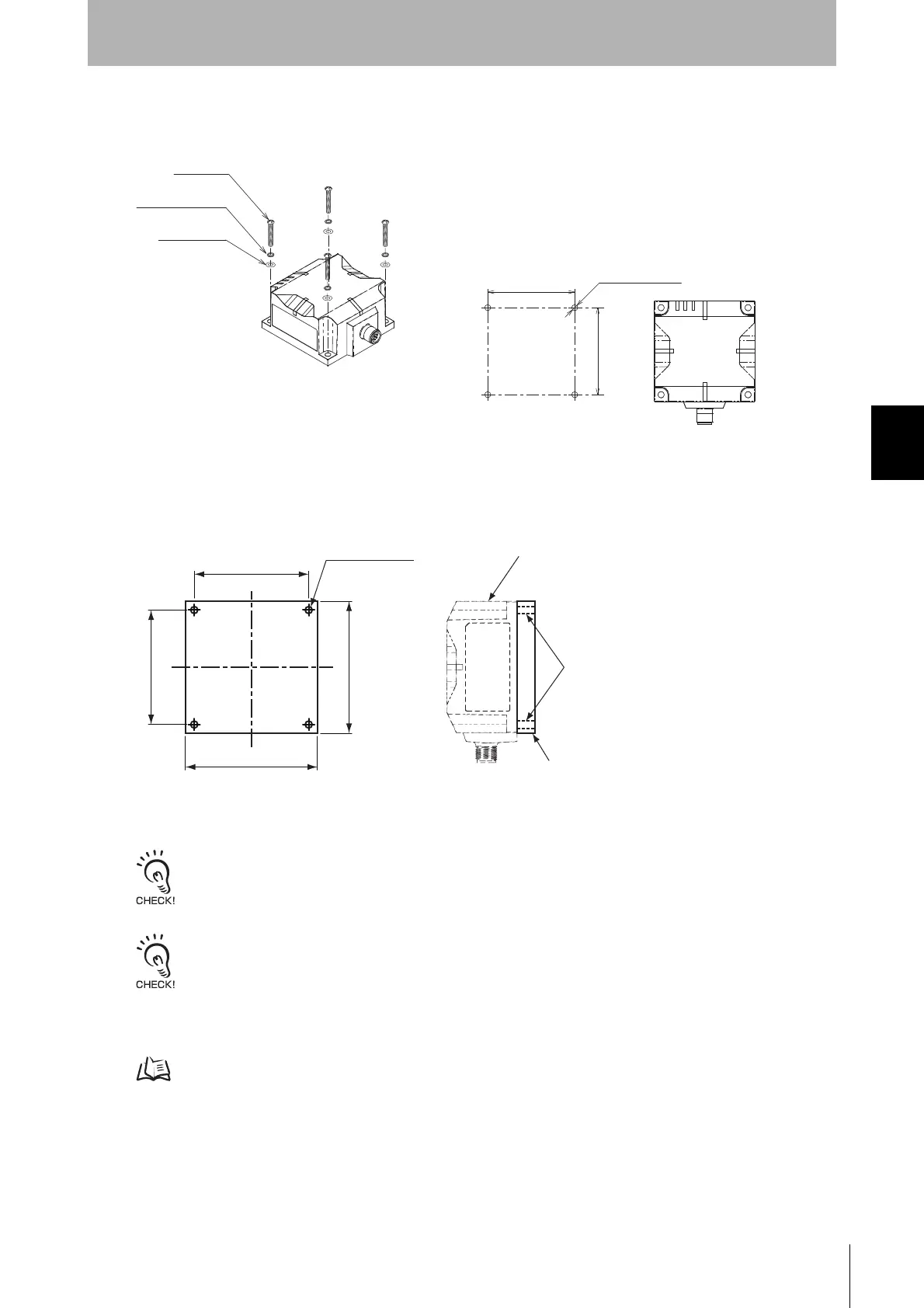

Install the Reader/Writer with four M4 screws. Use both spring washers and flat washers.
When you install the Reader/Writer, prepare the metal plate shown in the following figure.
When the metal plates size is larger than the below illustration, communication range will change.
Although it is possible to use SUS, aluminum or brass in addition to steel as the metal plate, communications range is
influenced by the material. Do not use resin as the metal plate.
The recommended tightening torque for M4 screws is 1.2 N·m.
Refer to Reader/Writer Installation Precautions in Section 11 Appendices for information of surrounding metal and Mutual
Interference of Reader/Writers.
p.278
Spring washer
Flat washer
65±0.2
65±0.2
Four, M4 holes
M4 screw
(Unit: mm)
Mounting Hole Dimensions
Metal plate
Screw mounting
75
(Unit: mm)
75
65±0.2
65±0.2
Material: Steel
Four, M4 holes
V680S-HMD64-ETN
