86
Section 4 Installation
RFID System
User's Manual
(Modbus TCP)
Section 4
Installation and Connections

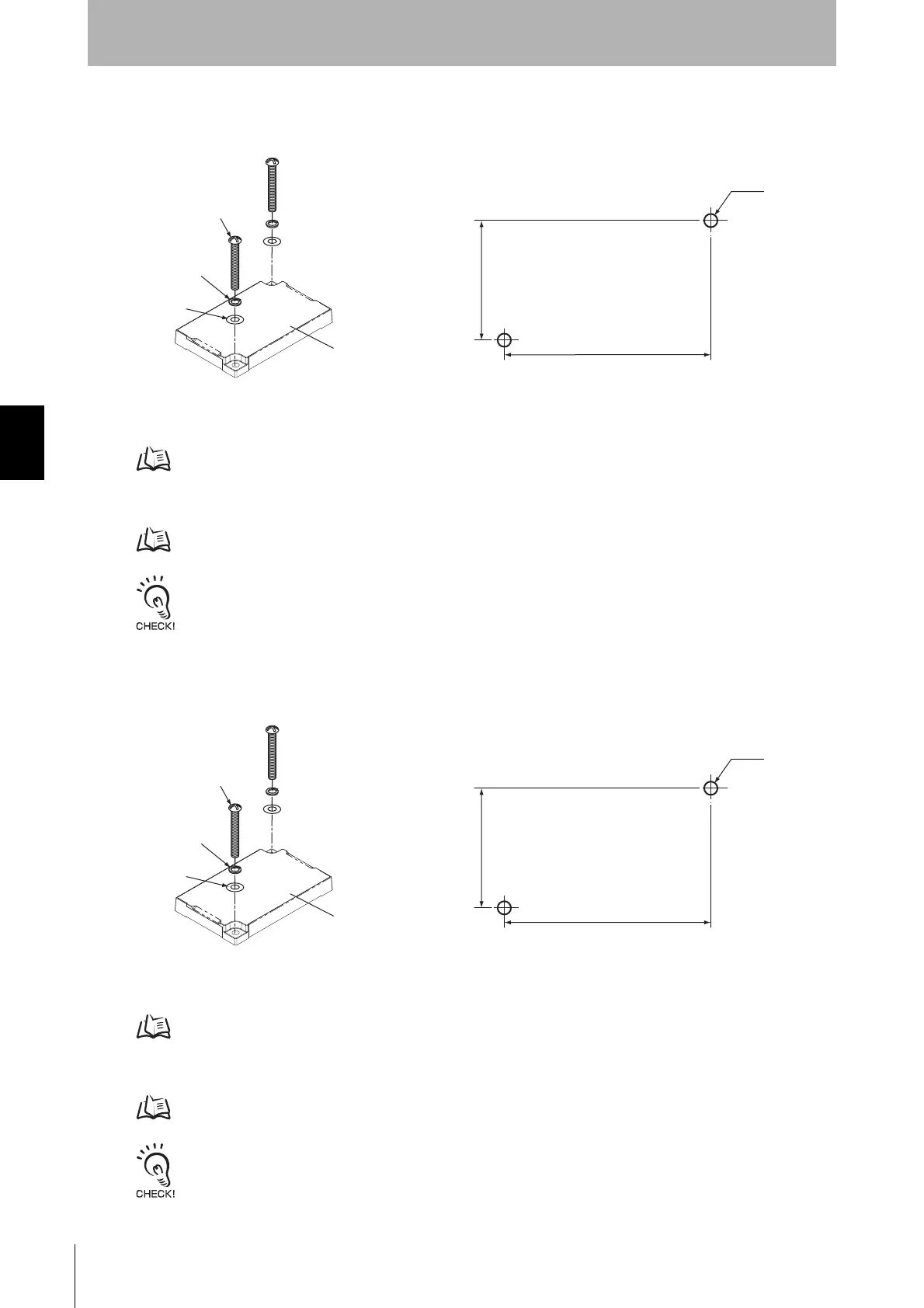

V680S-D2KF68/-D8KF68
Mount the RF Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m.
Refer to RF Tag Installation Precautions in Section 11 Appendices for information on the effect of metal at the back surface,
Mutual Interference of RF Tags and Influence of Inclination of the V680S-D2KF68.
p.283
Refer to RF Tag Installation Precautions in Section 11 Appendices for information on the effect of metal at the back surface,
Mutual Interference of RF Tags and Influence of Inclination of the V680S-D8KF68.
p.283
You can use the V680S-D8KF68 with Reader/Writers with firmware version 2.00 or higher.
V680S-D2KF68M/-D8KF68M
Mount the RF Tag with M4 screws. Tighten the screws to a torque of 0.7 to 1.2 N·m.
Refer to RF Tag Installation Precautions in Section 11 Appendices for information on the effect of surrounding metal, Mutual
Interference of RF Tags and Influence of Inclination on the V680S-D2KF68M.
p.283
Refer to RF Tag Installation Precautions in Section 11 Appendices for information on the effect of surrounding metal, Mutual
Interference of RF Tags and Influence of Inclination on the V680S-D8KF68M.
p.283
You can use the V680S-D8KF68M with Reader/Writers with firmware version 2.00 or higher.
44
76
Two, M4 holes
M4 screw
Spring washer
Flat washer
Marked side
(Unit: mm)
44
76
Two, M4 holes
M4 screw
Spring washer
Flat washer
Marked side
(Unit: mm)
