Omron VARISPEED V7

108

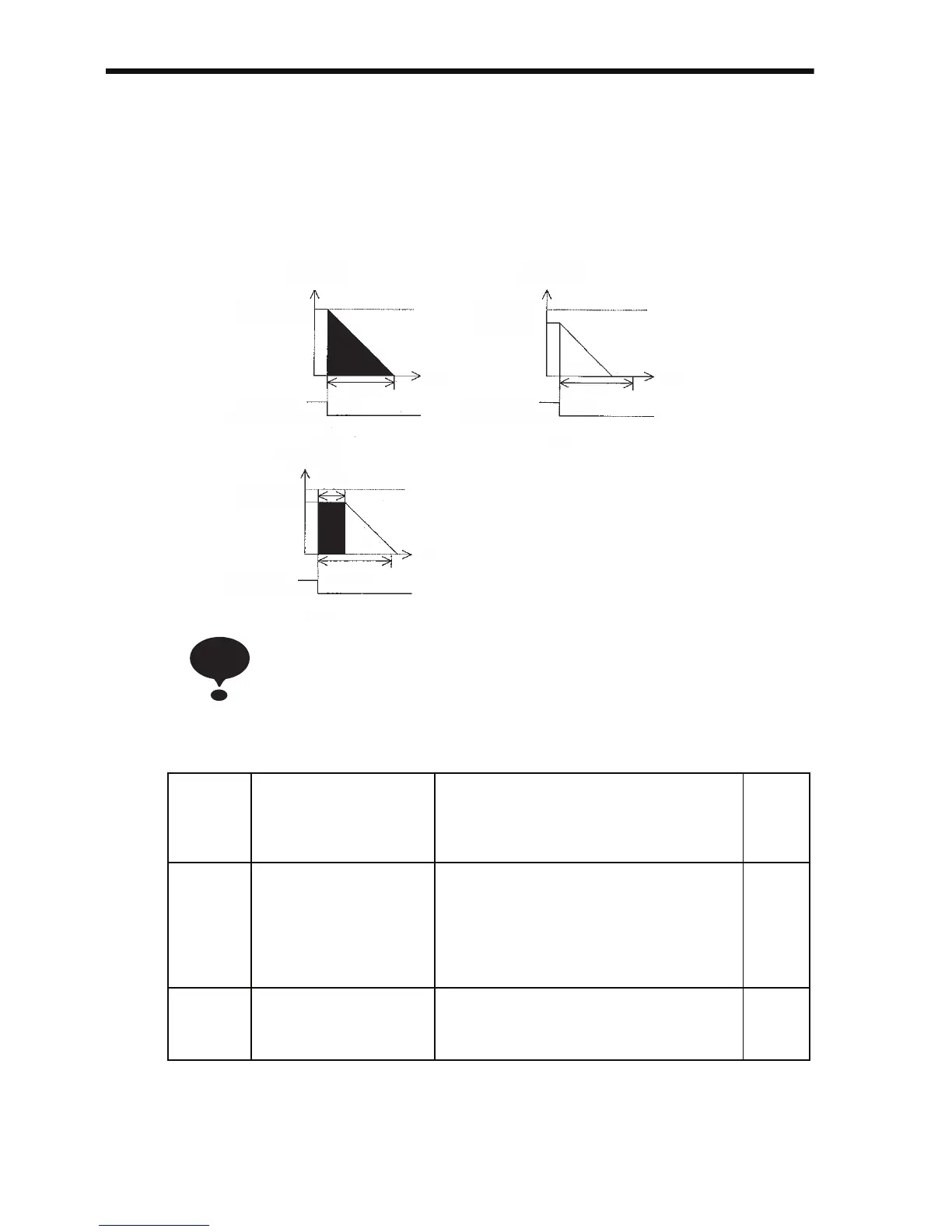

• Controlling the Stop Position Regardless of Output Frequency
Control is performed so that S, the travel distance from maximum
output frequency until decelerating to a stop, and S1, the travel dis-
tance from any frequency (less than maximum output frequency)
until decelerating to a stop, are the same. (Control is performed to
stop at the same position when the Run Command is input from a
sequence input terminal regardless of the output frequency.)
Simple positioning control is not performed if the value of the
Maximum Output Frequency (n011) multiplied by the Decel-
eration Time (n020, n022, n042, or n044) is more than 8,589.
For example, simple positioning control is not performed if
the Deceleration Time is set to 143 s or higher at 60 Hz.
Con-
stant
No.
Name Description Fac-
tory
Set-
ting
n143 Sequence Input Re-
dundant Reading
Selection (Stop Po-
sition Control Selec-
tion)
0: 8-ms redundant reading
(Stop position control disabled.)
1: 2-ms redundant reading with only
stop position deviation reduction
2: 2-ms redundant reading with sim-
ple positioning control
0
n144 Stop Position Con-
trol Compensation
Gain
Setting unit: 0.01
Setting range: 0.50 to 2.55
1.00
Max Output Frequency
Max Output Frequency
SPEED
FORWARD RUN
Command
RUN
STOP
Tdec
t
Max Output Frequency
SPEED
FORWARD RUN
Command
STOP
RUN
Tdec
t
FORWARD RUN
Command
RUN
STOP
Tdec
t
Fig.1
Fig.2
Fig.3
S1
Output Frequency
S
Output Frequency
T1
S1
S-S1
SPEED
NOTE
