* 1. For more information on how to select the sequence polarity, refer to page
226.
* 2. Numbers 1 to 7 are displayed for to indicate the terminal numbers S1 to
S7.
Factory Settings

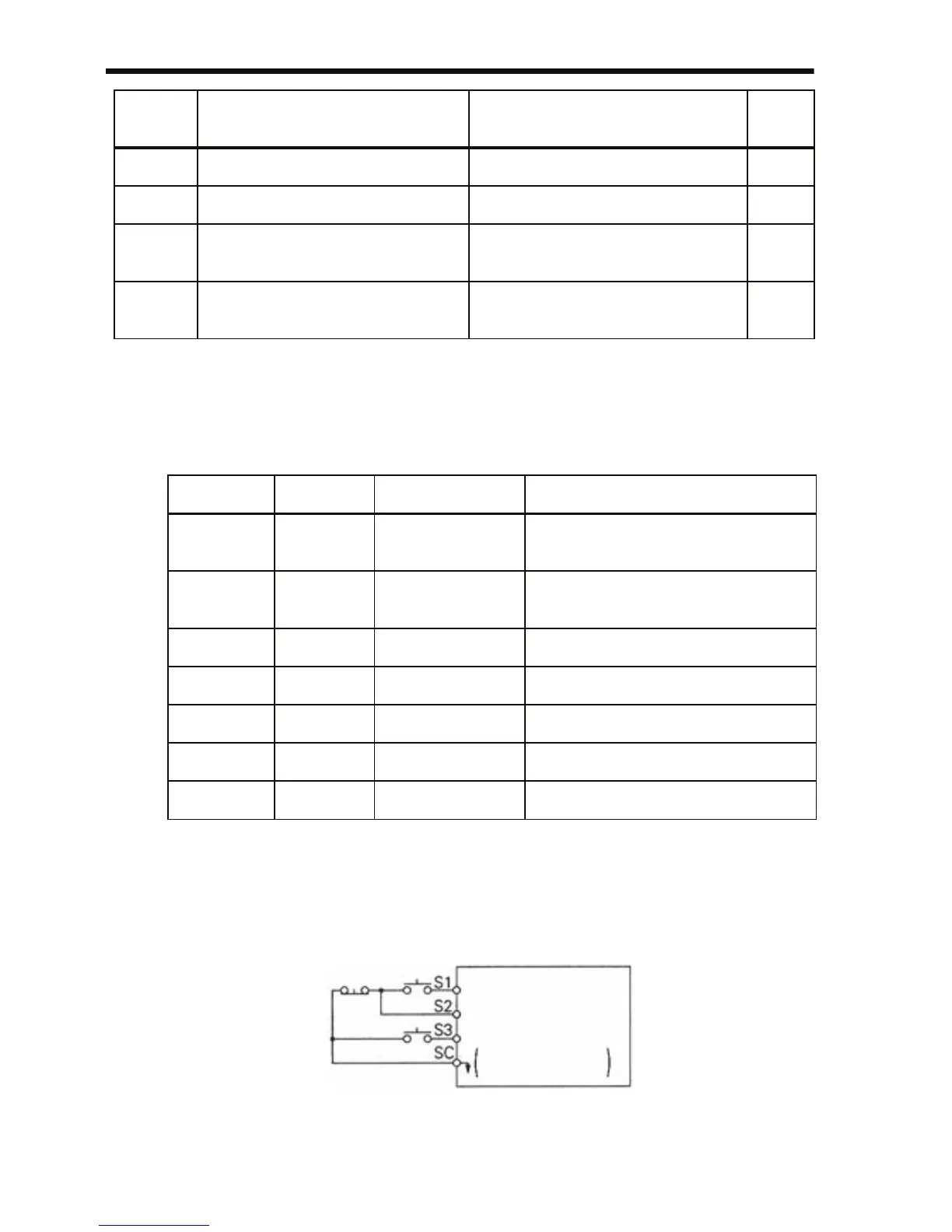

Terminal Functions for 3-wire Sequence Selection
When 0 is set for terminal S3 (n052), terminal S1 is the Run Command,
terminal S2 is the Stop Command, and terminal S3 is the FWD/REV
Run Command.
33 no function -
34 UP/DOWNcommands setting enabled only for n056 114
35 to
36
Do not set. -
37 FWD/REV Run 2 Command
(2-wire sequence 2)
129
No. Terminal Factory Setting Function
n050 S1 1 Forward Run Command
(2-wire sequence)
n051 S2 2 Reverse Run Command
(2-wire sequence)
n052 S3 3 External fault (NO contact input)
n053 S4 5 Fault Reset
n054 S5 6 Multi-step speed reference 1
n055 S6 7 Multi-step speed reference 2
n056 S7 10 Jog Command
Setting Name Description Ref.
page
Run Command
(Run when Closed)
Stop Command
(Stop when Open)
FWD/REV Run Selection
FWD Run When Open
REV Run When Closed
RUN SW
(NO Contact)
STOP SW
(NC Contact)
