Omron VARISPEED V7

118

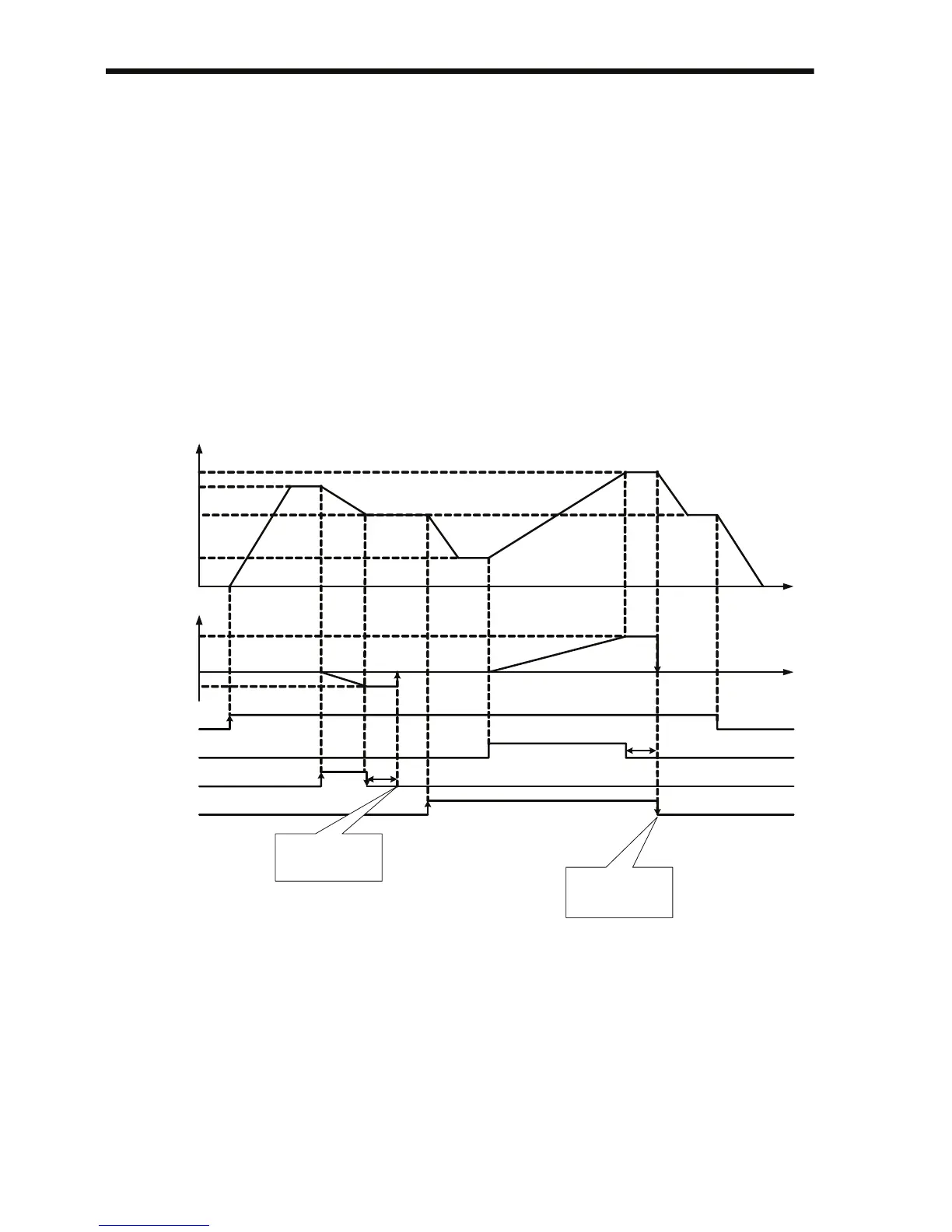

Up/Down Command 2, Examples
Up/Down Command 2 by time
n056 = 36 Up/Down command 2 on S6 / S7
n003 = 1 Run command source is digital input
n004 = 1 Main frequency reference input is n024
n045 = 0 Frequency reference bias is changed by time
n046 = 1 Use Acceleration / Deceleration time 4
n047 = 0 Bias value is held if S6, S7 are both ON or OFF
n100 = 1 Bias value is saved to EEPROM
)
FREF
Frequency reference
is stored
into n024 and Fref
bias is cleared
FOUT is stored
into n024 and Fref
bias is cleared
n024
(35Hz) n 024 ( 25 H z)
5s
n024
(25Hz n 025 =40Hzn 025 (10Hz)
Frequency reference
5s
Time
1
Decel 1
Accel 1
Decel 4
Decel 1
Accel 4
Decel
30
RUN command
UP 2 Command
DOWN2 Command
Multi-step speed
command
-10Hz
FOUT (Hz)
10Hz
Hz
35Hz
40Hz
Fref bias, by
Up2/Down2
(n048)
25Hz
