Omron VARISPEED V7 User Manual

9 Specifications
229

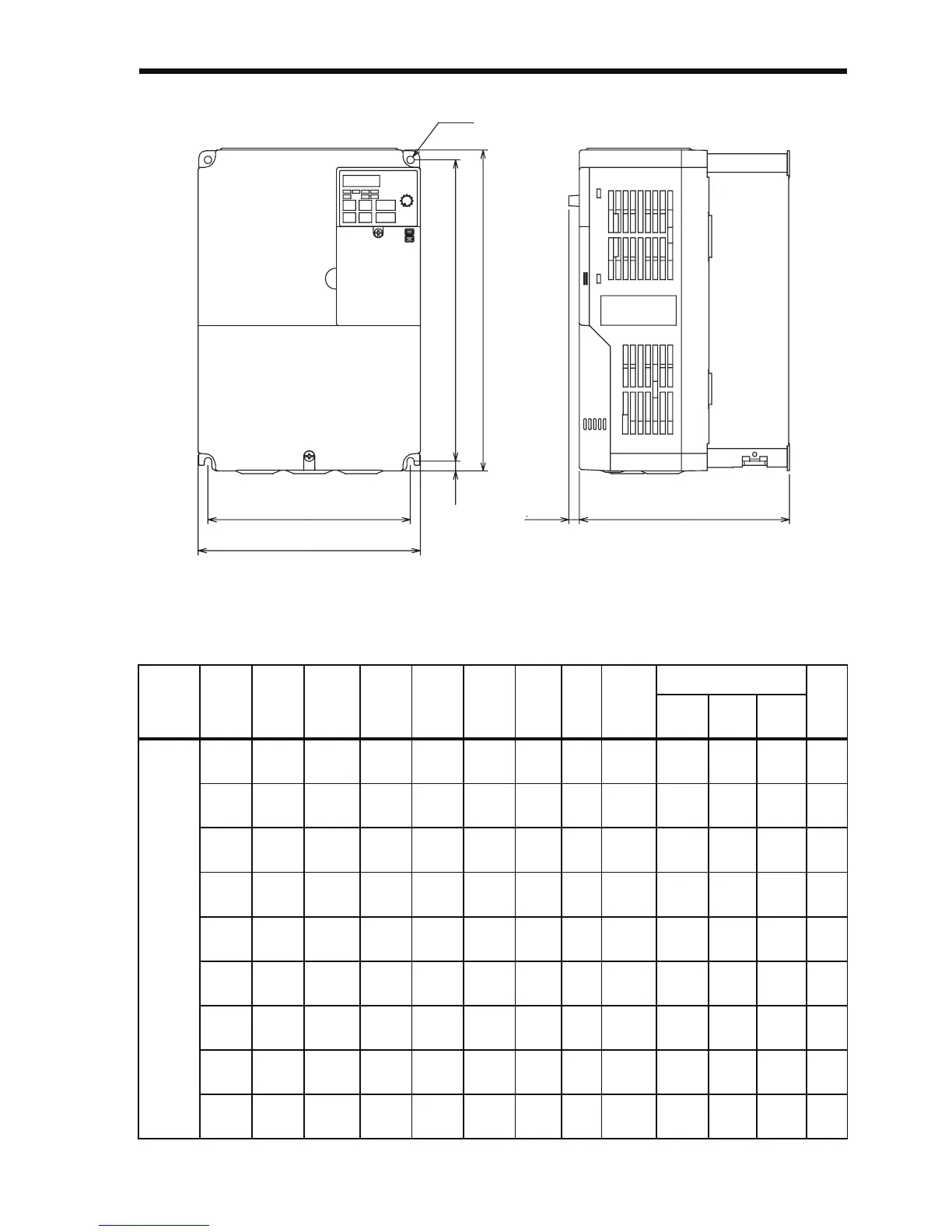

Dimensions in mm (inches)/Mass in kg (lb)/Heat Loss (W)
Voltage
class
Capaci-
ty (kW)
W H D W1 H1 H2 d Mass Heat Loss (W) Fig.
Heat-
sink
Unit Total
200 V
3-phase
0.1 68
(2.68)
128
(5.04)
76
(2.99)
56
(2.20)
118
(4.65)
5
(0.20)
M4 0.6
(1.32)
3.7 9.3 13.0 1
0.25 68
(2.68)
128
(5.04)
76
(2.99)
56
(2.20)
118
(4.65)
5
(0.20)
M4 0.6
(1.32)
7.7 10.3 18.0 1
0.55 68
(2.68)
128
(5.04)
108
(4.25)
56
(2.20)
118
(4.65)
5
(0.20)
M4 0.9
(1.98)
15.8 12.3 28.1 1
1.1 68
(2.68)
128
(5.04)
128
(5.04)
56
(2.20)
118
(4.65)
5
(0.20)
M4 1.1
(2.43)
28.4 16.7 45.1 1
1.5 108
(4.25)
128
(5.04)
131
(5.16)
96
(3.78)
118
(4.65)
5
(0.20)
M4 1.4
(3.09)
53.7 19.1 72.8 2
2.2 108
(4.25)
128
(5.04)
140
(5.51)
96
(3.78)
118
(4.65)
5
(0.20)
M4 1.5
(3.3)
60.4 34.4 94.8 2
4.0 140
(5.51)
128
(5.04)
143
(5.63)
128
(5.04)
118
(4.65)
5
(0.20)
M4 2.1
(4.62)
96.7 52.4 149.1 2
5.5 180 260 170 164 244 8 M5 4.6 170.4 79.4 249.8 3
7.5 180 260 170 164 244 8 M5 4.8 219.2 98.9 318.1 3
4-d
W1 8.5 D
W
H1H2
H
Fig. 3

Omron VARISPEED V7 Specifications

General

Brand	Omron
Model	VARISPEED V7
Category	Inverter
Language	English
