Omron VARISPEED V7 User Manual

6 Programming Features
93

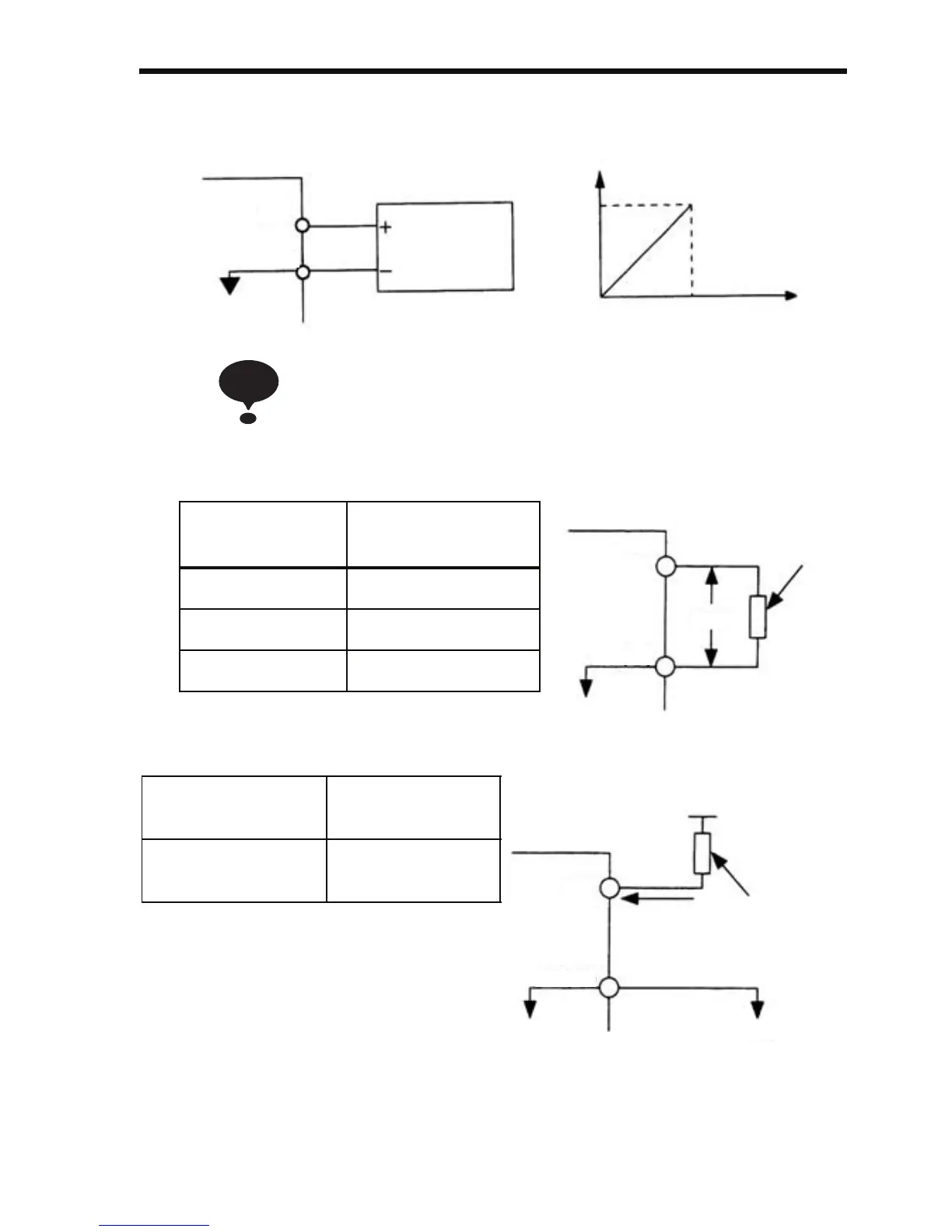

At the factory setting, the pulse of 1440 Hz can be output when output
frequency is 100 %.
Peripheral devices must be connected according to the fol-
lowing load conditions when using pulse monitor output.
The machine might be damaged when the conditions are not
satisfied.
Used as a Sourcing Output
Used as a Sinking Input
Output Voltage
VRL (V)
Load Impedance
(kΩ)
+5 V 1.5 kΩ or more
+8 V 3.5 kΩ or more
+10 V 10 kΩ or more
External Power
Supply (V)
+12 VDC ±5 %
or less
Sinking Current
(mA)
16 mA or less
Pulse Monitor Output
Pulse
Output Frequency
1440 Hz
100 %
AM
AC (0 V)
NOTE
VRL
AM
AC (0 V)
Load
Impedance
Sink Current
AM
AC (0 V)
(0 V)
External Power Supply
Load
Impedance
