Section 2 INSTALLATION & CONNECTION
Section 2
Amplifier Unit
29
ZFV
User’s Manual

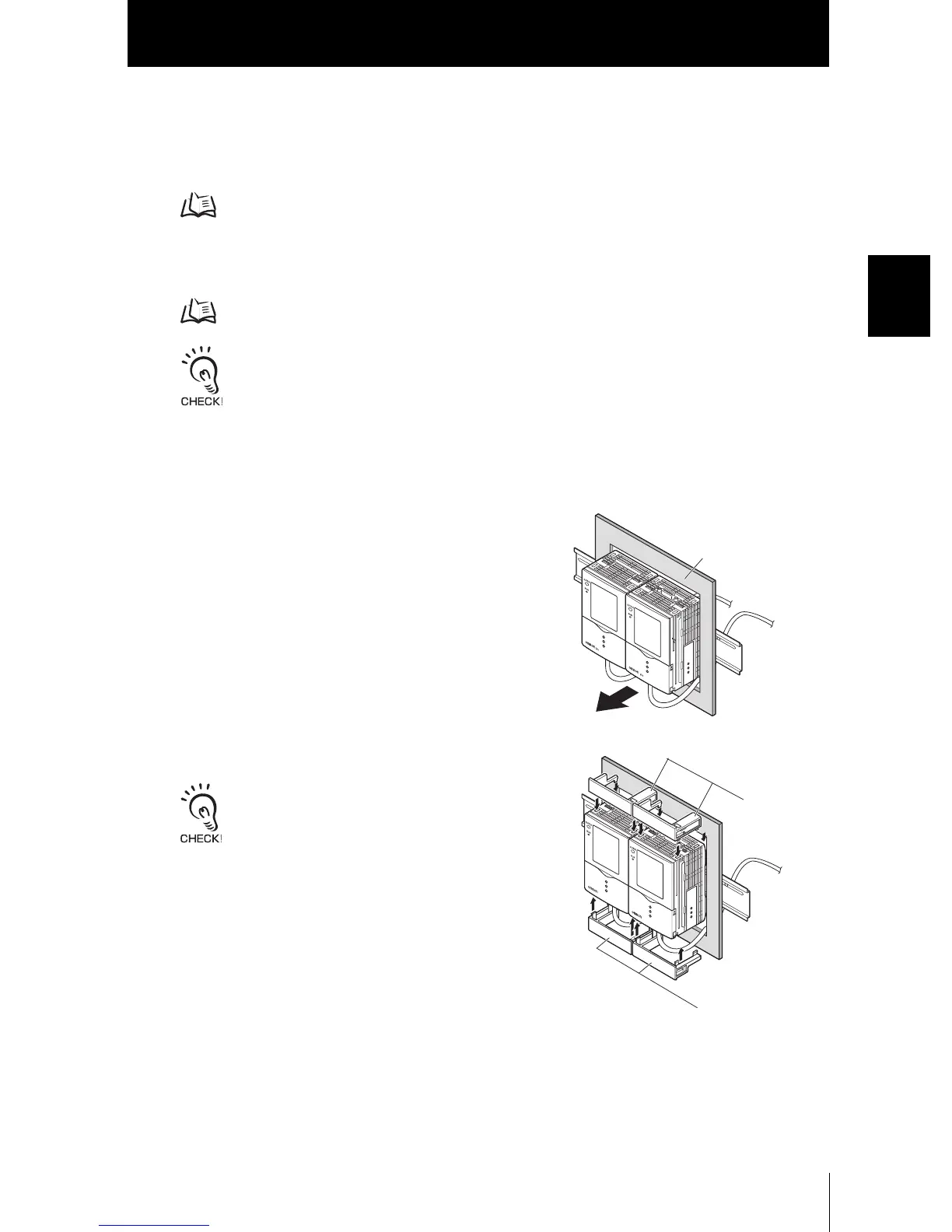

■ Mounting on a panel
The Panel Mount Adapters (sold separately ZS-XPM1/XPM2) can be used to mount
the Amplifier Unit on a panel.
Panel Mount Adapters p.100
1. Install the Amplifier Unit on the DIN track.
p.27
2. Push out the Amplifier Unit from the rear of
the panel towards the front.
3. Install the small Mount Adapters on the four
holes on the Amplifier Unit.
When mounting on a panel, be sure to install the DIN track on the rear side of the Amplifier Unit for
support.
Panel
Panel
Mount
Adapter
Panel Mount Adapter
Install the small Mount Adapters on all gang-mounted
Amplifier Units.
