4.3. Confirmation of communication status
4.3.1. Confirmation of EtherCAT communication status

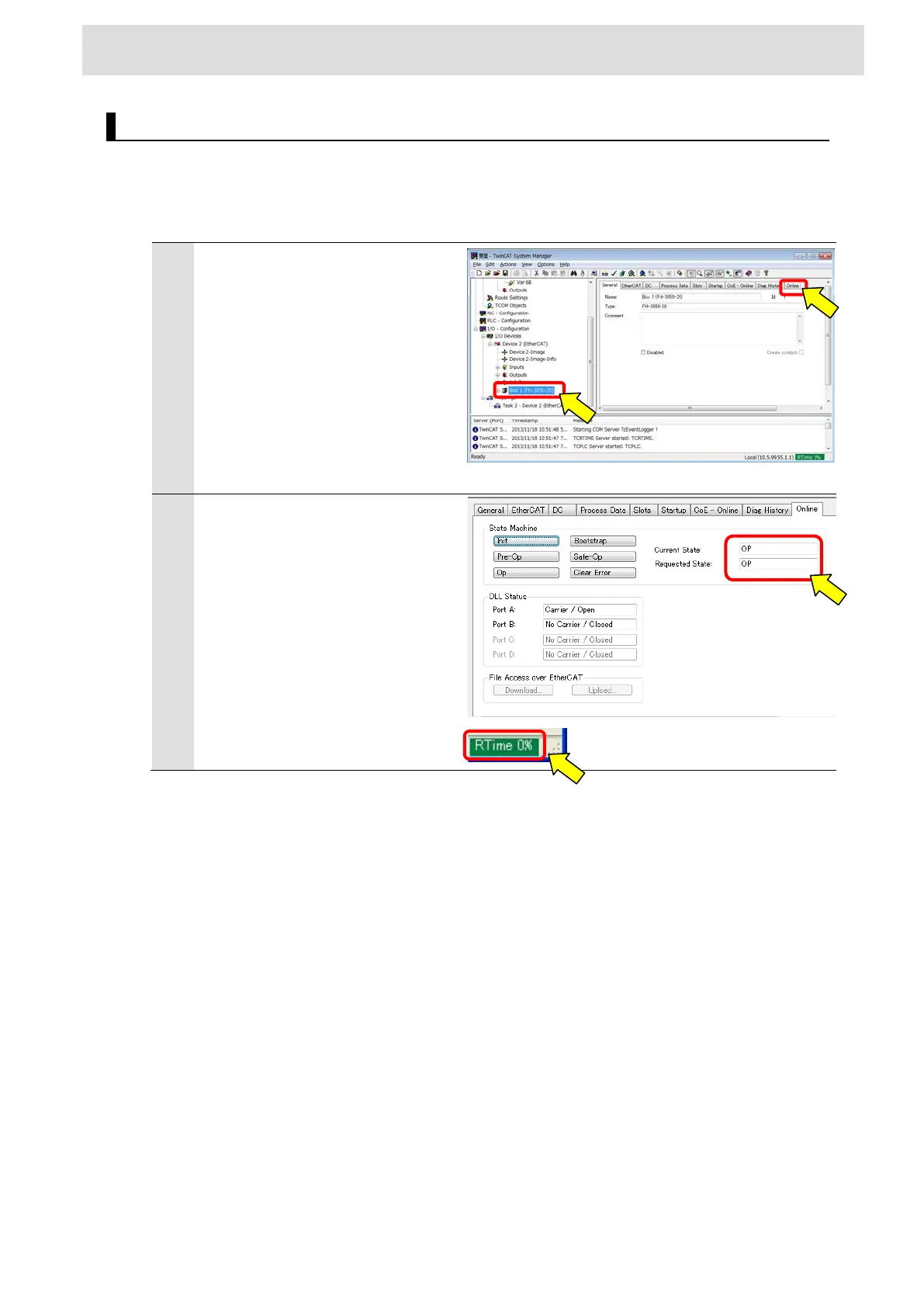

You can confirm the EtherCAT communication status using TwinCAT.
1
Specify the Box to connect, and
then select the [Online] tab.
2
If there is not problems of the
EtherCAT communication
s, the
display of
[Current State:]
[Requested State:] will be "OP".
Mode display at the bottom right of
the scr
een will change to
"RTime ...".
