OMS LINEA ESSE S.T.01/3S ED.0 REV.14 03/2017
67

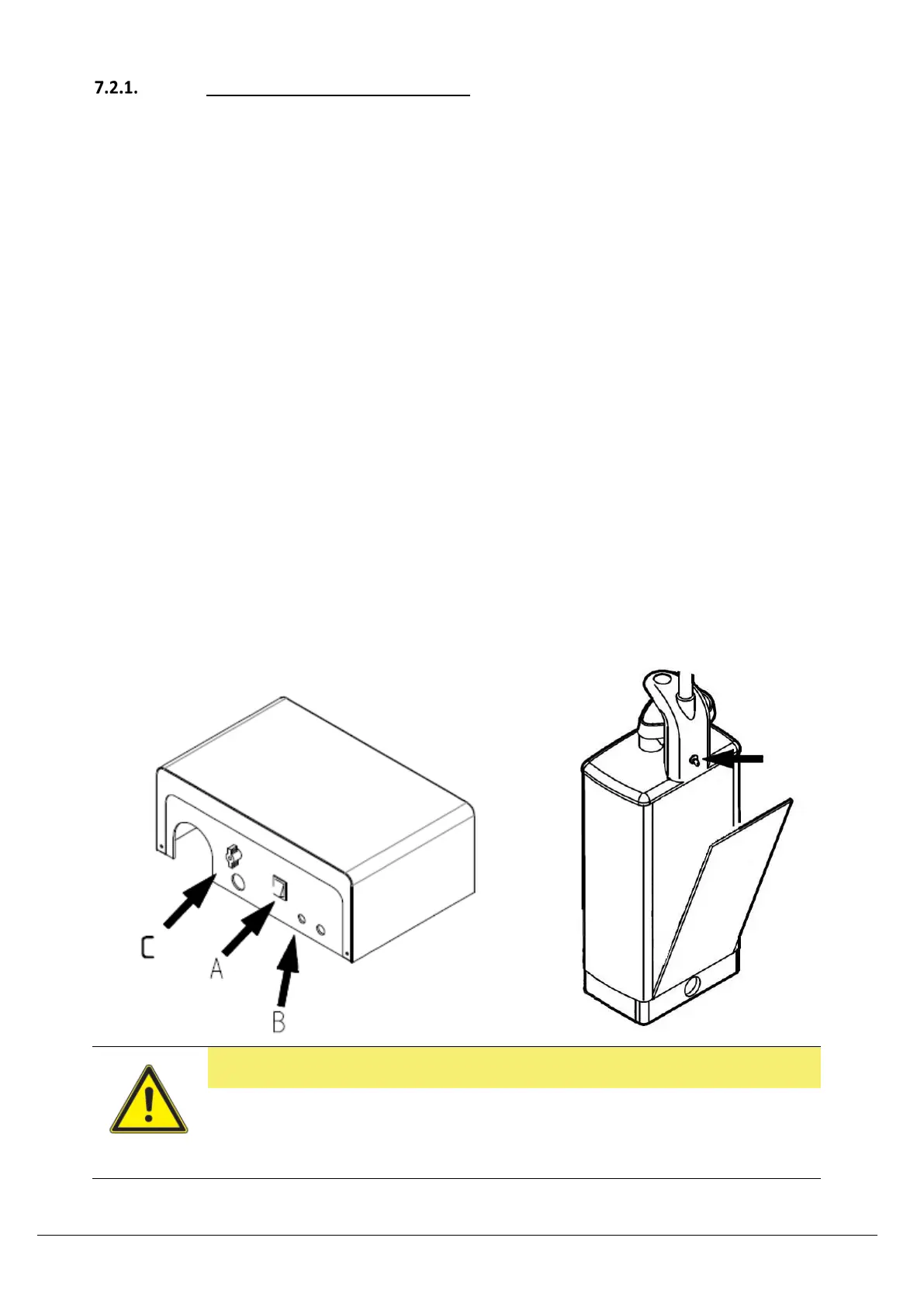

ESSE PLUS WITH FLOOR CUSPISOR
1. Remove the equipment from its packaging;
2. Place the column close the chair, fix both together following the installation plan;
3. Adjust the base of the chair and use the sprit level to make to ensure the chair is perfectly horizontal;
4. Connect the patient chair to the cuspidor make sure that there’s no “gaps” to avoid vibration, fix the
chair to the floor with the two expansion bolts supplied;
5. Connect cables and place back the cover that has been previously removed;
6. Install the upholstery seat and fix it with the 4 screws supplied;
7. Take off the cuspidor door and make the plumber connections;
8. If available install the monitor, and connect electrically together with its power supply;
9. Install the operating lamp and connect it to the cuspidor PCB.
10. Connect the grounding cables to the screw identified by the grounding symbol.
11. Following the electrical diagrams to connect the suction pump (see the wiring diagram),
12. Connect the water and air pipes, as well as electrical system. Inlet power must be connected only to
its connector inside the floor box, while all the other connections can be done either inside junction
box or inside cuspidor unit.
ATTENZIONE
Make sure that the water tube is far away from the lift motor.
