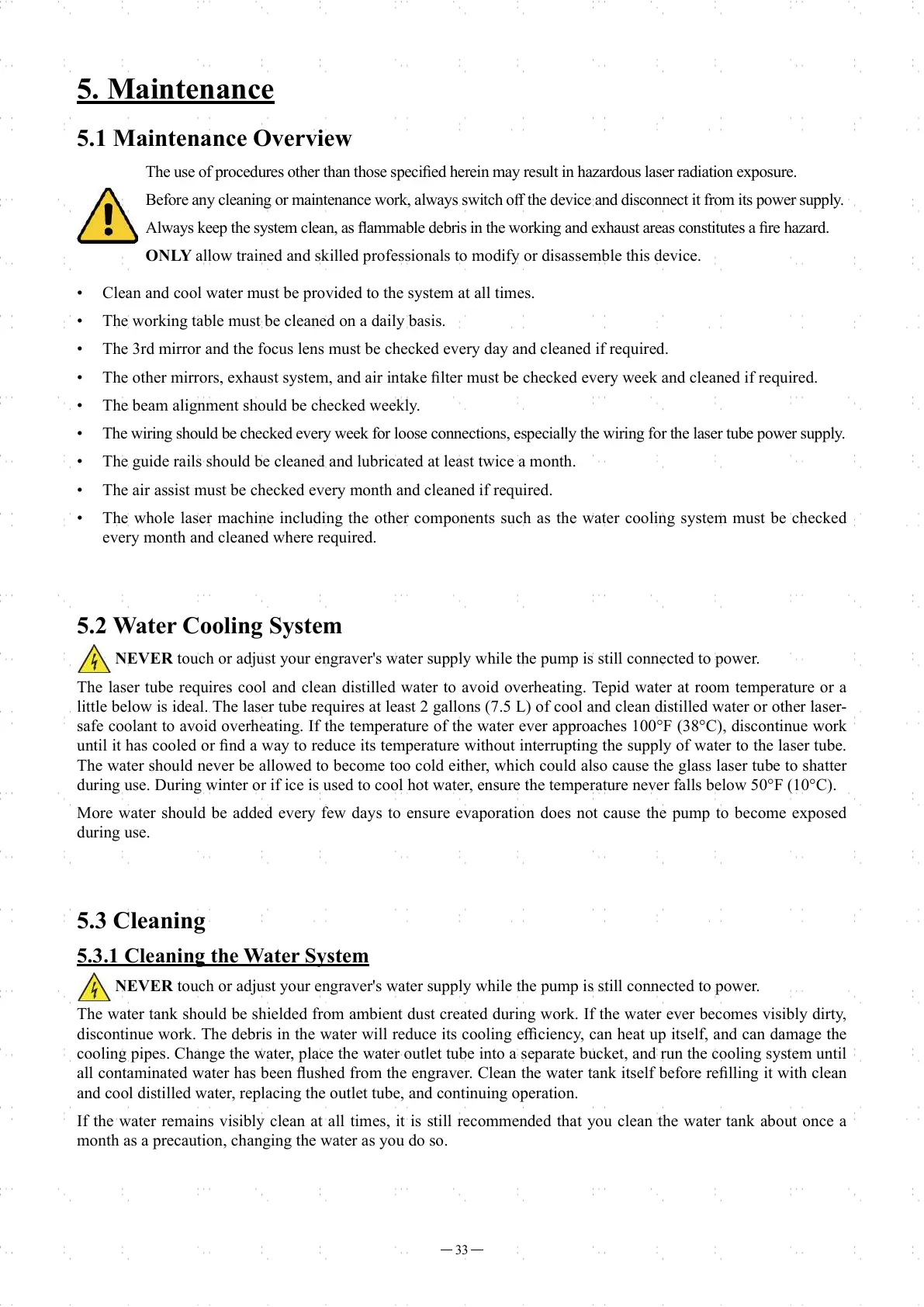

5.1 Maintenance Overview
The use of procedures other than those specifi ed herein may result in hazardous laser radiation exposure.
Before any cleaning or maintenance work, always switch off the device and disconnect it from its power supply.
Always keep the system clean, as fl ammable debris in the working and exhaust areas constitutes a fi re hazard.
ONLY allow trained and skilled professionals to modify or disassemble this device.
• Clean and cool water must be provided to the system at all times.
• The working table must be cleaned on a daily basis.
• The 3rd mirror and the focus lens must be checked every day and cleaned if required.
• The other mirrors, exhaust system, and air intake fi lter must be checked every week and cleaned if required.
• The beam alignment should be checked weekly.
• The wiring should be checked every week for loose connections, especially the wiring for the laser tube power supply.
• The guide rails should be cleaned and lubricated at least twice a month.
• The air assist must be checked every month and cleaned if required.
• The whole laser machine including the other components such as the water cooling system must be checked
every month and cleaned where required.
5.2 Water Cooling System
NEVER touch or adjust your engraver's water supply while the pump is still connected to power.
The laser tube requires cool and clean distilled water to avoid overheating. Tepid water at room temperature or a
little below is ideal. The laser tube requires at least 2 gallons (7.5 L) of cool and clean distilled water or other laser-
safe coolant to avoid overheating. If the temperature of the water ever approaches 100°F (38°C), discontinue work
until it has cooled or fi nd a way to reduce its temperature without interrupting the supply of water to the laser tube.
The water should never be allowed to become too cold either, which could also cause the glass laser tube to shatter
during use. During winter or if ice is used to cool hot water, ensure the temperature never falls below 50°F (10°C).
More water should be added every few days to ensure evaporation does not cause the pump to become exposed
during use.
5.3 Cleaning
5.3.1 Cleaning the Water System
NEVER touch or adjust your engraver's water supply while the pump is still connected to power.
The water tank should be shielded from ambient dust created during work. If the water ever becomes visibly dirty,
discontinue work. The debris in the water will reduce its cooling effi ciency, can heat up itself, and can damage the
cooling pipes. Change the water, place the water outlet tube into a separate bucket, and run the cooling system until
all contaminated water has been fl ushed from the engraver. Clean the water tank itself before refi lling it with clean
and cool distilled water, replacing the outlet tube, and continuing operation.
If the water remains visibly clean at all times, it is still recommended that you clean the water tank about once a
month as a precaution, changing the water as you do so.
